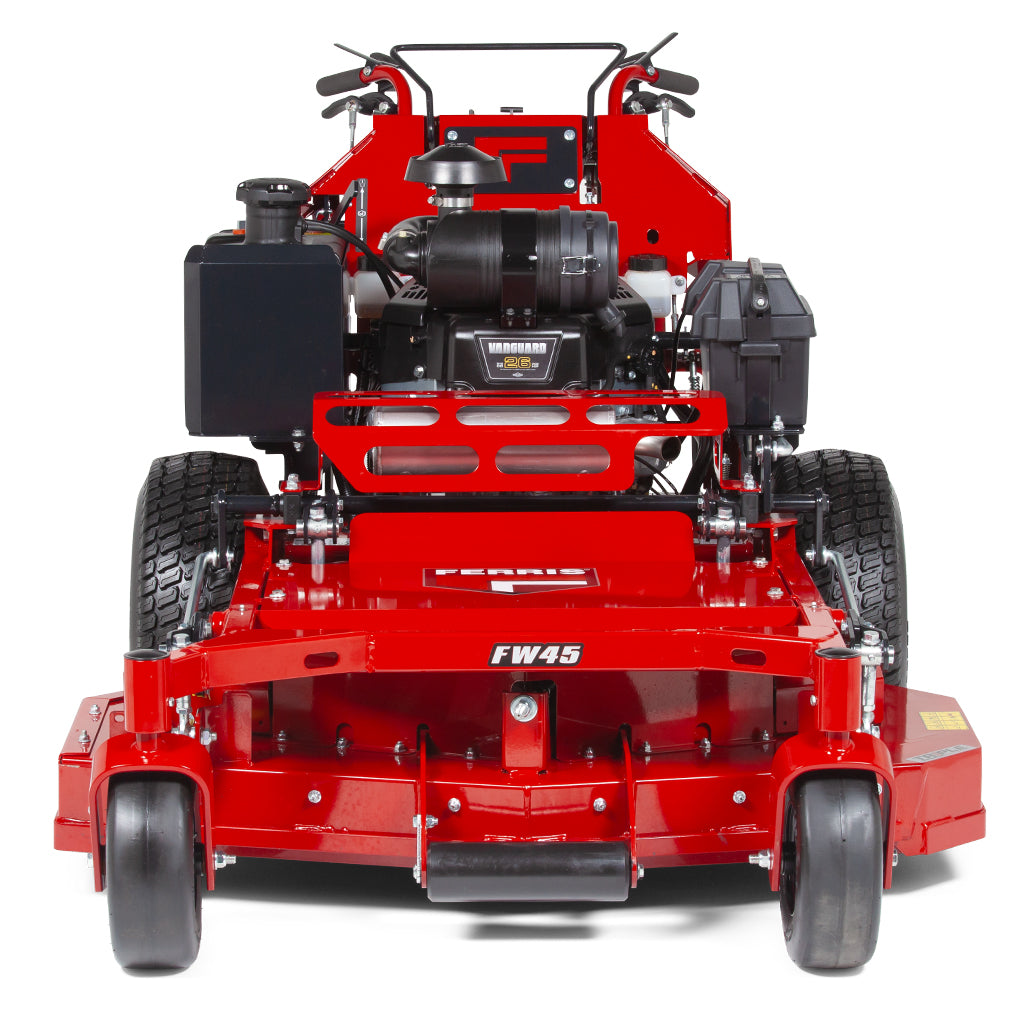

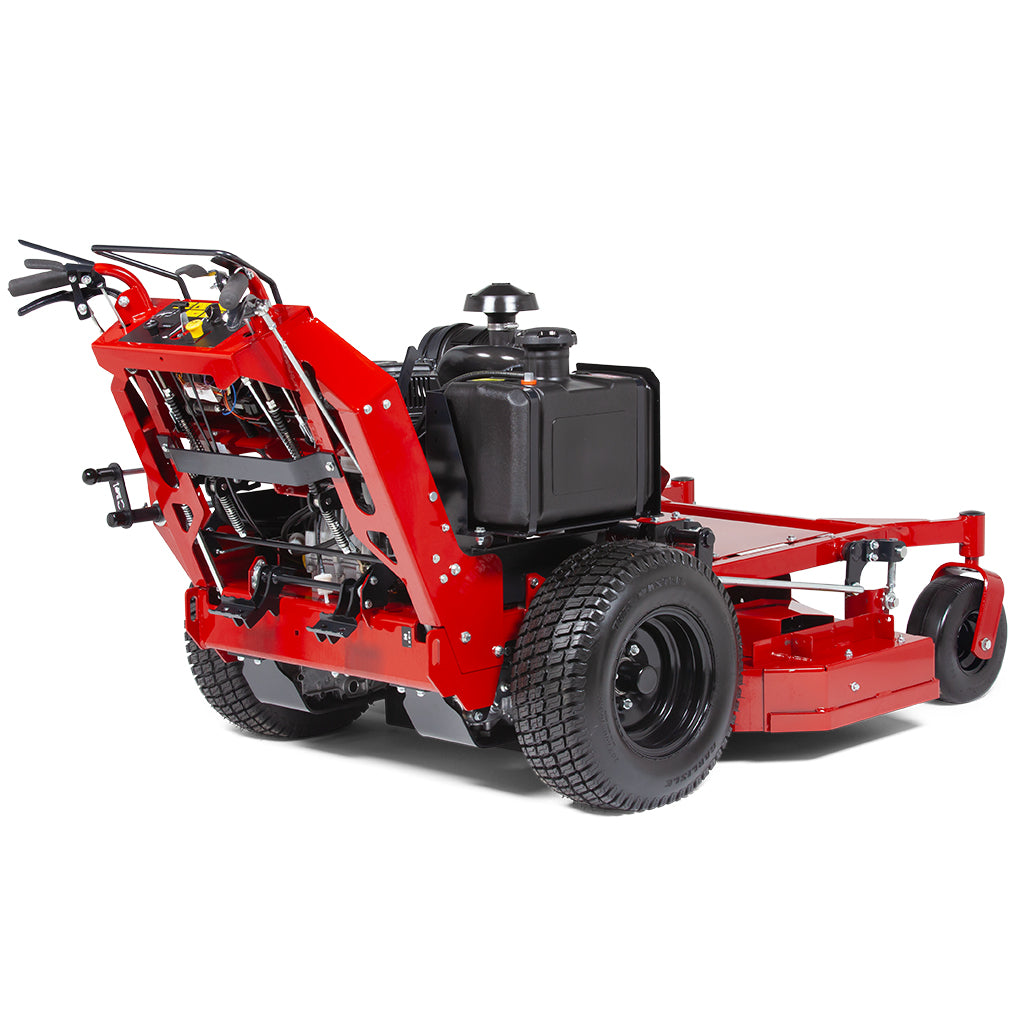

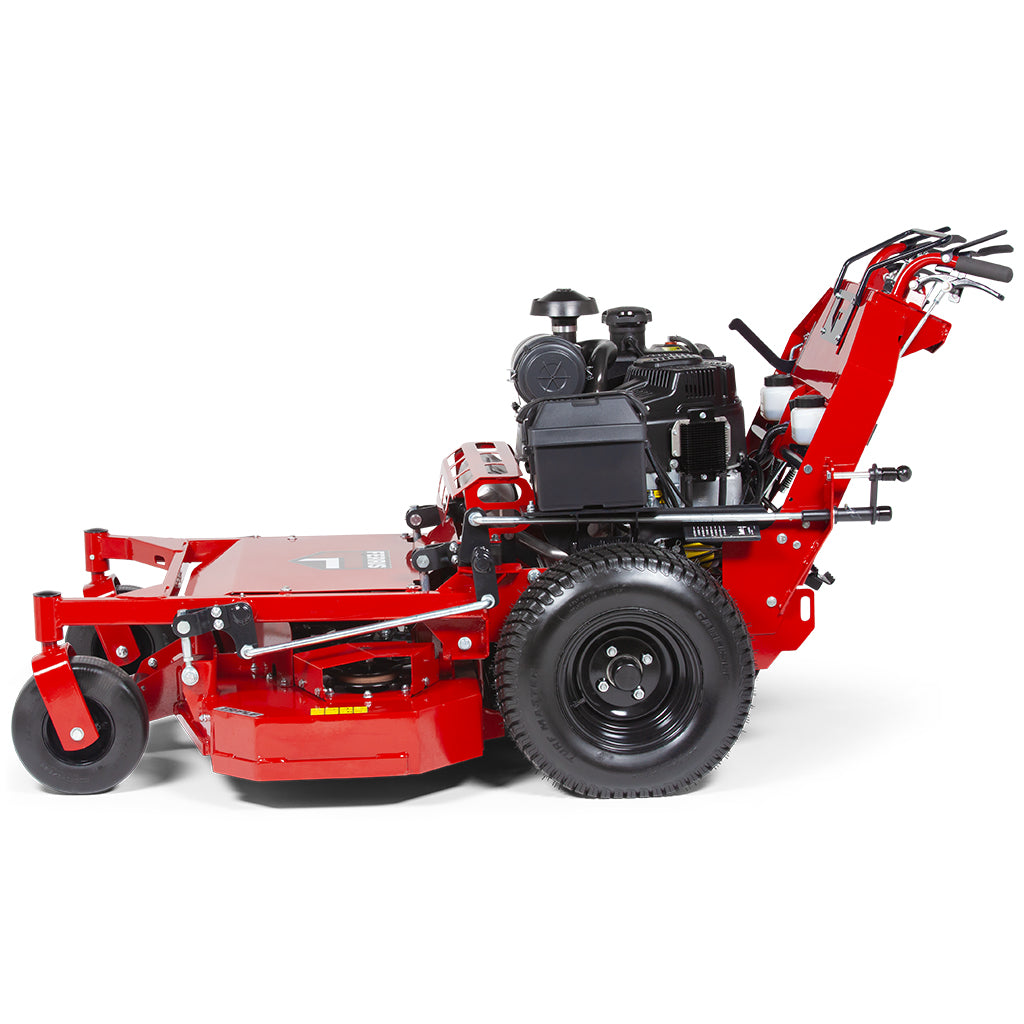

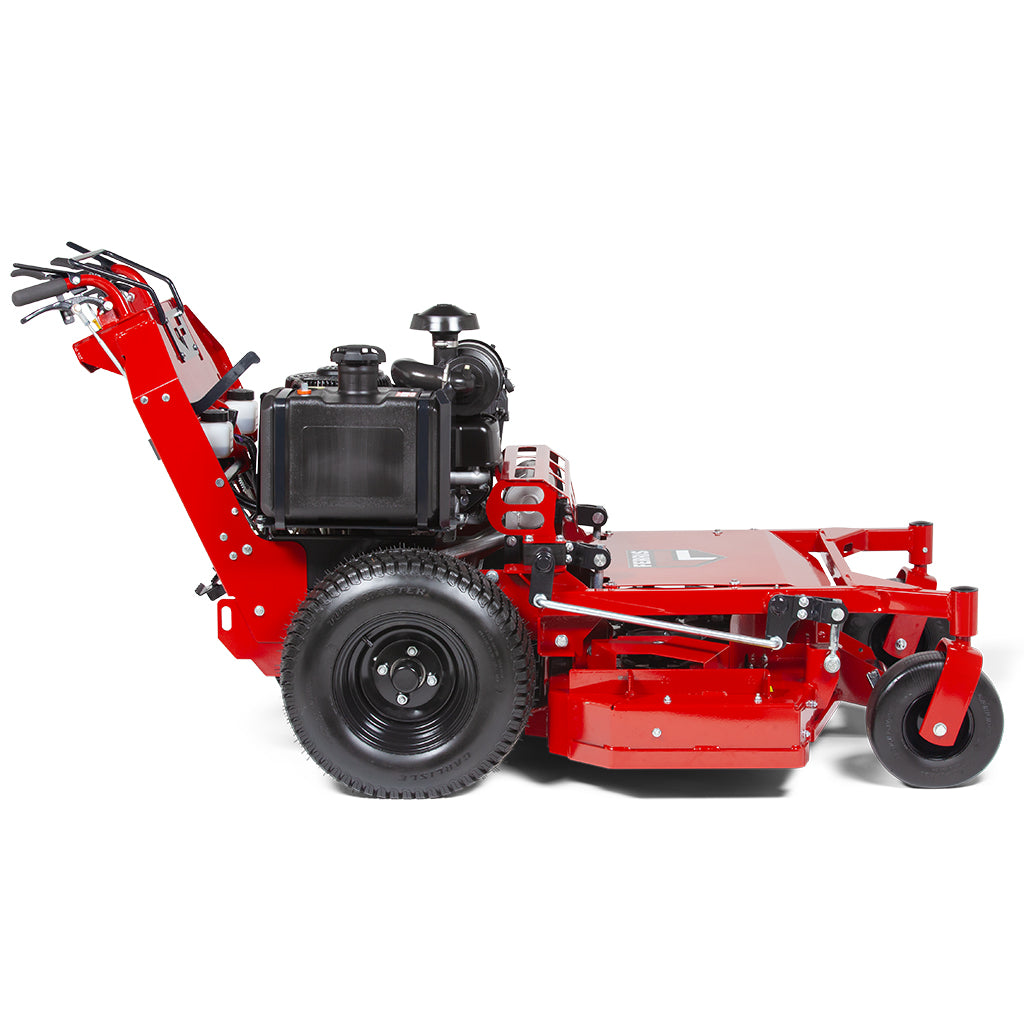

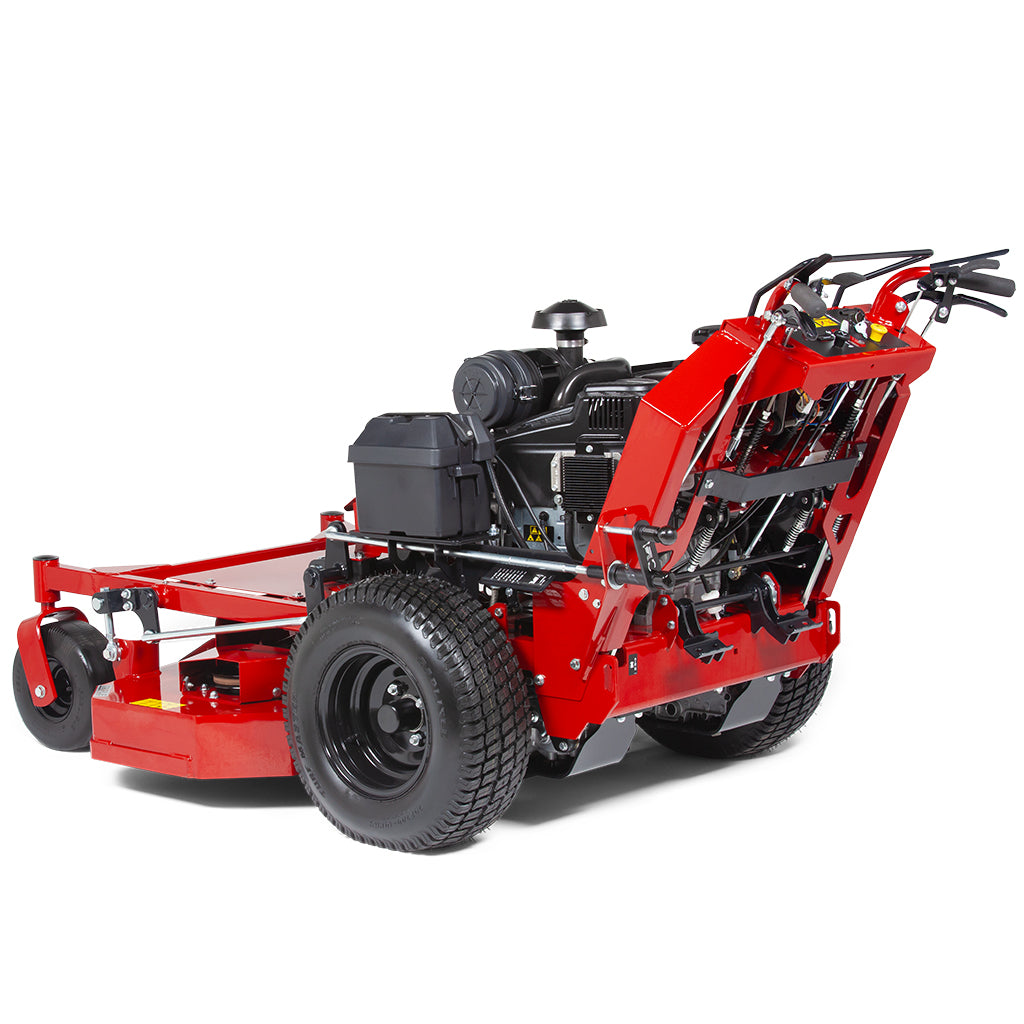

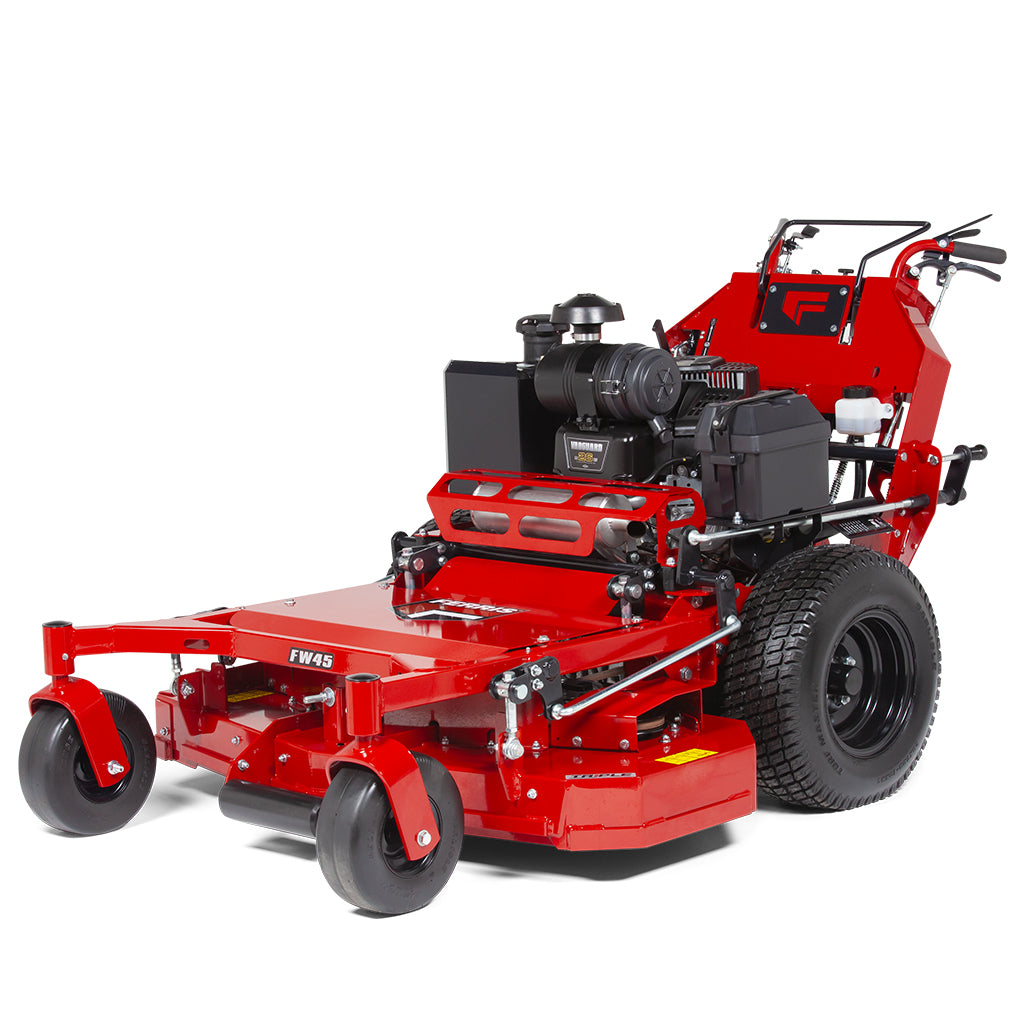

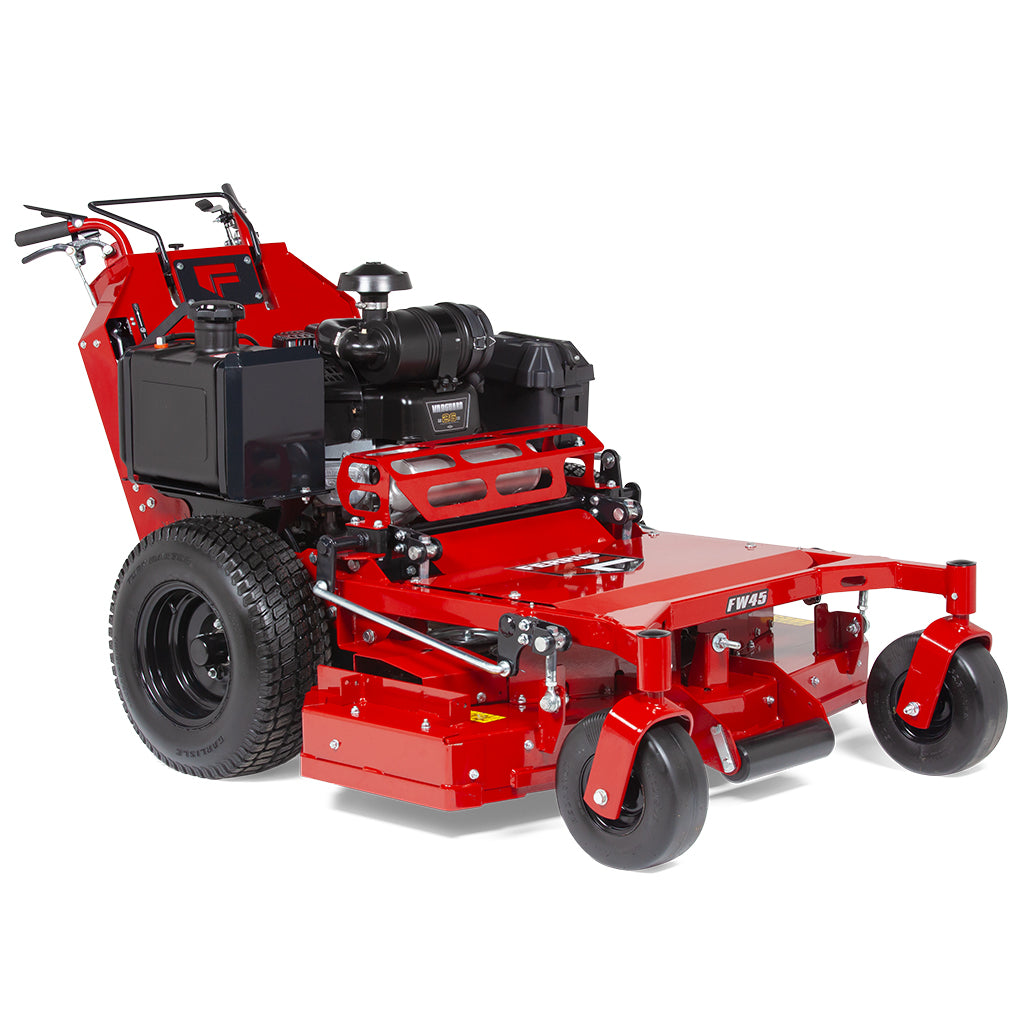

FERRIS FW45 Walk Behind Mower
FERRIS FW45 Walk Behind Mower
SKU:FM-FW-5901988
Low stock: 1 left
The FW45 dual hydrostatic walk behind mower was built from the ground up to meet the demands of professional mowing crews. Its super tough built construction offers a low centre point of gravity and the wide wheel stance results in unparalleled traction and stability on hillsides without the need of twin-wheels.

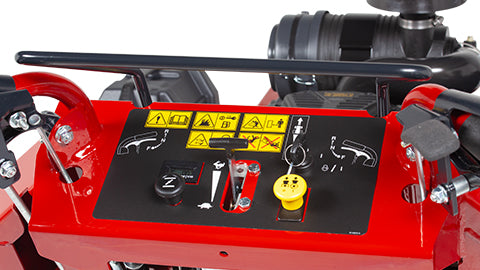

The user friendly design features smooth operation by means of a cruise control bar, independent speed reduction levers, thumb controlled speed override and foot operated return-to neutral controls. The floating deck design in combination with a wide nose wheel enables the deck to react to any inconsistencies in the terrain. Ferris walk-behind mowers are built to withstand the rigours of all day commercial use.
Features
Features
Specifications
Specifications

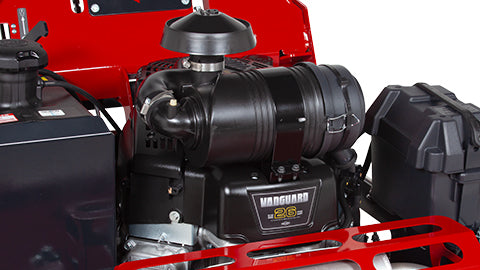

- Engine Make: Vanguard®
- Engine Model: MOD49, 810 Series
- Fuel Type: Petrol
- Fuel System: Carburettor
- Horsepower (HP)*: 26.0
- Gross kW*: 19.4
- Cylinders: 2 Cylinders V-Twin
- Displacement (cc): 810
- Cooling: Air-cooled
- Starting: Electric
- Fuel Capacity (l): 19
- Cutting Width (cm / inch): 122 / 48
- Deck Configuration: Configurable deck including: rear discharge, side discharge, mulching and mulching blades
- Height of Cut (cm): 3,8 - 12,7
- Deck Construction: 3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
- Mower Spindles: Cast-iron 201 mm; 25,4 mm shaft

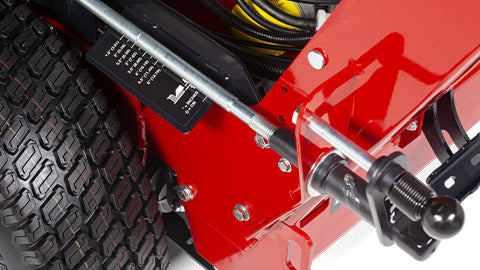

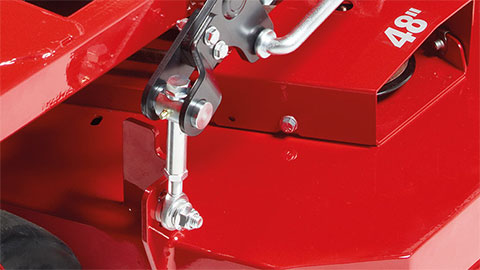

- Deck Lift System: Central height adjustment with single hand wheel
- PTO Clutch: Warner CMS Clutch-Brake (271 Nm)
- PTO Engagement: Electric
- Transmission: Independent Hydro-Gear® ZT-3100® transaxles
- Drive Axles: Ø25,4 mm Tapered with 4-bolt wheel hub
- Drive Tyres (inch): 20 x 7.00 - 10 (4 ply) Pneumatic tyre w. turf tread
- Caster Tyres (inch): 11 x 4.00 - 5 (4 ply) Flat-free tyre w. smooth tread
- Speed-fwd. (km/h): 0 - 11
- Speed-rev. (km/h): 0 - 4,5
- Overall Length (cm): 200
- Overall Width (cm): 125
- Dry Weight (kg): 380
- Roll-Over Protection Structure: N.A.
- Instrumentation: Speed setting indicator, hour metre

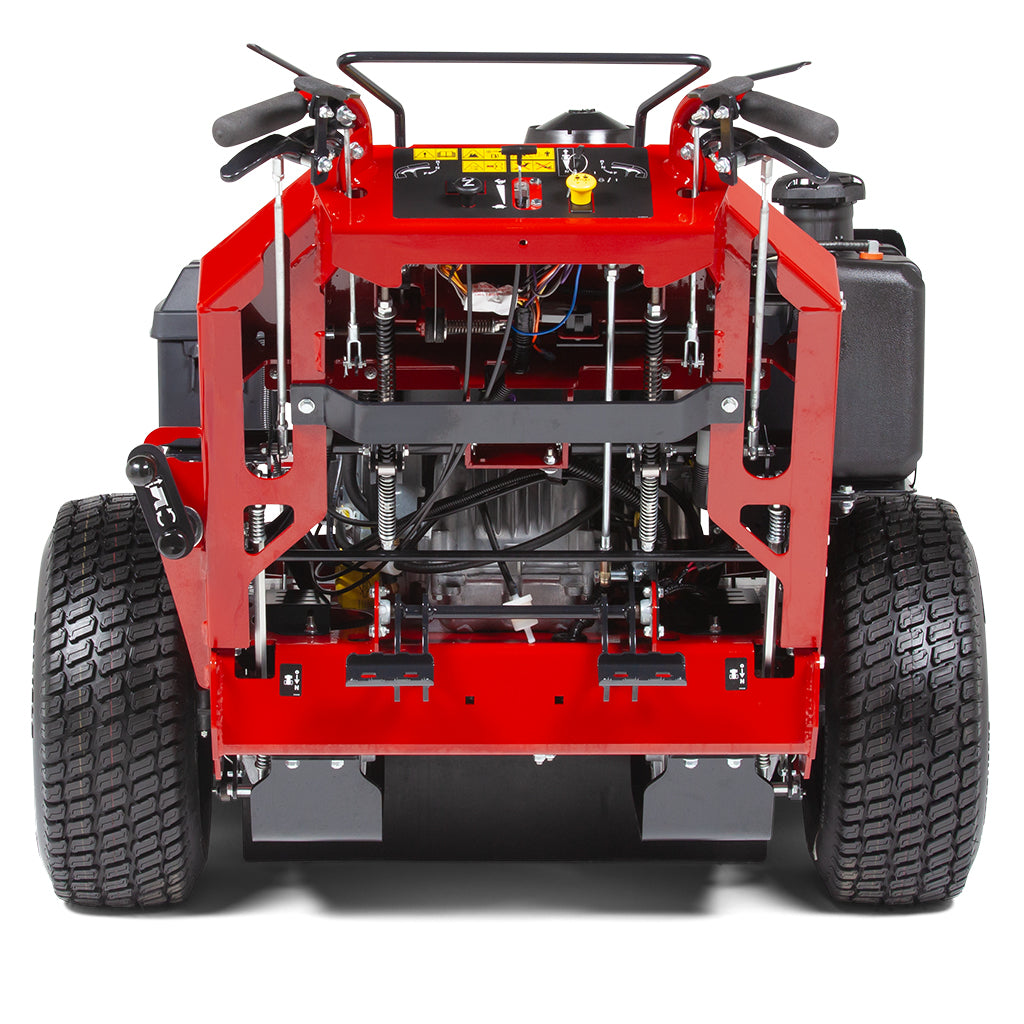

- Controls / Safety Circuit: Independent steering levers with forward speed cruise control bar, independent speed override levers, Automatic PTO Stop, Operator presence, neutral and Parking brake safety circuit, Foot-activated neutral
- Parking Brake: Integrated transaxle brake
- Warranty (Balance of Machine) ‡ 2-Years (24 months) unlimited hours
- Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡ 90 Days
- Warranty (Deck Drive Belt) ‡ 1-Year (12 months) or 100 hours, whichever occurs first
- Warranty (Engine) ‡ 3-Year Manufacturer’s Limited Warranty
