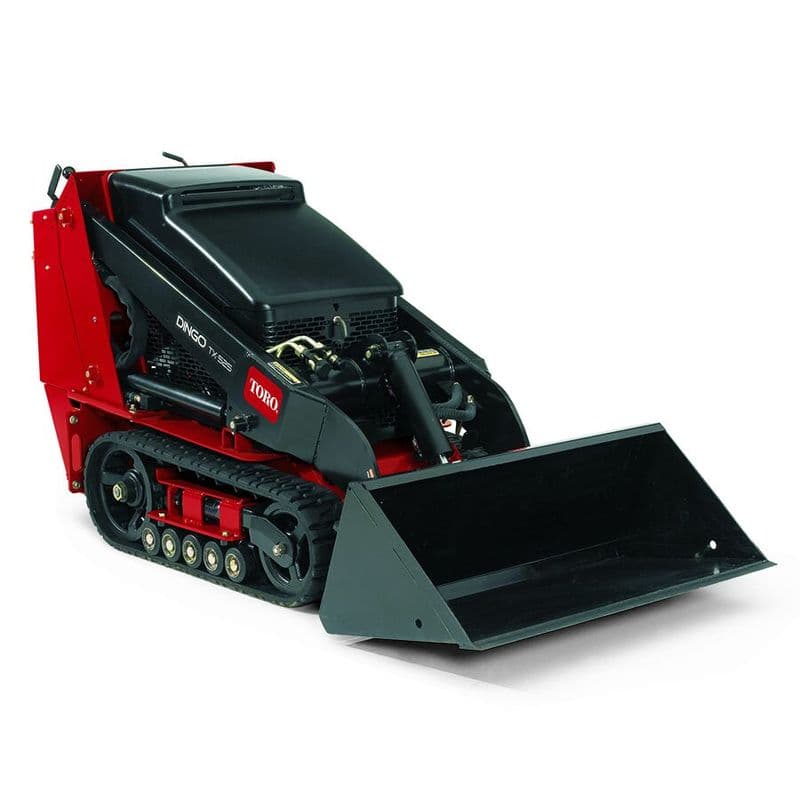

TORO TX525 Narrow Track Compact Diesel Utility Loader

TORO TX525 Narrow Track Compact Diesel Utility Loader

£18,500.00 + VAT (£22,200.00)
+ VAT (£0.00) £18,500.00 + VAT (£22,200.00)
Special Offer Sold out

22323

Available to Order (2-7 day delay)

? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

The diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 52.2 L/min and pumping 17.9 kW (24 hp) to the attachments, yet has a ground pressure as low as 0.36 bar (5.2 psi). And because they’re part of the full-line family, these diesels are compatible with all of Toro’s compact utility loader attachments.
  • Patented TX control system
  • Compact footprint fits through standard 36" gates
  • Liquid-Cooled Kubota diesel engine

Features

Specifications

  • Engine: Kubota D902
  • Horse Power: 25HP
  • Fuel Tank Capacity: 23 Litres
  • Ground Speed: 4.5 mph forward / 2 mph reverse
  • Hydraulic Tank Capacity: 40 litres
  • Hydraulic Flow: 43.2 L/min
  • Hydraulic System Pressure: 207 bar (3,000 psi)
  • Operating Capacity: 251 kg
  • Length Without Bucket: 179.6 cm
  • Width: 86 cm
  • Height: 117.1 cm
  • Weight: 717 Kg
  • Ground Clearance: 11.7 cm
  • Hinge Pin Height: 167.1 cm with standard bucket
  • Tip Capacity: 716.7 kg
  • Track Type: 15 cm width Kevlar reinforced rubber
