AS-MOTOR

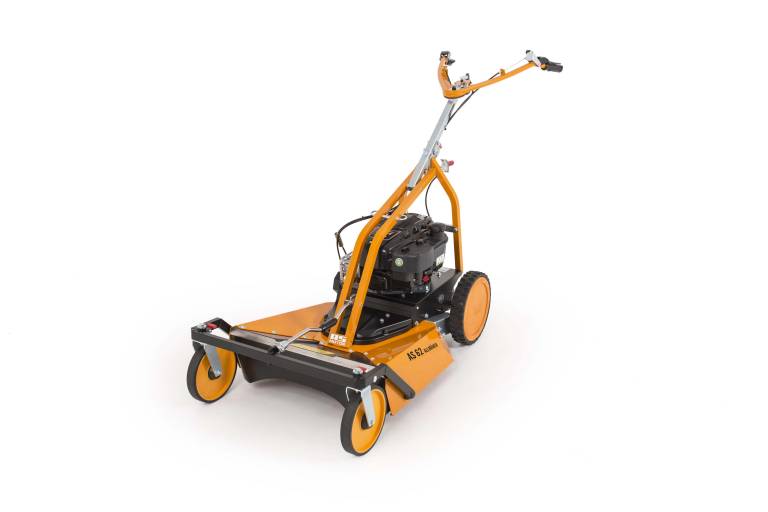

AS-MOTOR AS 62 4T B&S Allmaher

AS-MOTOR AS 62 4T B&S Allmaher

£2,700.00 + VAT (£3,240.00)
+ VAT (£0.00) £2,700.00 + VAT (£3,240.00)
Special Offer Sold out
Shipping calculated at checkout.

G60000202

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

Oversized Shipping Rates Apply

View our shipping policy here

Powerful and agile – AS 62 4T B&S

Designed to mow and mulch high grass up to 90 cm high, the AS 62 4T B&S excels on level terrain with many obstacles, such as meadow orchards. Thanks to freewheel units on both sides and movable front wheels the Allmäher is extremely agile. Ideal for private customers as well as service providers and municipalities.

Reliable 4-stroke engine

Equipped with a Briggs & Stratton 850 E-Series I/C engine, the AS 62 4T B&S performs its work reliably. The engine delivers 5.7 hp with a displacement of 190 cm³. The engine shaft and blade shaft are separated by the blade clutch, protecting the engine should the blade collide with rocks or roots. The high cutting force results from a engine rpm to blade gear reduction of 1.6:1.

Cross-blade system and variator drive

Equipped with a cross-blade system the AS 62 4T B&S reliably cuts growth ranging from 50-100 mm high. Cutting height is adjusted for each axle, variable to five levels in the front and rear. The operator can also select a drive speed between 1.9 and 4 km/h. The two freewheel units in wheel drive and the moving front wheels enable comfortable steering, turning and maneuvering around obstacles, even while driving. A conically tapered mowing deck ensures a uniform material flow.

Comfort bar and easy transport

The laterally adjustable V-handlebar comes factory-standard with VibrationProtect, a technology that reduces hand-arm vibration to a minimum. The bar can be easily and conveniently adjusted for height. The AS 62 4T B&S can be “folded together” for easy transport in a passenger vehicle with no need for a trailer.

Features

Mow and mulch in one step

The cross-blade system of the AS 63 Allmäher easily cuts and shreds high growth with an impressive cutting performance and excellent mulching result.

High cutting capacity

1:1.6 engine-blade reduction for high cutting capacity in dense growth.

Engine protection

Separate engine and blade shaft protects engine.

Conical mower deck

Conical mower deck generates an airflow that uniformly whirls the cuttings in the mulching unit, delivering excellent cutting results.

Specifications

cutting width: 61 cm

maximum grass height: 90 cm

engine manufacturer: B&S

engine designation: 850E I/C

displacement: 190 cm³

maximum power: 4,1/5,5 kW (hp)

rated power: 3,7/5,1 kW (hp)

rated speed: 3600 rpm

blade clutch: Y

rear discharge: Y

closed mowing deck: Y

cross-blade: Y

cutting height: 50 - 100 mm

drive: mechanical

number of gears: Vario

max. speed: 3,8 km/h

tank capacity: 1,2 l

dimension L/W/H: 191x70x99 cm

weight: 67 kg
