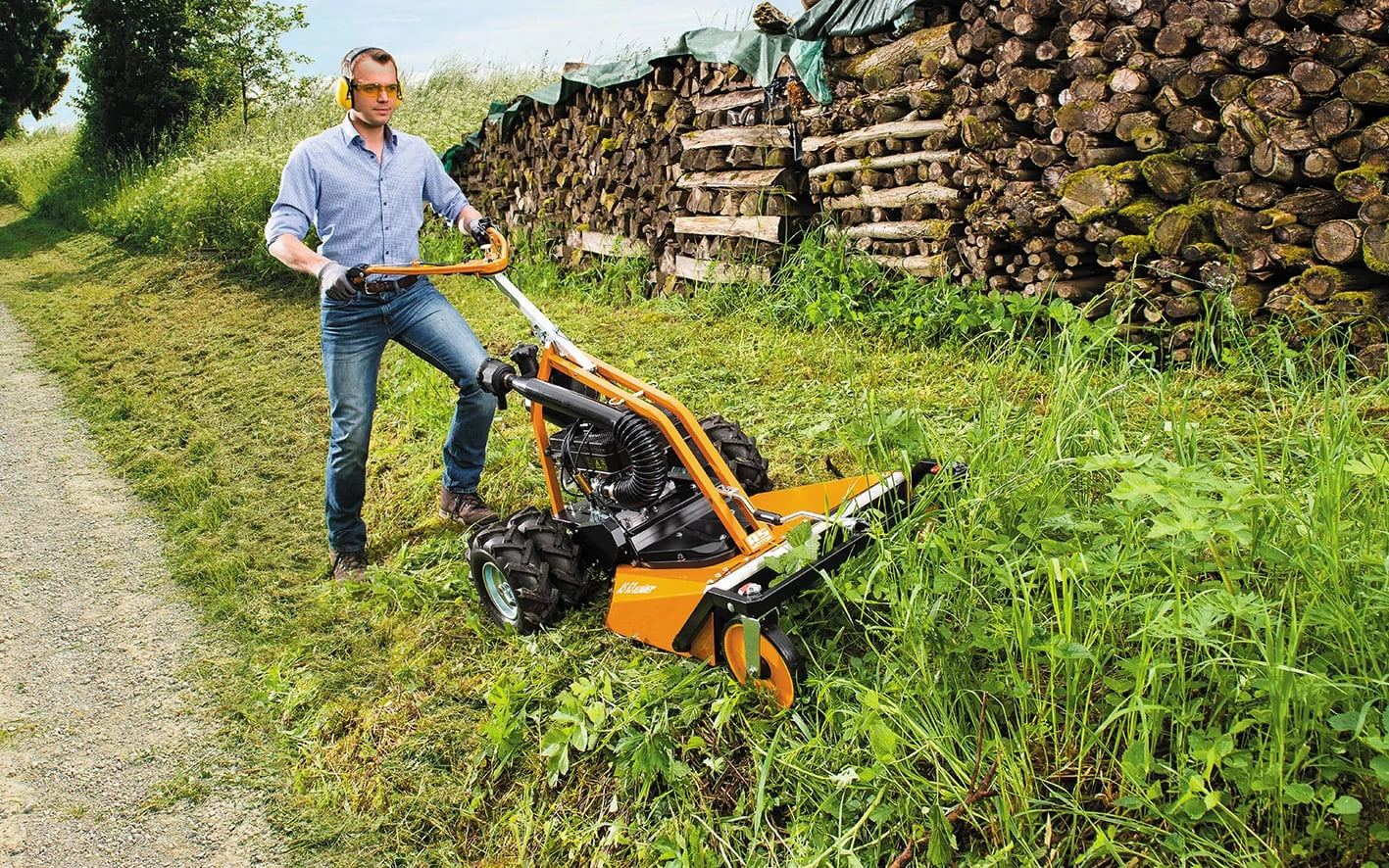

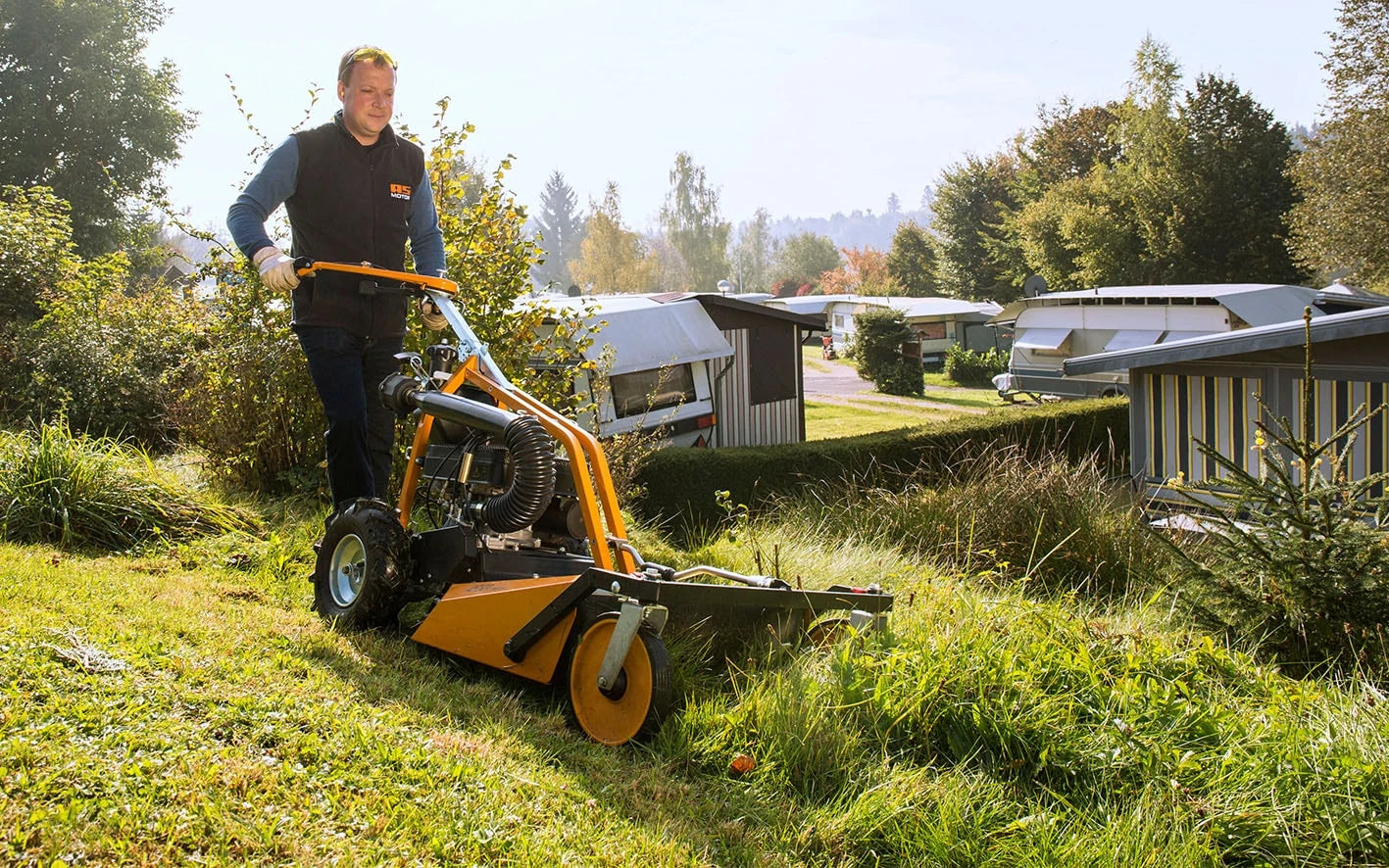

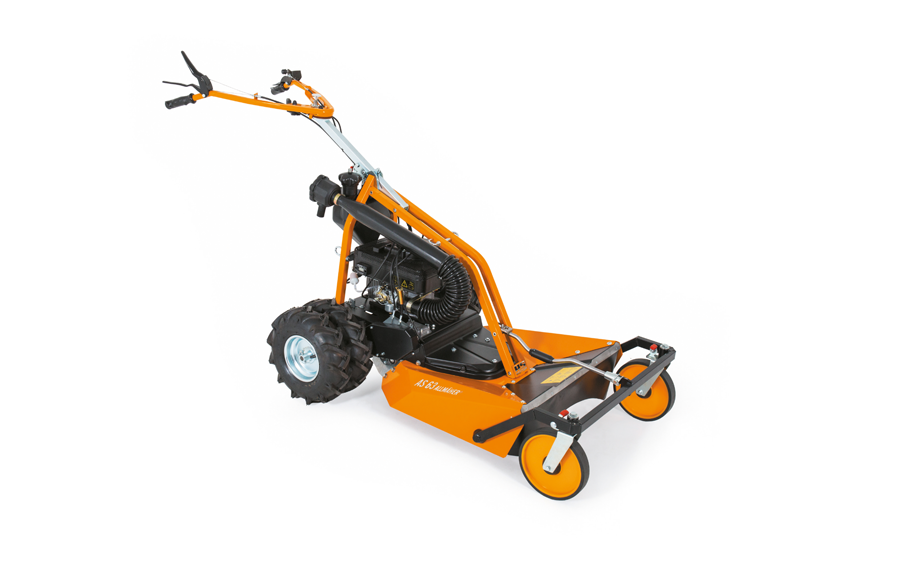

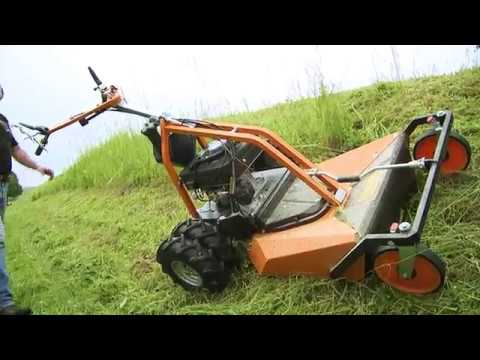

Modern Allmäher for slopes and difficult terrain
Mulch where others hit their limits. The AS 63 2T ES is equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC. The AS 2-stroke engine maintains engine lubrication regardless of position, enabling mowing on inclines of 40 degrees and more without the risk of engine damage. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. The 2-stroke engine’s high torque provides full power in high, wet grass while a third crankshaft bearing and friction discs on the wing blade protect the engine in the event of striking an obstacle. Large inflatable tyres with field studs offer ideal propulsion at speeds up to 4.0 km/h.
The drive-reduction transmission with a gear ratio of 1:13.44 allows the AS 63 2T ES to brake autonomously when moving downhill. The machine will not speed up when moving downhill, no matter how steep the incline. When in drive the AS 63 2T ES has a permanently locked limited slip differential which increases traction and safety, particularly on slopes.

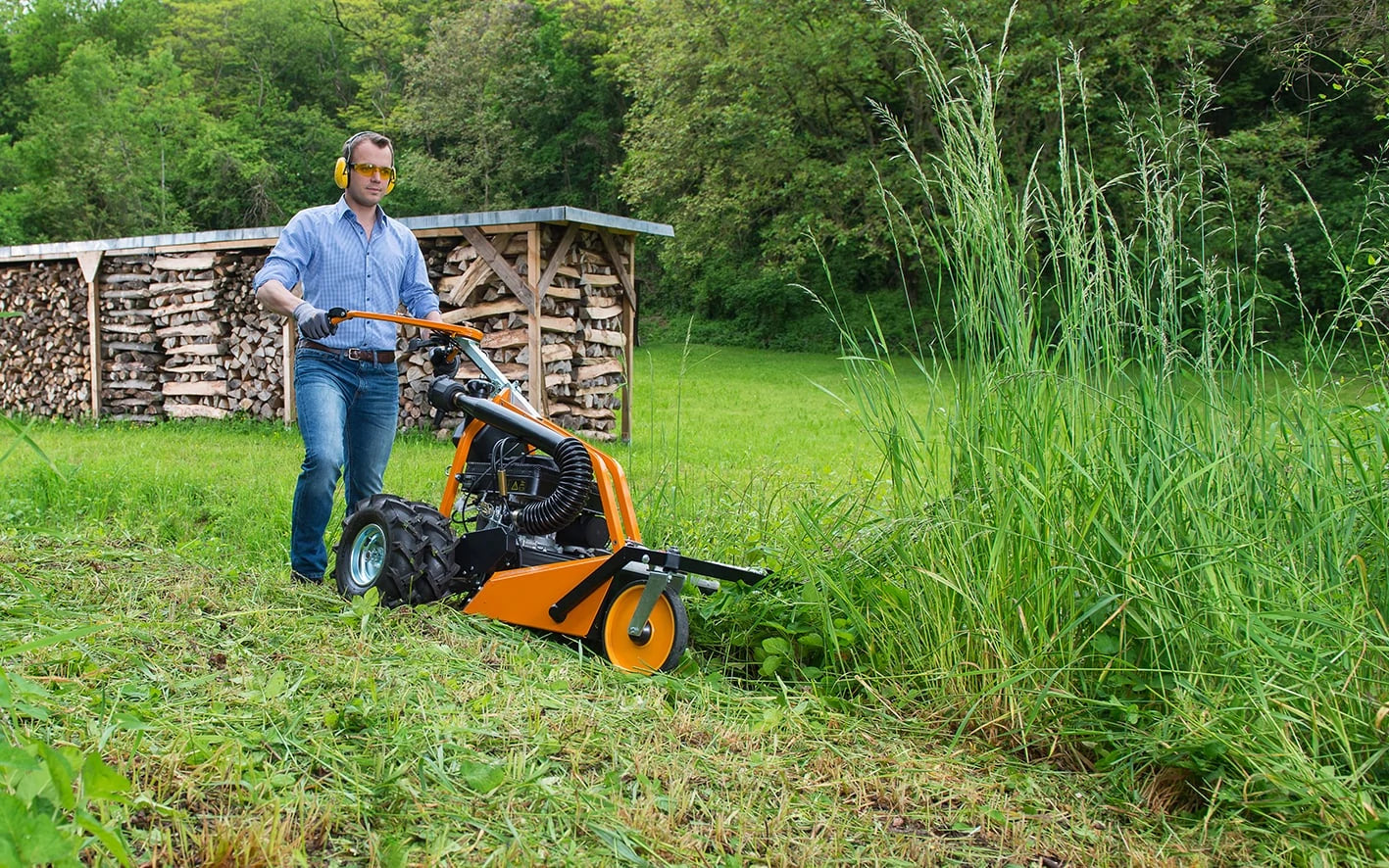

Work rates reaching 2,400 m² per hour are possible due to a high-performance 2-stroke engine with up to 6.7 hp, variable drive and a 61 cm cutting width. The AS 63 2T ES easily cuts grass up to 100 cm high.
Simple, convenient and safe operation
The AS 63 2T ES works with operating levers that activate the parking brake, the traction drive, the limited slip differential and the blade clutch. Absolute safety for slope mowing is achieved by an automatic parking brake and limited slip differential which remains permanently locked while the machine is in drive. When the drive lever is released, the parking brake automatically engages and the AS 63 2T ES stops, whether on a slope or level ground. For convenient operation the guide bar is equipped with a V-handlebar which can be adjusted laterally and for height without tools. “VibrationProtect” vibration damping reduces hand-arm vibration to a minimum.
Product advantages
The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.
The cross-blade system of the AS 63 Allmäher easily cuts and shreds high growth with an impressive cutting performance and excellent mulching result.
When the drive lever is released the machine stops automatically, whether on a slope or level ground.
The drive-reduction transmission with a 1:13.44 gear ratio delivers optimal propulsion and brakes autonomously when moving downhill.
100% limited slip differential activates in drive, enabling better handling.
1:1.6 engine-blade reduction for high cutting capacity in dense growth.
Separate engine and blade shaft protects engine.
Conical mower deck generates an airflow that uniformly whirls the cuttings in the mulching unit, delivering excellent cutting results.
Product details
VARIATOR
Speed regulator enables variable adjustment of the drive speed.
VIBRATION DAMPING
"VibrationProtect" reduces hand-arm vibration to a minimum.
EASY TRANSPORT
The AS 63 can be easily folded for compact transport dimensions.
CLEANING AND SERVICE POSITION
The compact design of the AS 63 enables easy and convenient cleaning.
