AS-MOTOR AS 1040 YAK 4WD Ride-On-Mower G90400101
AS-MOTOR AS 1040 YAK 4WD Ride-On-Mower G90400101
SKU:G90400101
Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.
View our shipping policy here
Couldn't load pickup availability

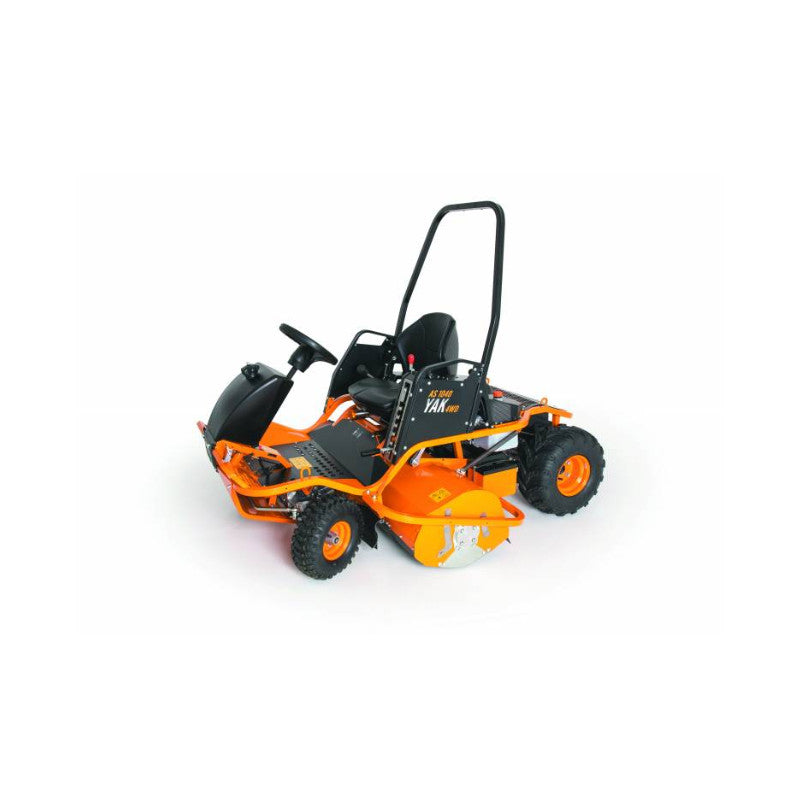

Strong, robust and at home on difficult terrain – AS 1040 Yak 4WD
AS-Motor’s new robust ride-on flail mower is engineered for uneven, rough and steep terrain. The AS 1040 Yak 4WD shreds grass up to 1.5 metres tall as well as brush and young saplings. With high work rates and even more safety, the flail mower is an ideal tool for professional users such as commercial landscapers and municipal operators.
A powerhouse with direct flail shaft drive
The AS 1040 Yak 4WD is powered by a Briggs & Stratton 2 cylinder Vanguard V-Twin engine with up to 23 hp (17.2 kW) and 627 ccm displacement. The engine is horizontally placed and thus transfers the force directly to the flail shaft through a V-belt, while a cyclone air filter delivers fresh air supply. The engine’s oil and fuel pump guarantees performance on slopes.
Variable 4WD with cruise control function
Hydrostatic transmission allows the operator to conveniently control the AS 1040 Yak 4WD’s speed up to 6.8 km/h forward, and 6.3 km/h in reverse. Permanent 4WD delivers propulsion no matter the terrain. The rear axle differential can be blocked at any time via a foot pedal; a drive lever with integrated parking brake and cruise control ensures easy operation.
Surfing flail mower unit with Y-flails
The AS 1040 Yak 4WD achieves work rates reaching 6,800 m²/h thanks to its 1-metre working width and 56 Y-flails that shred grass and deposit the mulch uniformly across the work area. Cutting height can be adjusted to 7 levels between 30-110 mm. A surfing mower deck and Y-flails that give way protect the engine, and the operator, from damage in the event of unseen objects or uneven terrain. The mower deck’s asymmetric shape allows efficient mowing close to fences and around objects.
Comfort for long work days
An ergonomic sitting position provides adequate legroom for users up to 200 cm (6’6″) tall, while the bucket seat and innovative suspension system with end position damping can be adapted to every operator.
Stable and robust asymmetrically arranged surfing flail mower unit. The mower deck and the flails themselves give way to uneven ground and foreign objects.
Perfect mowing results over the entire working width.
Flail rotor drive and diminished need for path overlap guarantee high work rates.
Stable, square-tube frame with weight-optimized design, low-maintenance hydrostatic transmission and optimal cooling.

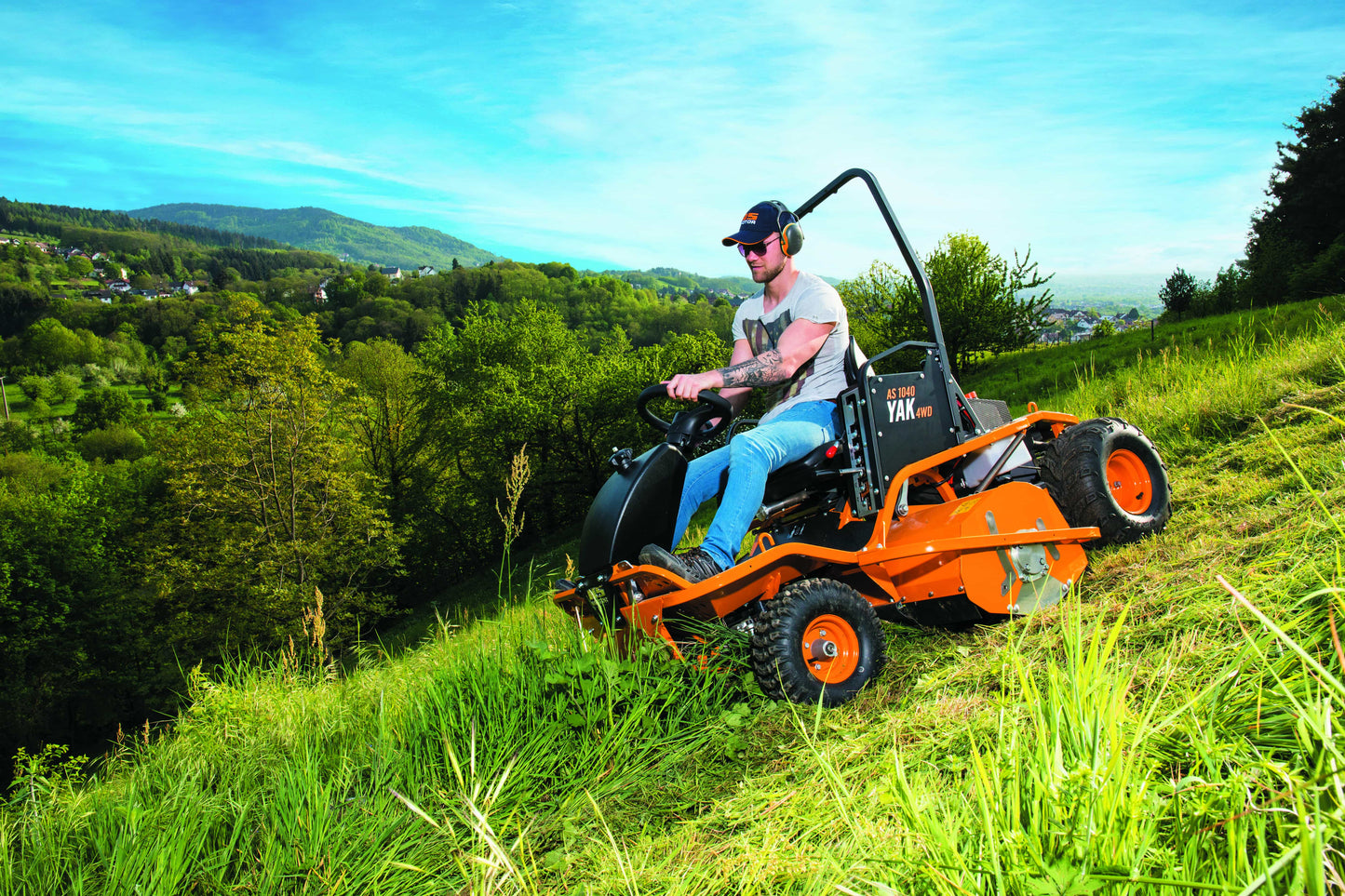

Low centre of gravity and 4WD guarantee safety on slopes.
Balanced weight distribution – 45% on the front axle and 55% on the rear – ensures outstanding traction and safe work on every terrain.
Maximum operator safety thanks to stable folding bar, integrated safety switch in the driver seat, and emergency stop foot pedal. Lashing points on the device enable safer transport.
Flails and drive belt are easily replaced via appropriate service cut-outs and openings. Fast access to all maintenance points.
Product details
OPTIMAL ERGONOMICS
Upright sitting position, ideal steering-wheel placement and legroom for operators up to 6'6" tall. Lateral deflectors protect the operator from thick growth and thorns. Bucket seat with newly-developed seat suspension.
COMFORTABLE DRIVE
Variable hydrostatic drive with one-hand drive lever, cruise control and integrated parking brake for fatigue-free work.
EXCELLENT TRACTION
Permanent 4WD drive with on-demand limited slip differential for the rear axle. Low pressure tyres with aggressive tread and AS-Motor tyre sealant (flat-stop).
SURFING FLAIL MOWER DECK
The flail mower unit’s surfing suspension yields upward on uneven terrain. Easy height adjustment through spring support.
