ETESIA

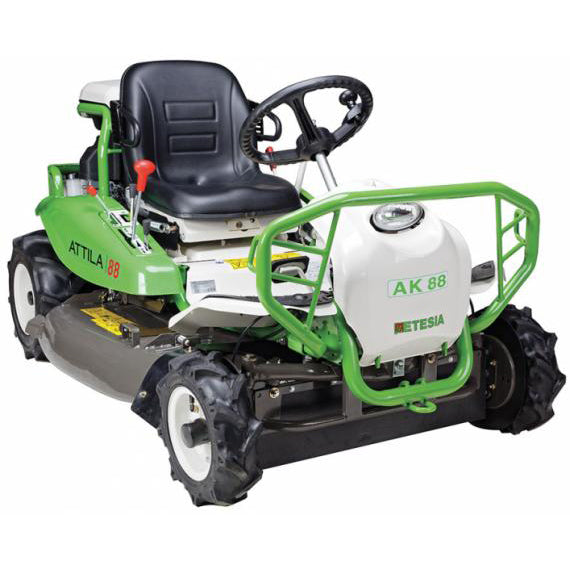

ETESIA ATTILA 88 AK88
ETESIA ATTILA 88 AK88
SKU:AK88
Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.
View our shipping policy here
Couldn't load pickup availability
Ride-on brush cutter, 88 cm cutting width, Kawasaki 16 HP twin cylinders engine, hydro mechanical transmission, differential lock
Brushcutters Attila 88 brushcutter
PERFORMANCE
Capacity
Powered by a Kawasaki FS481V 16 HP it is powerful and has an increased capacity because of its 9 litre fuel tank.
Cutting deck
Its new 88cm cutting deck offers better performance and appearance due to a finer cut. High work rate (up to 8 800 m²/h)
Brushcutting
Swing or fix tip blades. With a larger cutting width of 88 cm, the Attila 88 reduces the time required to carry out the job. Can cut through 4.5 cm diameter.
All terrain
Low centre of gravity plus heavy-tread tyres provide greater stability on slopes up to 30%.
COMFORT
User friendly
Electric start, central cutting height adjustment, rack and pinion steering – the Attila 88 brushcutter could not be easier to operate.
Transmission
The hydromechanical transmission increases the flexibility and the ease of driving.
Cutting height
Cutting height adjusted by centralised lever with 7 work positions from 50 mm to 110 mm + 1 transport position.
Compacity
One of the positive aspects of this machine is its small size. It very easy to operate in orchardsor vineyards.
Engine
Powered by a Kawasaki FS481V, 11,9 kW engine, Attila 88 is fitted with with differential lock for adverse conditions, adjustable forward speed from 0 to 10 km/h and adjustable reverse speed from 0 to 7 km/h. Agricultural tyres.
Frame
Welded tubular chassis for extra strength and long life.
Traction
The hydromechanical transmission on the Attila 88 improves long life. It combines the robustness of a mechanical drive to the flexibility of a hydrostatic transmission.
SPECIFICATIONS
The new cutting deck is more powerful and offers the highest cutting quality.
| Mower |
|---|
| Mower | |
|---|---|
| Surface non tondue | 1.9 m² |
| Theoretical output (m²/h) | 8800 m²/h |
| Number of blades | 1 |
| Cutting width (cm) | 88 cm |
| Cutting deck | 2 mm Steel |
| Mount type | suspended cutting deck |
| Rotation direction | Anti-clock |
| Blade protection | Yes |
| Blade clutch | Mechanical |
| Cutting height | from 50 to 110 mm + 1 transport position |
| Measurement and weight | |
|---|---|
| Weight | 275 Kg |
| Height | 100 cm |
| Width | 98 cm |
| Length | 198 cm |
| Rollbar MASAK | Option |
| Engine | |
|---|---|
| Amount of cylinders | 2 |
| Capacity (cm³) | 603 cm³ |
| Nominal engine power | 11,9 kW (16 HP) |
| Fuel tank capacity (L) | 9 L |
| Oil capacity (L) | 1.7 L |
| Cooling system | Air cooled |
| Fuel | Unleaded fuel 95/98 |
| Starter | Electric 12 V - 3A with regulator |
| Engine type | Kawasaki FS481V |
| Battery | 12 V - 30 A |
| Wheel transmission | |
|---|---|
| Transmission type | Hydrostatic |
| Forward speed (km/h) | 10 |
| Reverse speed (km/h) | 7 |
| Oil capacity (L) | 1.7 L |
| Number of wheel drive | 2 |
| Turning radius (m) | 1 |
| Working angle % | 30% |
| Acoustic pressure | 97.7 dB(A) |
| Frame | Tubular mecanic welded |
| Direction | Mecanic |
| Tyres | FR: 6,5x7.0 / BACK: 16x7.0-8 |
| Braking | Dynamic brake - Mecanic parking brake |
| Forward transmission | Hydromechanic |
| GPS/GPRS | - |
