ETESIA
ETESIA BAHIA 2 MHHE 2
ETESIA BAHIA 2 MHHE 2
SKU:MHHE2
Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.
View our shipping policy here
Couldn't load pickup availability

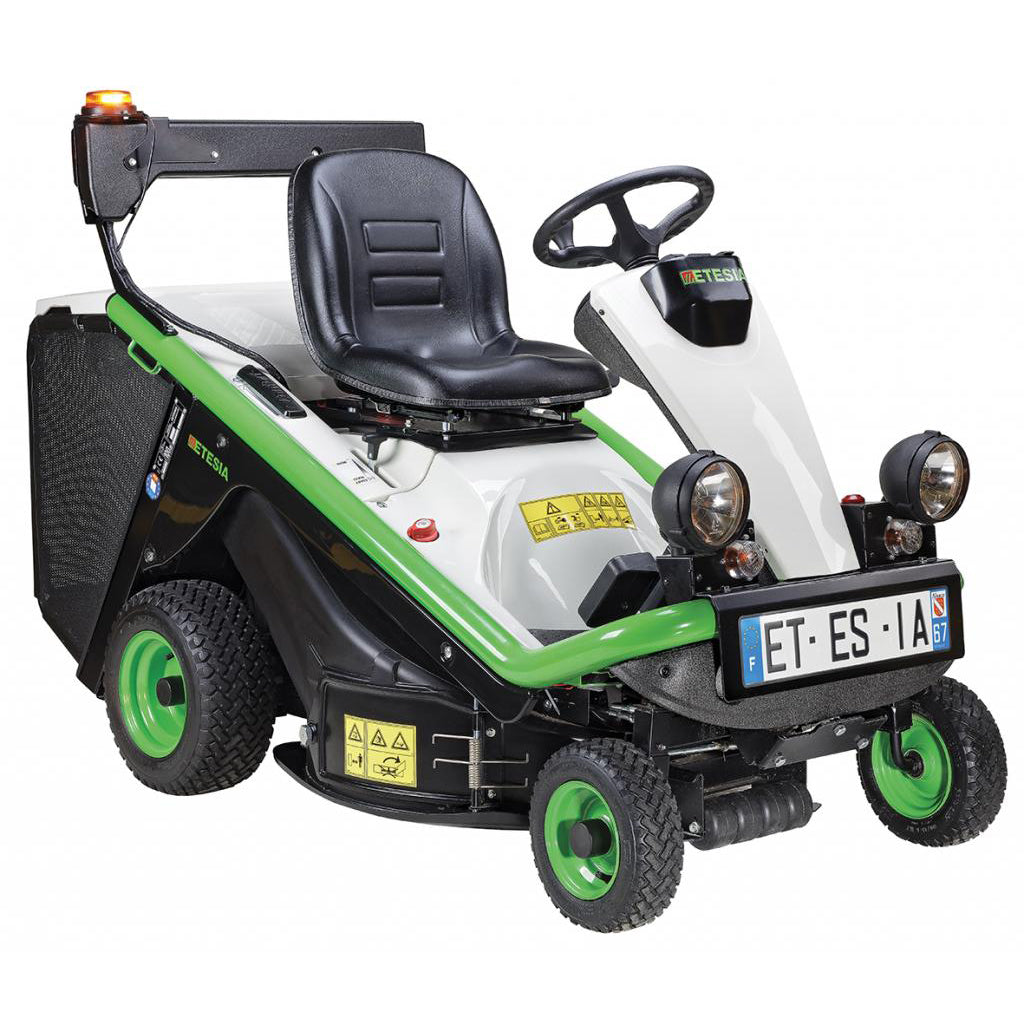

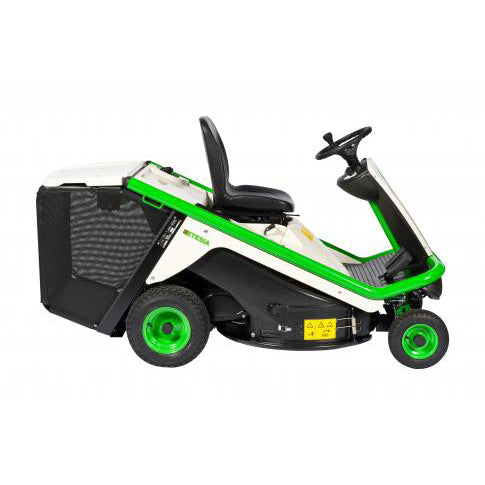

Ride-on mower with HONDA OHV 13 HP, hydrostatic transmission, 240 litres grass box, delivered with mulching kit
Compact, tenacious, flexible and multi-tasking, Bahia adapts to every terrain, every grass-cutting situation and every task.
+ Honda OHV 9,5 HP/7,1 kW engine
PERFORMANCE
Compact, tenacious, flexible and multi-tasking, Bahia adapts to every terrain, every grass-cutting situation and every task.
A go-anywhere mower
A pocket-size ride-on mower, just 0.82 m wide and 1.98 m long, Bahia features an incredibly tight turning circle. It nips into every nook and cranny and can be easily transported.
Automatic gearbox
Forward. Stop. Reverse. Accelerate. Brake. Instantaneously. In complete safety. Pedal-controlled hydrostatic transmission for easy driving.
Excellent stability
With its low centre of gravity, Bahia's 30/70 weight distribution on the front/rear axles make it a highly stable mower that masterfully copes with slopes.
Cut and collect
Suspension cutting deck with direct rear ejection into a 240 liters grass collector. Efficient even in wet or long grass. Buzzer sounds when grass collector is full. Grass collector opened and closed from driver's seat. Perfect collection of dead leaves.
COMFORT
Ideal driving position, high-comfort seat, controls on dashboard, silence and safety - with Bahia, discover a whole new world of well-being.
Ideal working conditions
The Bahia requires only the lightest touch for easy driving. From the driver's adjustable, ergonomic seat, you have a perfect view of your working environment.
Safety first
Noise level under 100 dB(A). Petrol tank with overflow catcher. Built-in blade brake. Several safety switches. Complies with machine directive 2006/CE.
The easy life
Buzzer sounds when grass collector is full. A hose pipe fitting makes cleaning the cutting system quick and easy. Tool-free access to engine.
Honda engine
Engine fittings with valves Honda GXV 390 OHV, 7,1 kW / 9,5 HP.
SPECIFICATIONS
Road homologation kit available.
| Mower | |
|---|---|
| Theoretical output (m²/h) | 7200 m²/h |
| Number of blades | 1 |
| Cutting width (cm) | 80 cm |
| Mowing deck | Steel |
| Mount type | Suspension cutting deck |
| Rotation direction | Right |
| Blade protection | 2 cutting screws |
| Type of blade clutch | electromagnetic with integrated brake |
| Cutting height (mm) | from 44 to 102 mm |
| Emptying systems | |
|---|---|
| Grassbox capacity (L) | 240 L |
| Grassbox emptying | Manual |
| Grassbox structure | tubular structure - anti-UV handled web |
| Measurement and weight | |
|---|---|
| Weight | 230 Kg |
| Height | 121 cm |
| Width | 82.5 cm |
| Lenght | 197.5 cm |
| Motor | |
|---|---|
| Number of cylinders | 1 |
| Cylinder capacity | 389 |
| Nominal engine power | 7.1 kW/9.5 HP |
| Maximum engine power | 9.6 kW/13 HP |
| Fuel tank capacity (L) | 12 L |
| Oil tank capacity (L) | 1.5 L |
| Cooling | 2 cylinder, air cooled |
| Fuel | unleaded fuel 95/98 |
| Starter | Electric 12V 13 A with regulator |
| Motortype | Honda GXV390 |
| Battery | 12V - 20Ah |
| Wheel transmission | |
|---|---|
| Transmission type | Hydrostatic |
| Forward speed (km/h) | 9 km/h |
| Backward speed (km/h) | 8 km/h |
| Oil | 1.5 L |
| Number of driving wheels | 2 |
| Vertical drop | 17% |
| Acoustic pressure | 86 dB(A) |
| Frame | Mecanic welded tubular frame |
| Direction | Mecanic |
| Pneumatic | FRONT: 10x6.5-6 / BEHIND: 16x6.5-8 |
| Braking | Hydrostatic |
| GPS/GPRS | - |
