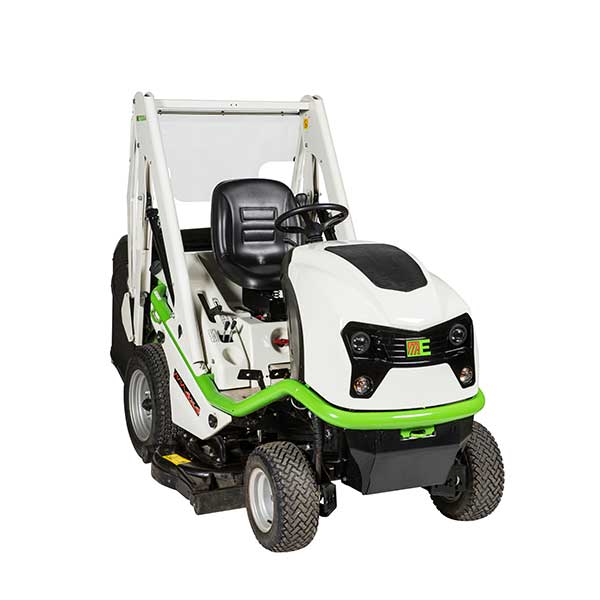

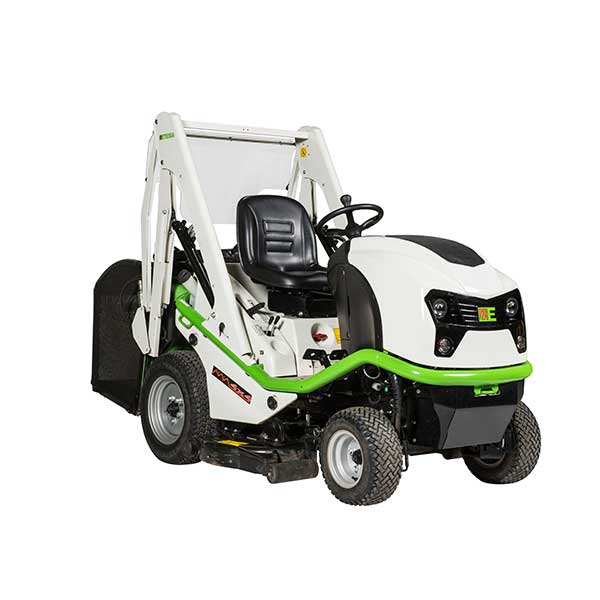

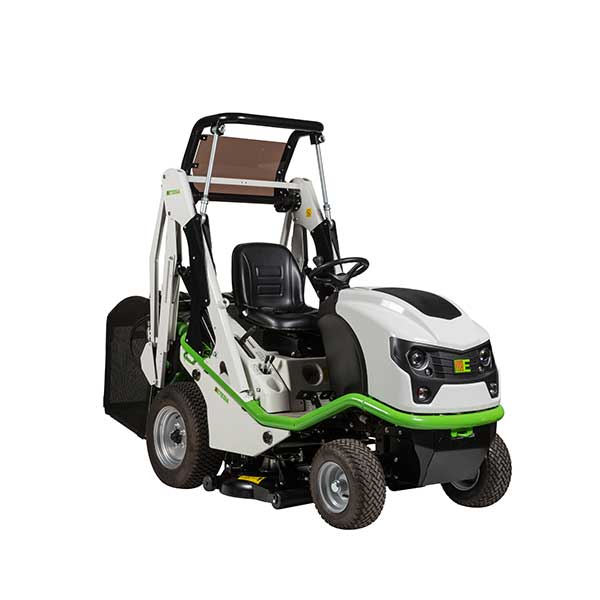

ETESIA BUFFALO 124 HVHPX2

Ride-on mower 4 wd, with B&S VANGUARD engine, twin cylinder petrol, 23 HP, hydraulic transmission, incl 600 L grass box, hydraulic lift emptying from 0 to 1.80 m. Cutting width :1,24m

ETESIA HYDRO 124P HVHPX ATHLETIC LOOKS

Fitted with a 124-cm overlapping cutting deck and a 23-hp two-cylinder Vanguard engine, the Etesia H124P has a higher hourly mowing output of up to 15,000 sq m. per hour, and an unequalled weight-to-power ratio. Above all, it represents excellent value for money, both for the initial purchase and for use.

4 wheel drive version (HVHPX)

A MORE IN-DEPTH LOOK AT THE ETESIA BUFFALO 124 HVHPX2

Cutting Width: 124cm
Dimensions (L x W x H): 280 x 128 x 174 cm
Weight: 808kgs
Engine HP: 25HP
Transmission: Hydrostatic

Motor Specification

Amount of Cylinders: 3
Horse Power: 25HP
Fuel: Unleaded fuel 95/98.
Fuel Tank Capacity: 19 litres

Wheel Transmission Specification

Transmission Type: Hydrostatic
Number of Wheel Drive: 4
Forward Speed (km/h): 16
Reverse Speed (km/h): 16
Turning Radius (m): 1
Working Angle (%): 30
PTO: Yes

Mower Specification

Output (theoretical): 19000 m²/h
Number of Blades: 2
Cutting Width: 124cm

Emptying System

Grass Box Capacity: 600 litres

Measurement and Weight Specification

Height: 174cm
Width: 128cm
Length: 280cm
Weight: 808kgs

UP TO 15,000 SQM GRASS CUT AND COLLECTED PER HOUR

The efficiency of the cutting system of the new Etesia Hydro124P allows professionals to work faster (up to 12 km/h in optimal mowing conditions) and to improve productivity and output (can be used on wet grass, or in the rain).

The Hydro124P ride-on mower is fitted with a built-in grass collector with a capacity of 600 litres, and the hydraulic emptying system is controlled from the driver’s seat.

124CM CUTTING WIDTH

The shape of the cutting deck, in Mastershock, is optimised for low turbulence. The deck with double contraprogressive curls and a rear central ejection channel which, in conjunction with the two contrarotating blades mounted at rightangles to each other and overlapping by 6 cm, produces an extremely powerful vacuum and blowing effect. The result is a perfect cut and perfect grass collection every time.

EMPTYING UP TO 180 CM ABOVE THE GROUND

The grass collector is easily lifted and emptied hydraulically by controlling a hydraulic distributor from the driver’s seat. The collector can be emptied at any height up to 180 cm above ground level.

100% EMPTYING

The grassbox is mounted between the rear wheels; a special flap holds the grass inside when the box is raised. The grassbox is then opened to allow the grass to be emptied.

ENSURING TRANSMISSION EFFICIENCY CLOSE TO 100%

The transmission works on the rear wheels, using two hydraulic motors supplied by a variable flow pump, ensuring transmission efficiency close to 100%.

DIFFERENTIAL LOCK AND POWER REGULATOR

The Etesia Hydro 124P ride-on mowers are equipped with a hydraulic flow divider, to ensure an effective differential lock, enabling maximum drive in difficult situations (slopes, slippery surfaces, etc.). Furthermore, a power regulator prevents the engine from stalling by adjusting the speed to suit the transmission torque demanded.

H124P ADVANCED COMFORT

Grouped next to the driver’s seat, within easy reach, all the controls – for emptying the grass collector, engaging the blades, setting the grass cutting height, applying the differential lock, etc. – are particularly easy to use. They are all positioned logically and ergonomically, and are easy to operate.

POWER STEERING

Power steering ensures precise steering, easy turning, and less fatigue for the operator.

AUTOMATIC GEARBOX

The hydrostatic transmission makes driving more comfortable, allowing you to make smooth progress. Press the forward or reverse pedal to choose the working speed in complete safety.

HIGH BACK SEAT

The high back seat, with sliding horizontal adjustment, ensures that you will find the ideal driving position on the Etesia H124P.

DASHBOARD

The dashboard of the Etesia H124P is fully functional. In particular, it is equipped with an instrument to cover the following functions: hour meter, maintenance indicator, operational check of all safety devices, fuel level gauge with low level light, battery charge indicator, hydraulic circuit overheating indicator, lighting indicator.

BUILT TO LAST

The load bearing chassis of the H124P is made up of two mechanically welded tubular sub-assemblies, bolted together. Entirely rust-proofed, the design of the chassis is directly inspired by manufacturing processes used in the automobile industry and is hardwearing even in conditions of intensive use.

OUTSTANDING RELIABILITY

Developed using the most powerful CAD tools, built and tested in Europe to rigorous manufacturing techniques, the H124P ride-on mowers are designed to last. They only require the strict minimum in terms of maintenance and guarantee you hours of continuous use.

HYDRAULIC TRANSMISSION

The choice of hydraulics instead of mechanical solutions provides the user with transmission systems on the H124P that last longer and have improved reliability.

CUTTER HEADS TRANSMISSION

The transmission between the two blades is via a double-faced toothed belt. A V belt provides the power transmission between an electromagnetic clutch and the cutting deck.

CUTTING BLADE CONTROL

The blades are engaged with an electromagnetic clutch fitted with a brake and controlled by actuating a switch located on the dashboard.

CUTTING BLADE PROTECTION

To avoid any major damage, the blades are protected with two shear bolts that can be replaced in the event of a violent impact.

CUTTING DECK

Mastershock cutting deck which does not rust.

GRASS BOX

Made from rot-roof fabric on a reinforced tubular frame, the grassbox has a capacity of 600 litres and guarantees the user long life and reliable operation.
