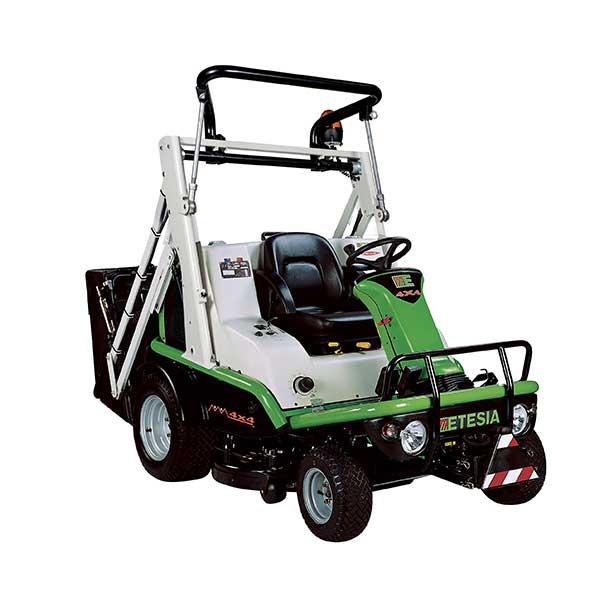

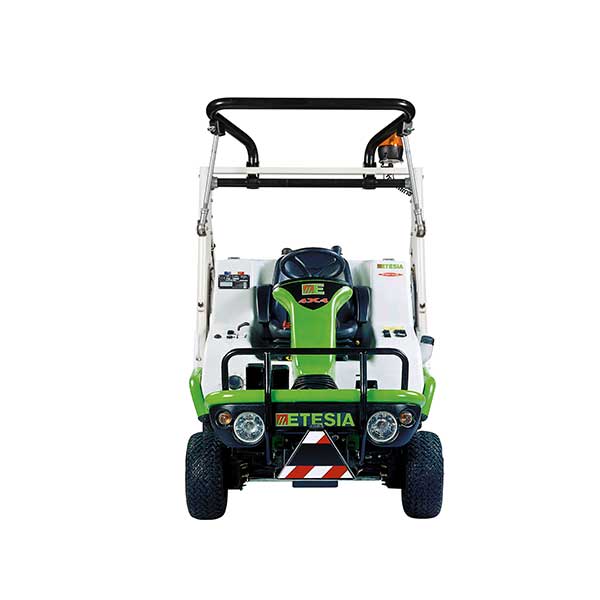

ETESIA Hydro 124DX H124DX

ETESIA Hydro 124 Diesel 4 x 4 Ride-on mower LOMBARDINI FOCS 1003, 3 cylinders, water cooled diesel, 25 HP, hydraulic transmission

The Etesia Hydro 124D is the first mower that combines direct rear-ejection, intergrated collection and high-lift emptying (patented). All features that make it one of the most highly efficient machines on the market, designed to mow up to 19,000 square metres per hour, with a 4-wheel drive transmission.

Specification

Cutting Width: 124cm
Dimensions (L x W x H): 280 x 128 x 174 cm
Weight: 875kgs
Engine HP: 25HP
Transmission: Hydrostatic

Motor Specification

Amount of Cylinders: 3
Horse Power: 25HP
Fuel: Diesel
Fuel Tank Capacity: 19 litres

Wheel Transmission Specification

Transmission Type: Hydrostatic
Number of Wheel Drive: 4
Forward Speed (km/h): 16
Reverse Speed (km/h): 16
Turning Radius (m): 1
Working Angle (%): 30
PTO: Yes

Mower Specification

Output (theoretical): 19000 m²/h
Number of Blades: 2
Cutting Width: 124cm

Emptying System

Grass Box Capacity: 600 litres

Measurement and Weight Specification

Height: 134cm
Width: 128cm
Length: 280cm
Weight: 875kgs

Benifits

BETTER MOWING

• 1.24m cutting width with two counter-rotating blades which are mounted at right angles.

BETTER COLLECTING

• Cutting deck with rear ejection to give a quality finish with excellent collection even in long and wet grass.

• Grass box filled to capacity every time : 600 L / 100 kg

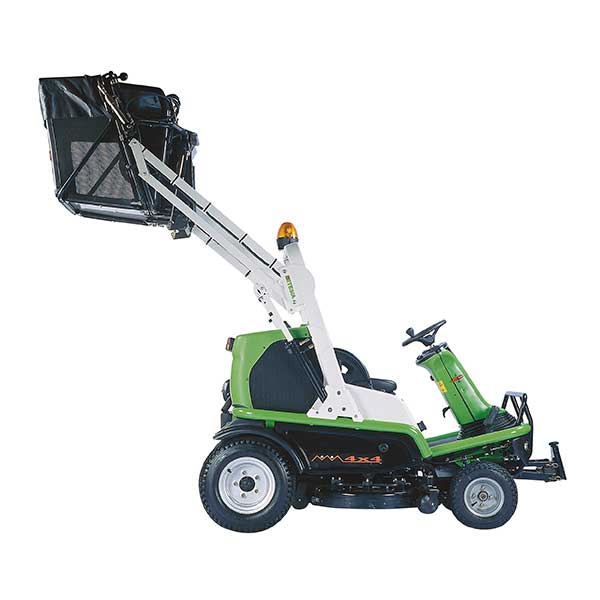

• Emptying can be carried out at any height from floor level up to a maximum of 1.8 metres without leaving the driver seat.

FASTER WORK

• To work faster at speeds up to 16km/h depending on conditions.

COMPACT AND VERSATILE

• The weight is distributed with 30% on the front axle and 70% on the rear.

• Differential lock through flow divider.

SAFE

• Standards: Meets all safety requirements.

OPERATOR COMFORT

• The steering console is fully adjustable up or down, forward and back. Seat with arm rests, can be titled ; adjust to the operator’s weight and is adjustable back and forwards.

• The operator is provided with all-round visibility.

• Noise: because Etesia’s direct rear-ejection system is so effecient, no noisy turbines are required.

ROBUST AND RELIABLE

• Transmission: hydraulic wheel motors.

• Blade clutch: electromagnetic with built-in brake.

MULTI-FUNCTIONAL

• A glass-panelled cab is available as an option, it can be equipped with a heating system.

• PTO for front accessories: sweeper, snow blade, scarifier, blower.

The Etesia Hydro 124 ride-on mower can be fitted with an optional new mulching deck, the MCM 144. It then becomes a formidable mulcher offering the unrivalled performance of a 1.44 m cutting width.
