ISC HaulerBiner Rescue - 105 cm, 6 mm

ISC HaulerBiner Rescue - 105 cm, 6 mm

£149.00 + VAT (£178.80)
+ VAT (£0.00) £149.00 + VAT (£178.80)
Special Offer Sold out
Shipping calculated at checkout.

HB105A

View our shipping policy here

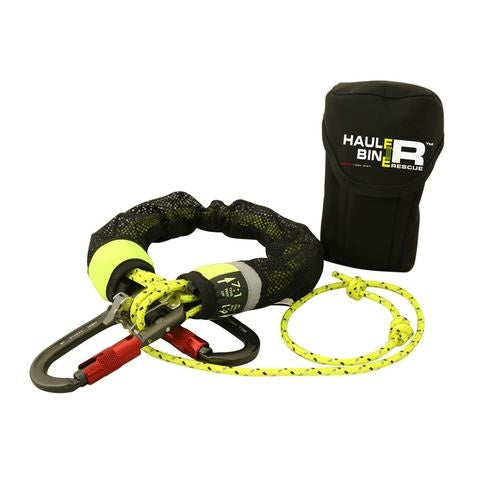

The HaulerBiner Compact Rescue Kit is a lightweight, compact and simple to use/deploy device. The HaulerBiner is fully rated for lifting people.

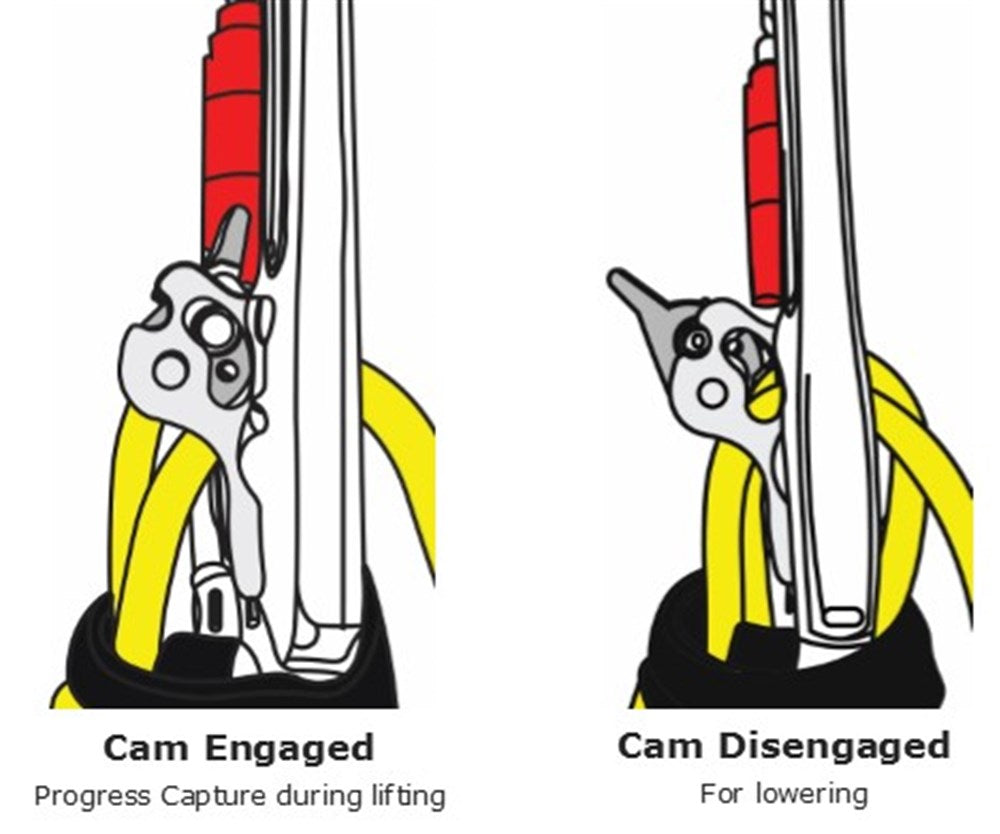

The HaulerBiner has three pulley wheels incorporated into each Karabiner, creating a compact and lightweight 6:1 or 7:1 (theoretical) Mechanical Advantage system. The HaulerBiner also has a purpose-designed progress capture cam with, an ‘on/off’ position.  The HaulerBiner utilises purpose-developed 6mm (1/4") rope, for strength and easy handling/best grip.  The kit is supplied in a two-pouch bag, for easy deployment.

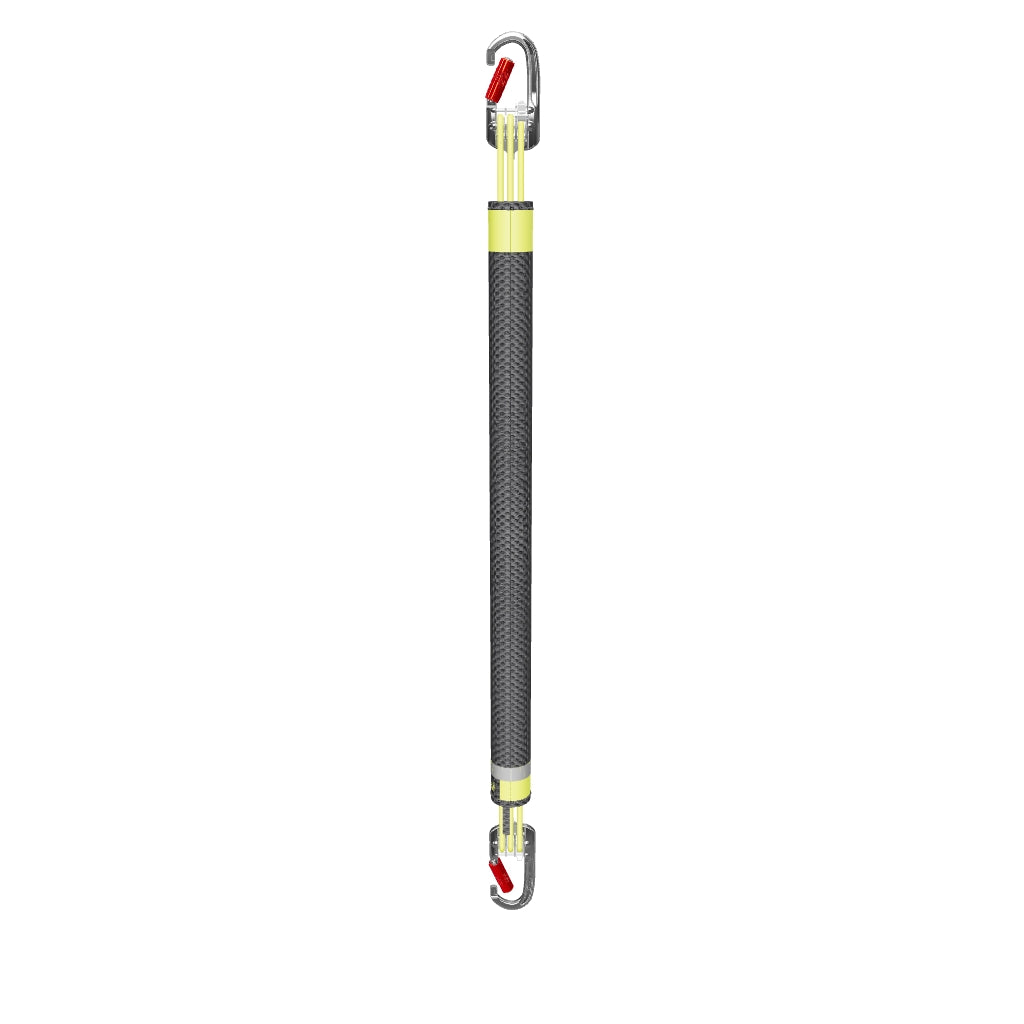

The HaulerBiner is load rated to 140kg (310lbs) but it has an MBS of at least 16kN/3500lbs tested as a complete system. The length of the system, when fully contracted is only 32cm (12")!

Features

The HaulerBiner can be used in a number of ways:

  • As part of a pick-off system
  • On a structure, pull down on the system and achieve a 6:1 (theoretical) MA
  • When suspended in a harness, pull up on the system and achieve a 7:1(theoretical) MA
  • With a D4/D2 Descender, as part of a short-haul / long-lower system
  • As a tensioning system for short/low load lines
  • As a stretcher management device, using two or more HaulerBiners to easily change or adjust the orientation of the stretcher

Specifications

Technical Information:

  • (WLL) Working Load Limit (kg): 140
  • (WLL) Working Load Limit (lbs): 308
  • (MBS) Minimum Breaking Strength (kN): 16
  • (MBS) Minimum Breaking Strength (lbf): 3596
  • Gate/lock type: Supersafe

Approved Standards

  • Meets EN 12278
  • Meets EN567
