PORTABLE WINCH

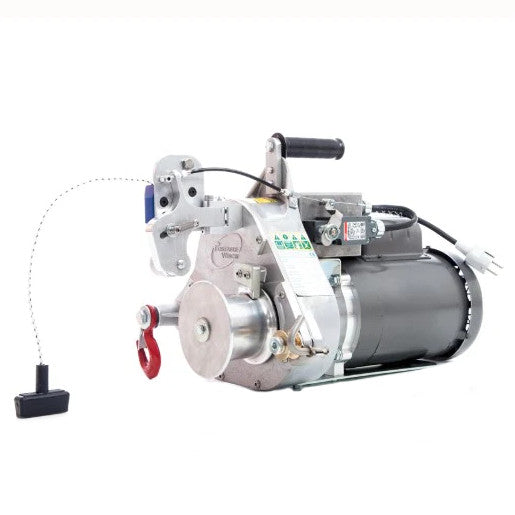

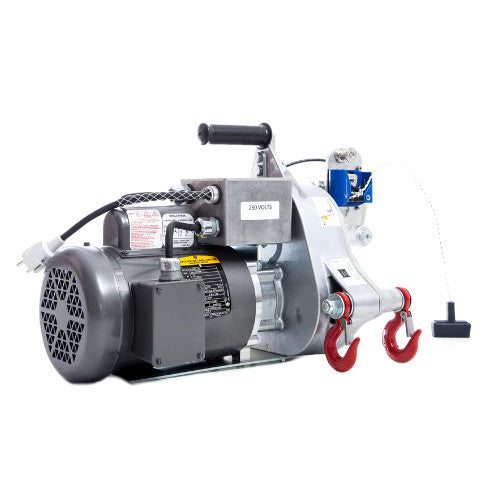

PORTABLE WINCH PW-PCT1800-50Hz-P-230V Electric Pull / Lift Winch

PORTABLE WINCH PW-PCT1800-50Hz-P-230V Electric Pull / Lift Winch

£3,122.86 + VAT (£3,747.43)
+ VAT (£0.00) £3,122.86 + VAT (£3,747.43)
Special Offer Sold out
Shipping calculated at checkout.

PW-PCT1800-50Hz-P-230V

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

View our shipping policy here

This electric powered winch is ideal for indoor applications such as pulling wire through conduits or lifting equipment.

It can lift loads of 250 kg in a single line and a block and tackle system will increase the lifting capacity to 500 kg.

For lifting purposes, it is equipped with a rope grabbing system which will hold a load in position; allowing the operator to work safely.

The electric motor is activated by simply pulling on the rope. As soon as the operator stops pulling, the drum stops rotating, preventing rope damage. For the operator’s safety, it is equipped with a rope grabbing system which will prevent the rope from sliding inadvertently.

The PCT1800 is recommended for situations when gas-powered (petrol) winches cannot be used and is a good alternative when noise is an issue.

Features

Specifications

  • Installed Capstan Size: 85 mm (Optional 57mm Drum Available - Increases Capacity)
  • Max Pull Capacity: 820 kg
  • Max Lifting Capacity: 250 kg
  • Speed with Installed Capstan: 8.8 m/min
  • Engine/Motor: C Electric Baldor TEFC 115/230 VAC - 1 ph - 3/4 HP - 60 Hz
  • Gear Ratio: 110:1
  • Rope Size: Min 12 mm | Max 13 mm | Ideal 12 mm
  • Dry Weight: 24.0 kg
