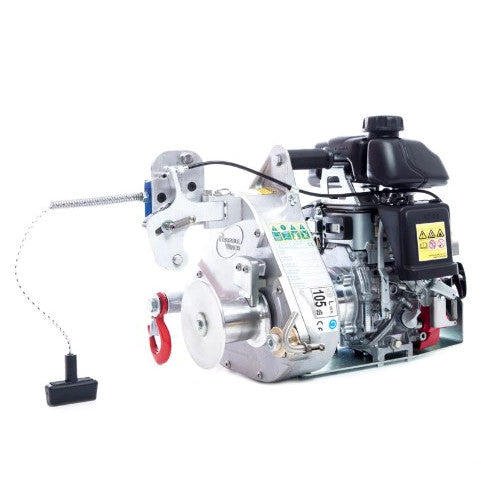

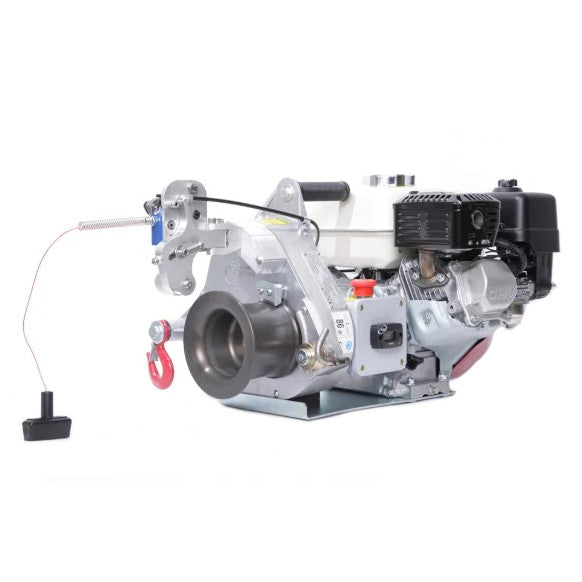

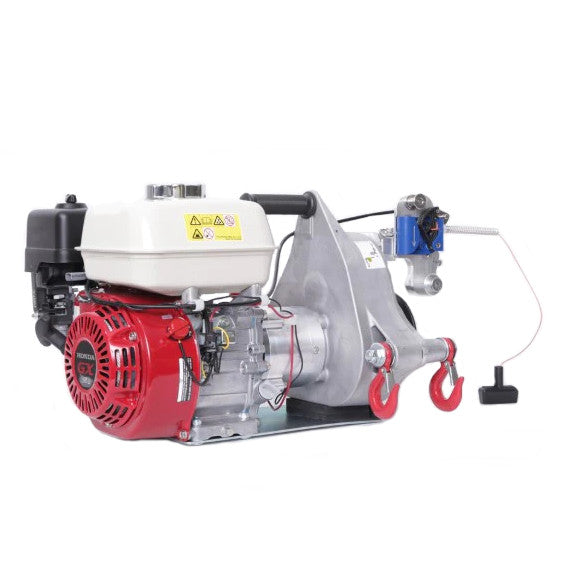

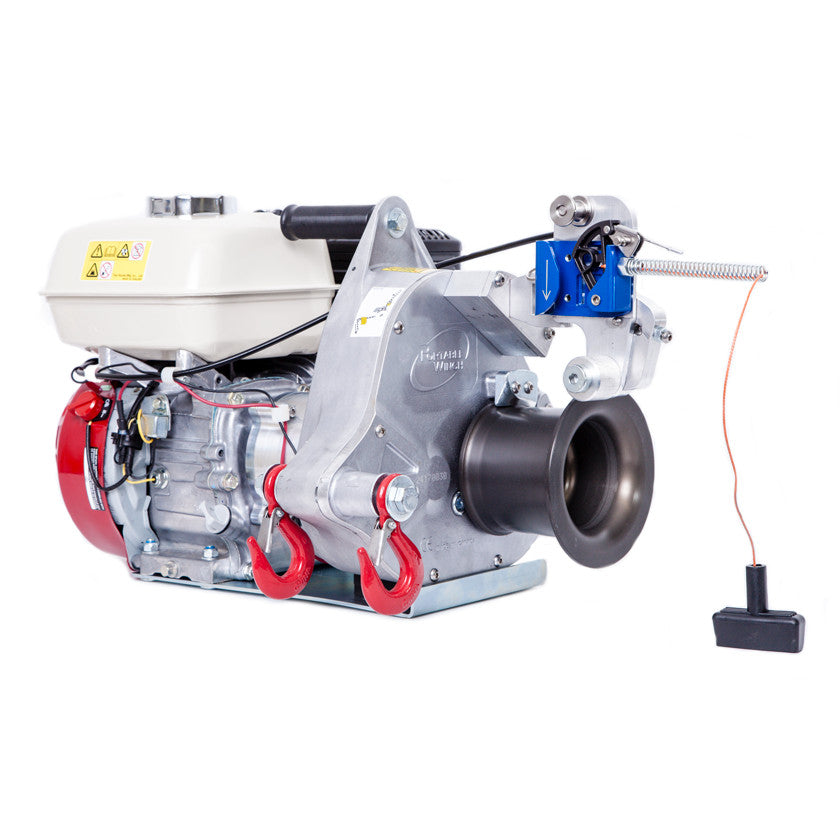

PORTABLE WINCH PCH2000 Petrol Pulling Winch (Honda GX-160 Engine) - Pull/Lift Version

PORTABLE WINCH PCH2000 Petrol Pulling Winch (Honda GX-160 Engine) - Pull/Lift Version

£3,390.61 + VAT (£4,068.73)
+ VAT (£0.00) £3,390.61 + VAT (£4,068.73)
Special Offer Sold out
Shipping calculated at checkout.

PW-PCH2000

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

View our shipping policy here

The PCH2000 is equipped with a Honda GX-160 cc engine which offers superior performances in a wide variety of tasks such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks.

This winch can lift a load of up to 450 kg with a single line and a pulley system doubles the strength to 900 kg.

The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required.

This system can be used to lift or lower a load.

Features

Specifications

  • Installed Capstan Size: 108 mm
  • Max Pull Capacity: 1150 kg
  • Max Lifting Capacity: 450 kg
  • Speed with Installed Capstan: 20 m/min
  • Engine/Motor: Honda GX-160 cc
  • Gear Ratio: 53:1
  • Rope Size Min: 12 mm | Max 13 mm | Ideal 12 mm
  • Dry Weight: 34.5 kg
