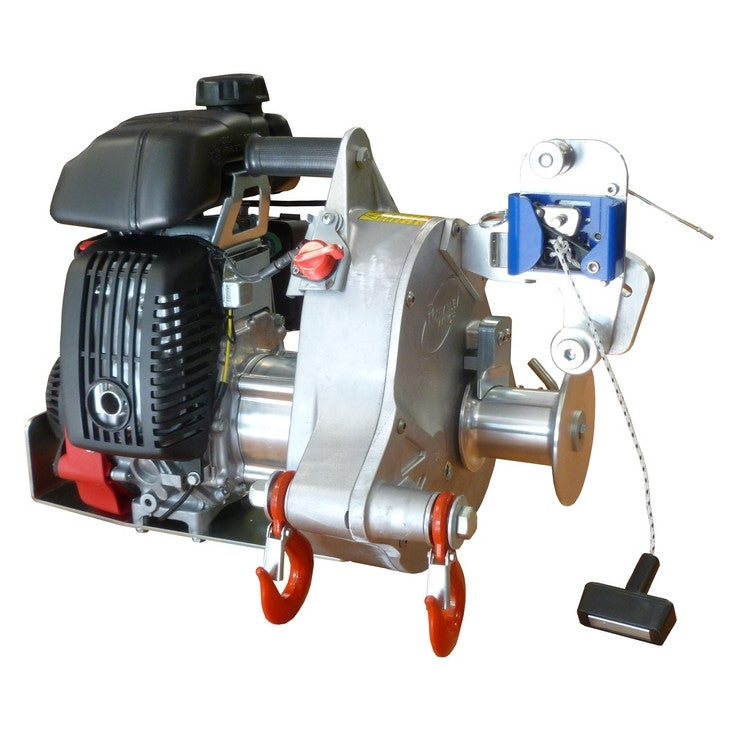

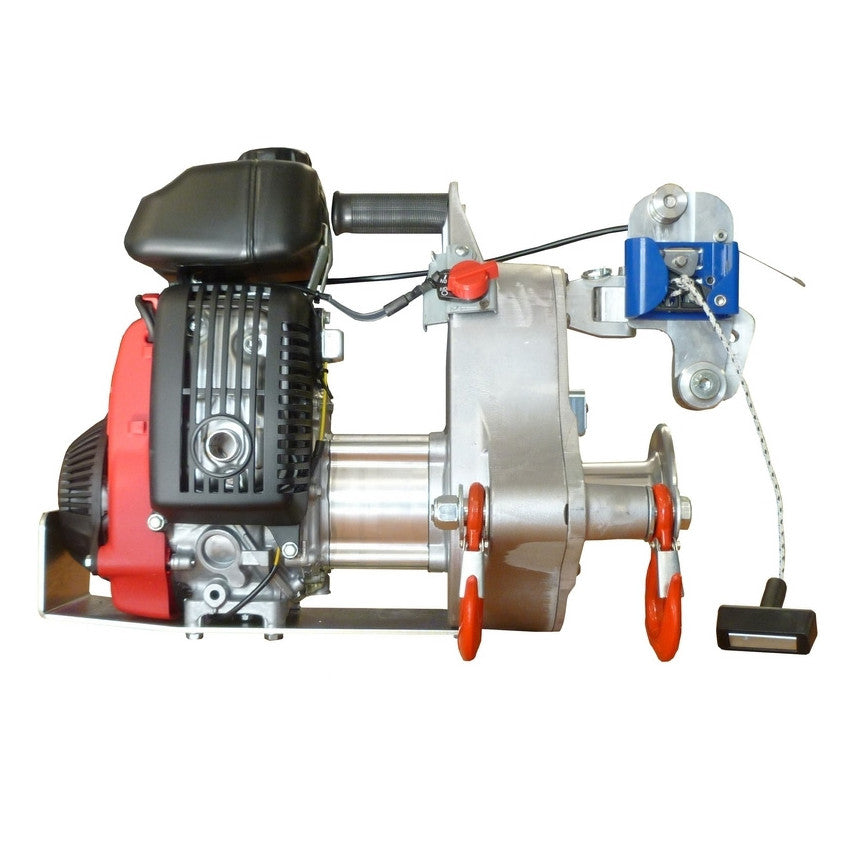

PORTABLE WINCH PCH1000 Petrol Pulling Winch (Honda GXH-50 Engine) - Pull/Lift Version

PORTABLE WINCH PCH1000 Petrol Pulling Winch (Honda GXH-50 Engine) - Pull/Lift Version

£2,676.61 + VAT (£3,211.93)
+ VAT (£0.00) £2,676.61 + VAT (£3,211.93)
Special Offer Sold out
Shipping calculated at checkout.

PW-PCH1000

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

View our shipping policy here

The PCH1000 has been designed specifically for lifting applications on a work site such as assembling telecommunications structures or installing various equipment. It can lift a load of 250 kg with a single line and a pulley system doubles the strength to 500 kg.

Its integrated rope grabbing system (brake) will hold the load in position allowing the operator to work safely.

This system can be used to lift or lower a load. A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.

Features

Specifications

  • Installed Capstan Size: 57 mm (Optional 85mm Drum Available - Reduces Load Capacity)
  • Max Pull Capacity: 775 kg
  • Max Lifting Capacity: 250 kg
  • Speed with Installed Capstan: 12 m/min
  • Engine/Motor: Honda 4-stroke GXH-50 cc
  • Gear Ratio: 110:1
  • Rope Size: Min 12 mm | Max 13 mm | Ideal 12 mm
  • Dry Weight: 19 kg
