PORTABLE WINCH

PORTABLE WINCH Vertical Pull Winch Support

PORTABLE WINCH Vertical Pull Winch Support

£645.05 + VAT (£774.06)
+ VAT (£0.00) £645.05 + VAT (£774.06)
Special Offer Sold out

PW-PCA-1264

Low stock: 1 left

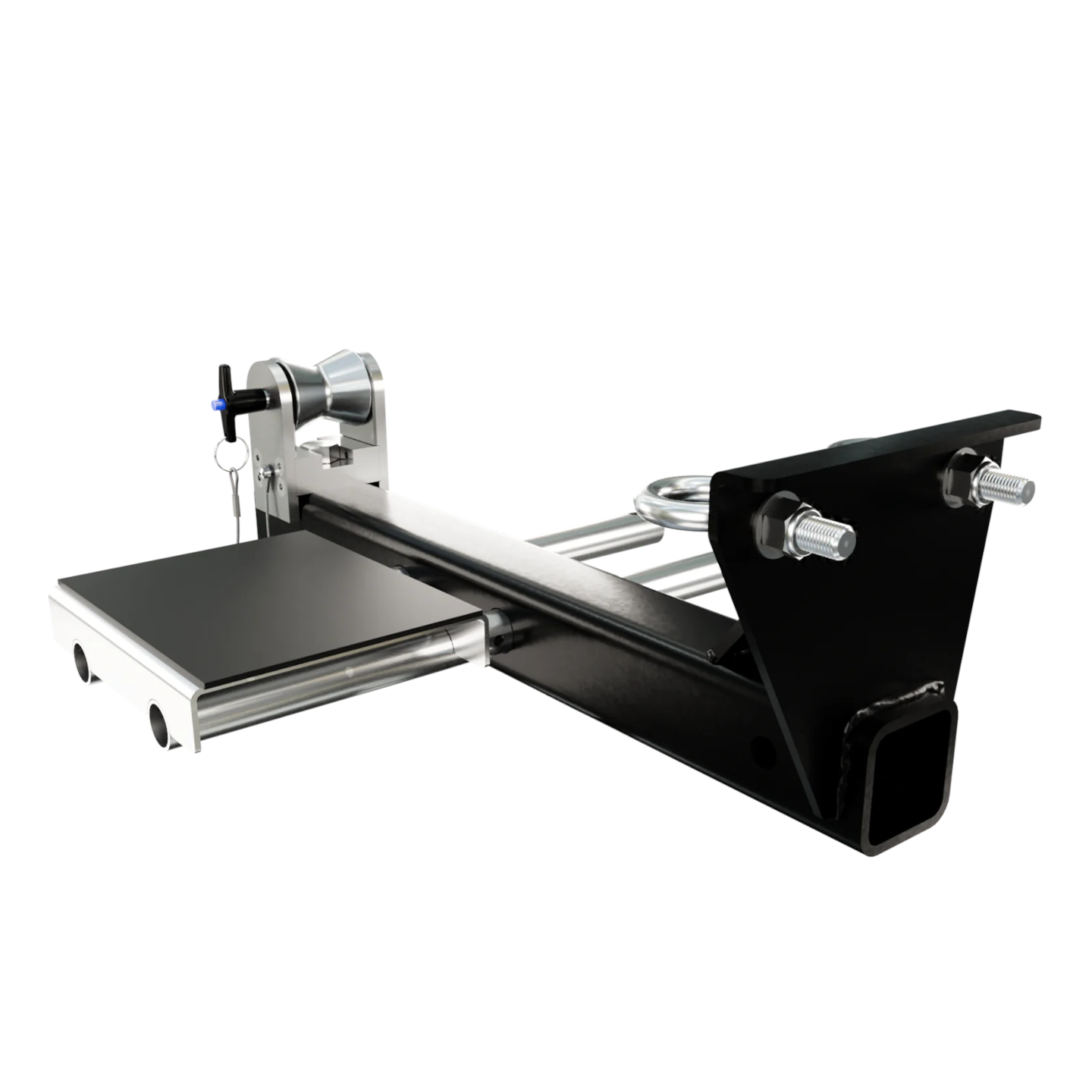

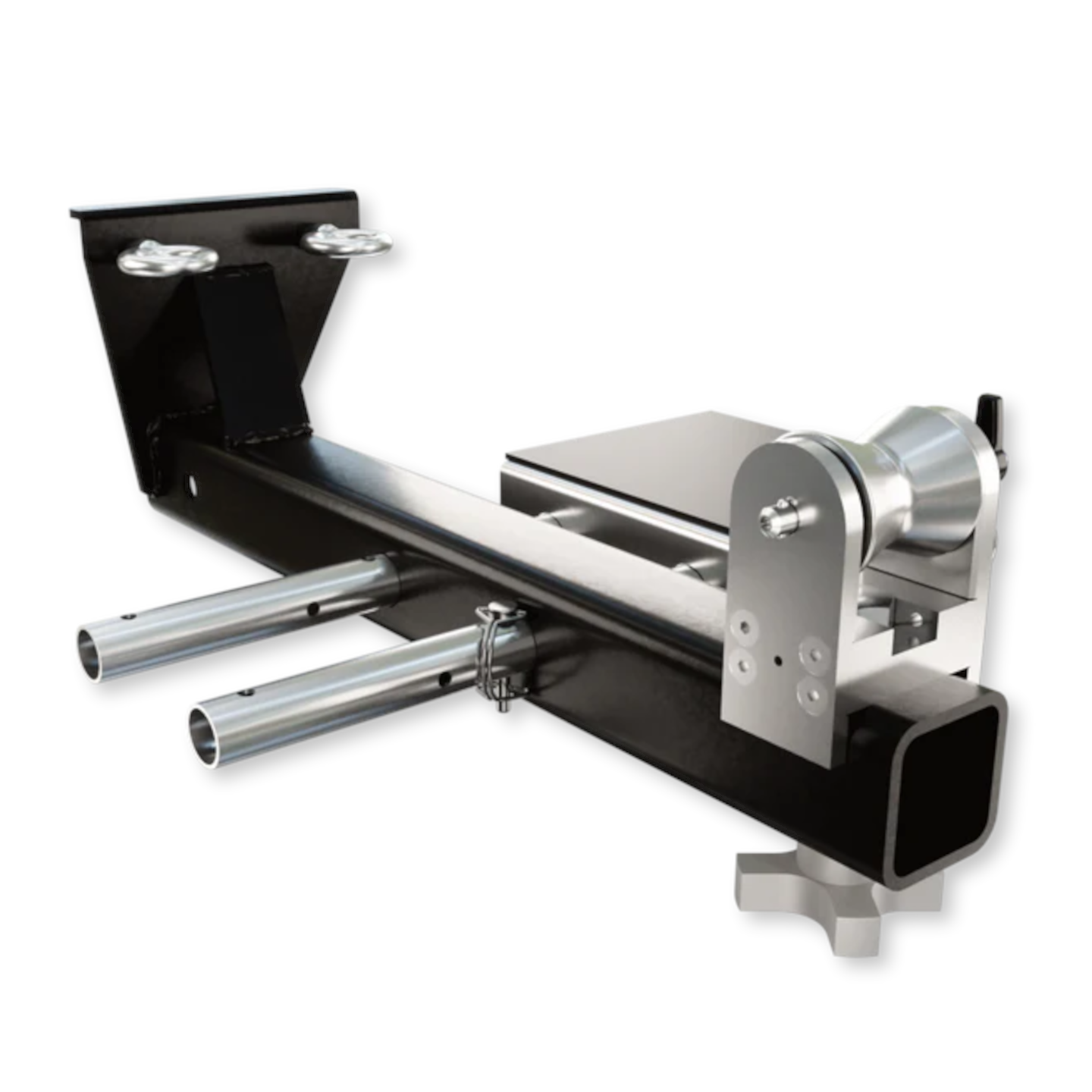

This winch support is expressly designed for vertical pulling with our winches PCH1000, and PCT1800. If you want to use the winch PCH2000, you will need to use the support PCA-2264.

It is equipped with an adjustable shelf and offers a solid and stable support allowing the winch to be properly seated. It also has a removable "V" shaped pulley mounted on ball bearings, providing optimum rotation. This pulley redirects the rope vertically at an angle to reach sections of towers or pylons far from the centre. To install the rope, simply remove the "T" handle and pulley, thread the rope, then put the handle and pulley back in place.

Although it was originally designed for lifting, note that it can also be used for pulling when combined with the pivoting anchor (PCA-1332). This accessory therefore makes the PCA-1264 very versatile.

Note that when used for horizontal pulling; the "V" pulley is not used.

Features

  • Note: The PCA-1264 cannot be used alone; it must be combined with other accessories to be used. Different combinations are therefore possible depending on the type of operation and the environment. Refer to the figures to discover all the possibilities.
  • For instance, when paired with certain accessories, it will permit horizontal pulling. In such case, the winch will face the load and the rope will be in a direct line towards the winch.
  • Whereas when combined with other accessories it will be used for vertical pulling. In these cases, the winch will face the anchor point and the rope will come from the top to the winch.

Specifications

  • Material: Steel with high resistance paint
  • Weight: 23.4 lb
  • Length: 16-7/8"
  • Height: 8-5/8"
