Castloaders 33TLX

Castloaders 33TLX

£27,975.00 + VAT (£33,570.00)
+ VAT (£0.00) £27,975.00 + VAT (£33,570.00)
Special Offer Sold out
Shipping calculated at checkout.

P33120001LXM1

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

Oversized Shipping Rates Apply

View our shipping policy here

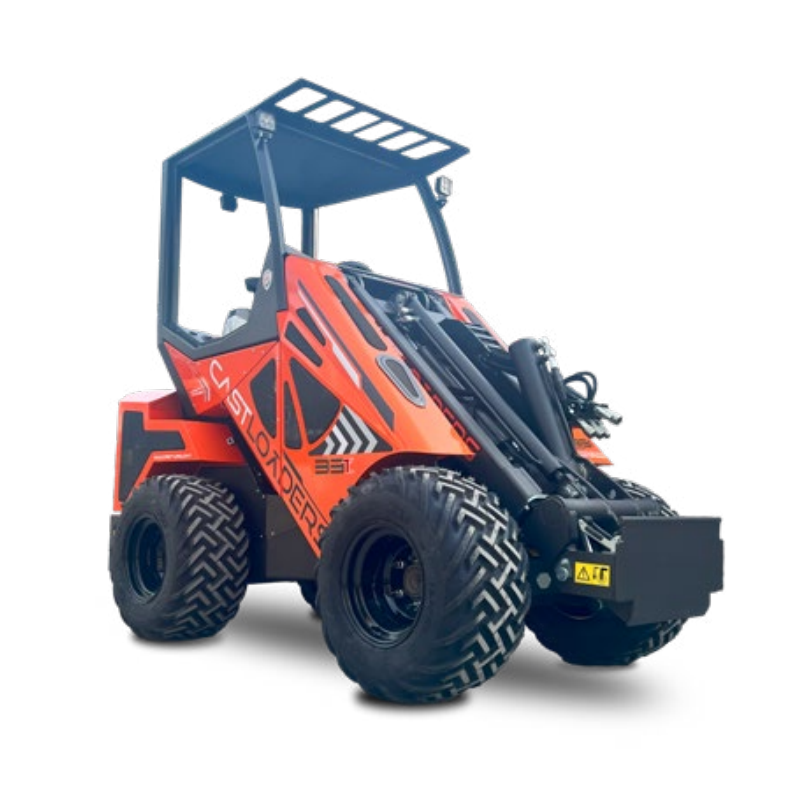

Castloaders 33TLX represents technology and innovation for the multifunctional mini-loader industry.

Well equipped and with poclain radial wheel motors, it always manages to give you maximum power.

Technical touches that make the difference distinguish our Castloaders 33T from the competition in terms of better performance.

The hydraulic parallelogram, front and rear LED headlights and the ergonomic seat with seatbelts come as standard.

Features

  • Lifting with counterweights: 1180 kg
  • Engine Power (Yanmar): 25HP
  • Hydraulic System: 50 L/min
  • Boom Height: 2980 mm

Specifications

  • Engine: Yanmar 3TNV80
  • Power: 25 Hp / 18.5 Kw
  • Hydrostatic transmission - 4WD: Standard
  • Electric differential lock: Standard
  • Water cooling: Standard
  • Hydraulic Self Levelling: Standard
  • Hydraulic system: 50 L/min
  • Joystick: 11 - function
  • 12 V power outlet + 165 W front auxiliary electric outlet: Standard
  • Working LED lights (2 front + 1 rear): Standard
  • Adjustable ergonomic seat with belts + armrest: Standard
  • Poclain single speed: Standard
  • “UNIVERSAL” coupling plate: Standard
  • Metal hoods: Standard
  • ROPS+FOPS protection: Standard
  • Telescopic boom: Standard
  • Integrated counterweights 95kg: Standard
  • Tractor wheels: 26x12.00-12
  • Weight: 1330 kg
  • Tipping load in transport position: 1100 kg
  • Max pulling force: 800 kg @ 26.5x14.00-12
  • Breakout force with boom down: 920 kg
  • Average sound power level: 99 dB/LwA
  • Guaranteed sound power level: 101 dB/LwA
  • Speed: 12 km/h
  • Yanmar 3TNV80 engine oil tank capacity: 4.2 L
  • Kubota D1305 engine oil tank capacity: 5.7 L
  • Hydraulic oil tank capacity: 30 L
