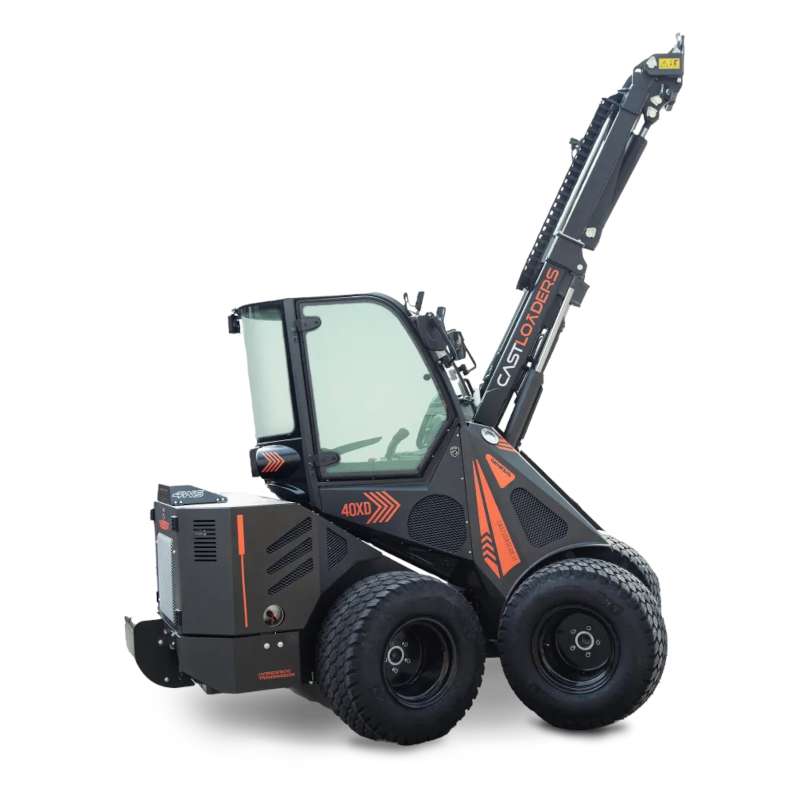

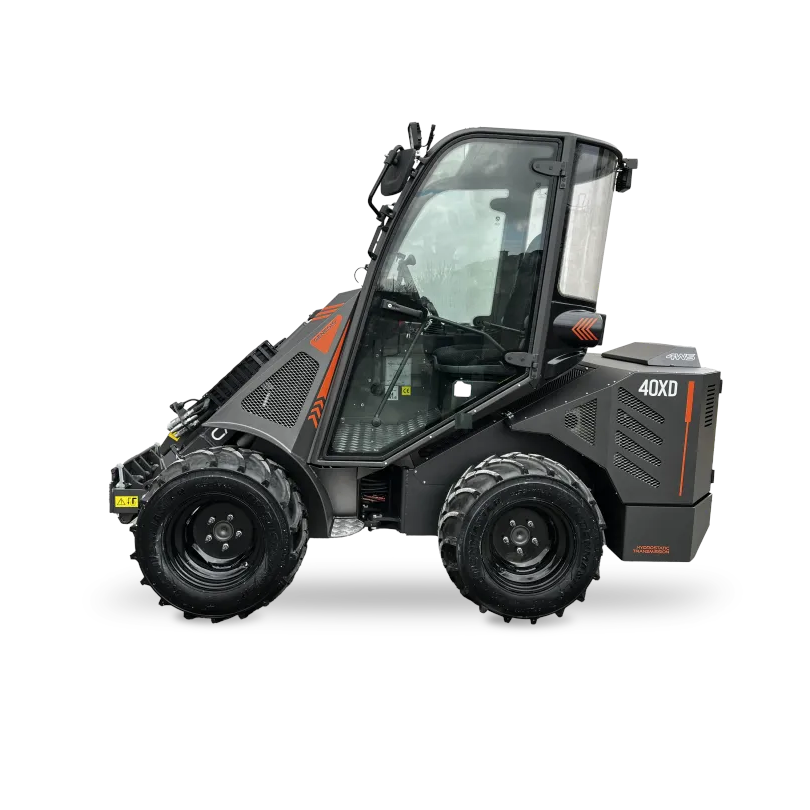

Castloaders 40XD

Castloaders 40XD

£36,855.00 + VAT (£44,226.00)
+ VAT (£0.00) £36,855.00 + VAT (£44,226.00)
Special Offer Sold out
Shipping calculated at checkout.

G40200001M1

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

Oversized Shipping Rates Apply

View our shipping policy here

Castloaders 40XD is an evolution of the proven genesis 45T model and is now the best solution for the demanding professional.

The 4-wheel drive and steering offers outstanding manoeuvrability especially in tight spaces and uneven terrain.

Stepping inside a Castloaders 40XD will be like stepping into a luxury SUV. The interior is comfortable and offers comprehensive instrumentation with a state-of-the-art electronic display.

The adjustable, comfortable seat is complete with armrest and seat belts. The cab is soundproofed and can be equipped with heating and air conditioning. 11-function joystick is standard, 15 functions as an option.

Features

  • Lifting with counterweights: 1550 kg
  • Engine Power (Yanmar Stage V): 38HP
  • Hydraulic System: 66 L/min
  • Boom Height: 3300 mm

Specifications

  • Engine: Yanmar Stage V
  • Power: 38 Hp / 28.3 Kw
  • Hydrostatic transmission - 4WD: Standard
  • Electric differential lock: Standard
  • Water cooling: Standard
  • Double Cylinder Hydraulic Self Levelling: Standard
  • Hydraulic system: 66 L/min
  • Articulated chassis with 4 steering wheels: Standard
  • Joystick: 11 - function
  • 12 V power outlet + 165 W front auxiliary electric outlet: Standard
  • Working LED lights (2 front + 1 rear): Standard
  • Digital dashboard with acoustic warnings signals: Standard
  • Ergonomic seat with belts + headrest and armrest + safety belts: Standard
  • Roof with sunshade: Standard
  • “UNIVERSAL” coupling plate: Standard
  • Front and rear metal hoods: Standard
  • ROPS/FOPS protection: Standard
  • Telescopic boom: Standard
  • Tractor wheels: 29x12.50-15
  • Weight: 1915 kg
  • Tipping load in transport position: 1500 kg
  • Max pulling force: 1260 kg @ 29x12.50-15
  • Breakout force with boom down: 1500 kg
  • Average sound power level: 99 dB/LwA
  • Guaranteed sound power level: 101 dB/LwA
  • Speed: 16 km/h
  • Engine oil tank capacity: 6.7 L
  • Hydraulic oil tank capacity: 70 L
