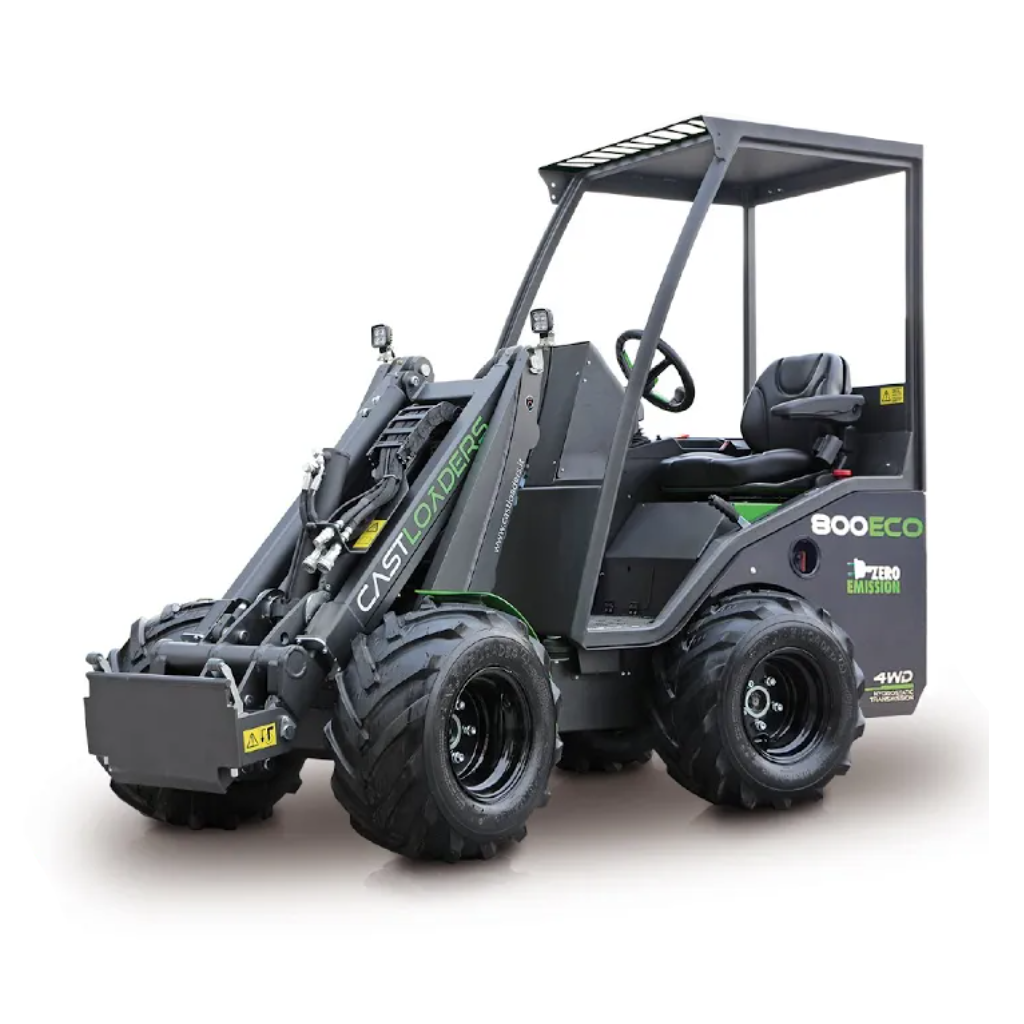

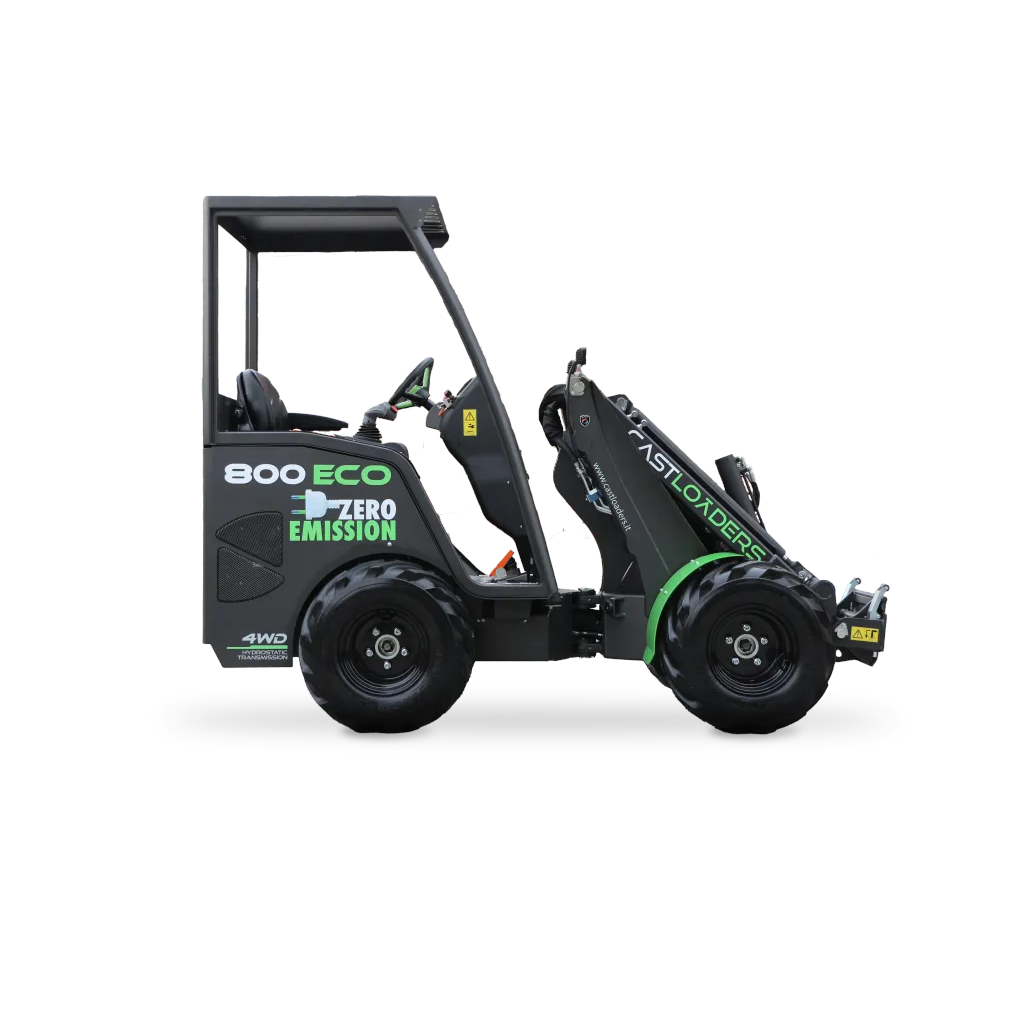

Technology and innovation packed into an extremely versatile electric mini-loader with outstanding manoeuvrability and lifting capacity.

The electronic display and 14-function joystick allow all controls to be operated intelligently and conveniently.

The generous electric motor with two permanent magnets is very quiet and the battery can offer a range of up to 7 hours depending on the intensity of use.

Cast 800 ECO is available with either a 48-volt electrolyte traction battery or a 51.2-volt lithium-ion battery with 210 Ah nominal capacity for both versions, excellent autonomy even under intensive working conditions, low weight and an extended life cycle.

Features
  • Lifting with Counterweights: 1400kg
  • Engine Power (2 permanent magnets): 15Kw
  • Hydraulic Flow Rate: 25L/min Hydrostatic Pump
  • Boom Length: 2980mm Telescopic
Specifications
  • Engine: Electric, 2 permanent magnets
  • Battery type: Traction battery
  • Rated voltage (V) and Rated capacity (Ah): 51.2 - 210
  • Power: 15 Kw
  • Hydrostatic transmission - 4WD: Standard
  • Electric differential lock: Standard
  • Water cooling: Standard
  • Hydraulic system: 25 L/min
  • Hydraulic oil tank capacity: 25 L
  • Joystick: 14 - function
  • 12 V power outlet: Standard
  • Adjustable ergonomic seat with belts: Standard
  • “UNIVERSAL” coupling plate: Standard
  • Working LED lights (2 front + 1 rear): Standard
  • ROPS+FOPS protection: Standard
  • Telescopic boom: Standard
  • Silent block: Standard
  • Tractor wheels: 23x8.50-12
  • Weight: 1525 kg
  • Tipping load in transport position: 1000 kg
  • Max pulling force: 670 kg
  • Breakout force with boom down: 980 kg
  • Speed: 12( @ 26x12.00-12) km/h
  • Hydraulic oil tank capacity: 29 L
