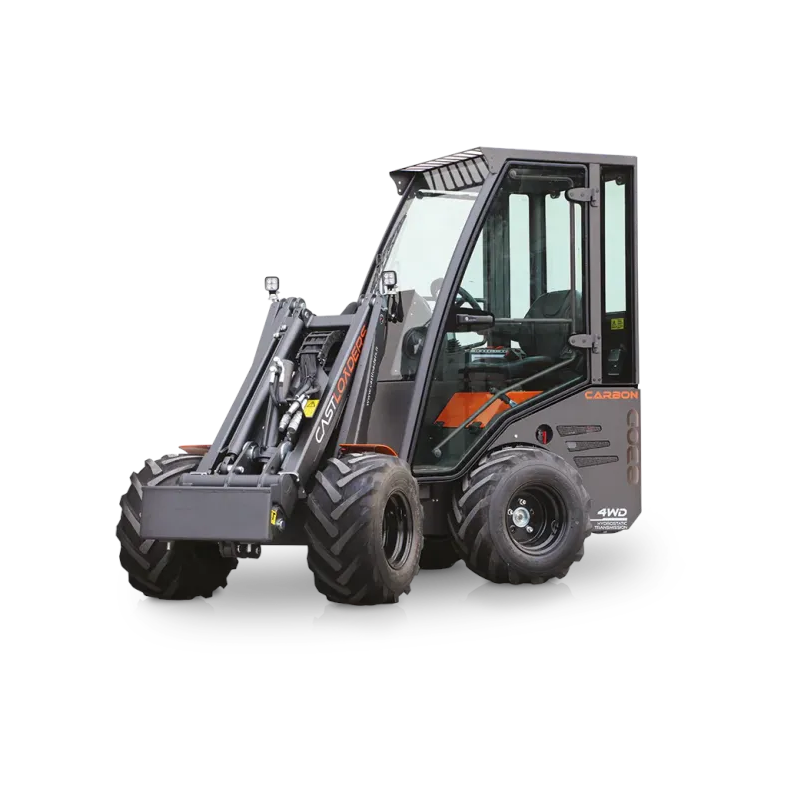

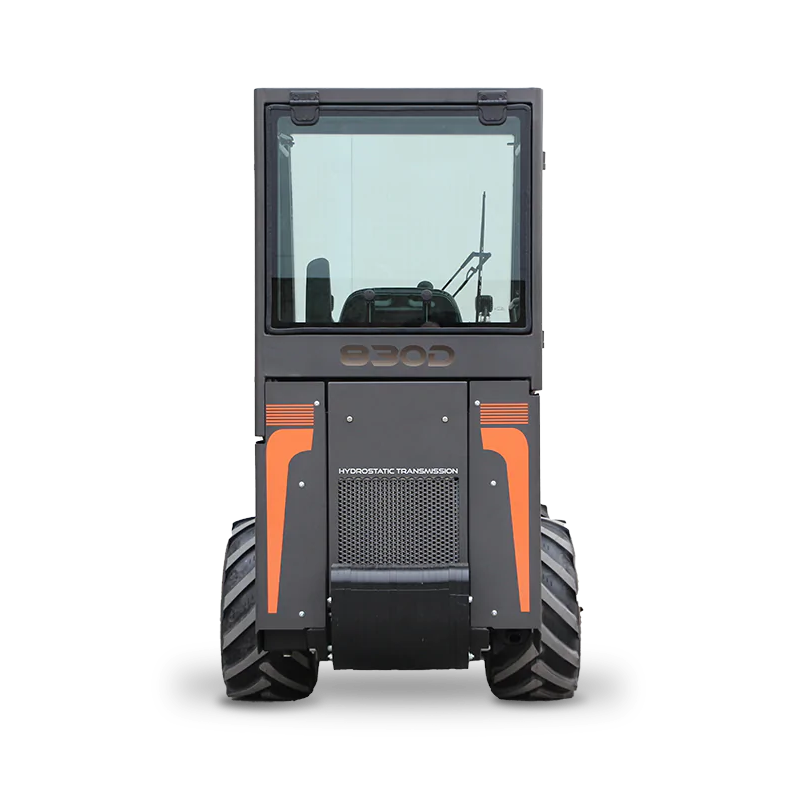

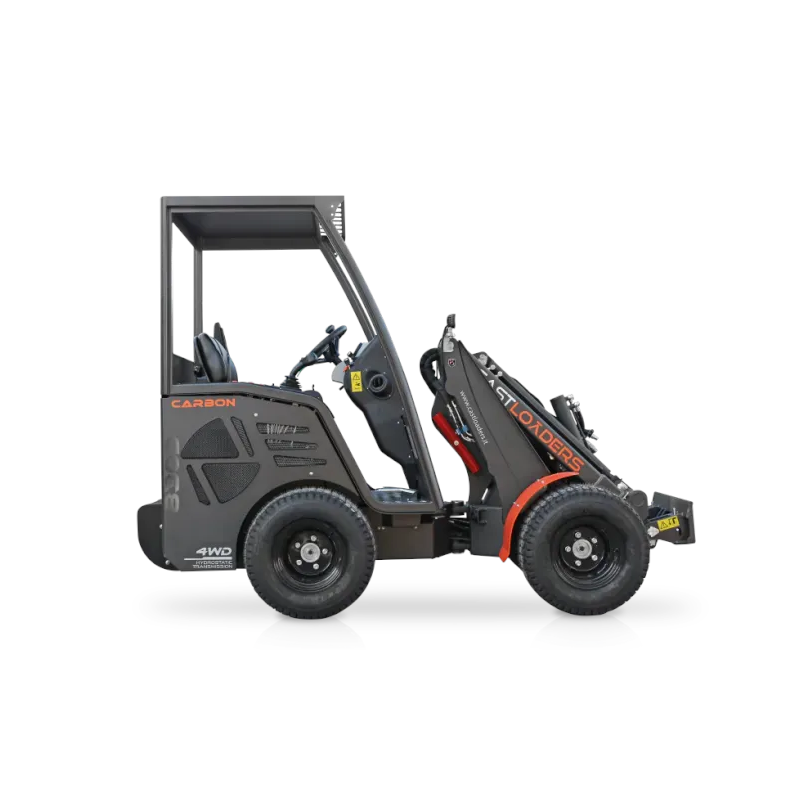

Castloaders 830D Carbon

Castloaders 830D Carbon

£29,215.00 + VAT (£35,058.00)
+ VAT (£0.00) £29,215.00 + VAT (£35,058.00)
Special Offer Sold out
Shipping calculated at checkout.

C8300001M1

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

Oversized Shipping Rates Apply

View our shipping policy here

Some of the 830D's features include a heated seat, ergonomic joystick and a telescopic arm that reaches up to 3 metres.

The driving position located above the rear wheels allows greater control of the vehicle. In addition, the silent-block system that lifts the cab from the chassis allows the operator to avoid violent shocks and vibrations.

Features

  • Lifting with Counterweights: 1300kg
  • Engine Power (Kubota D1305): 26HP
  • Hydraulic Flow Rate: 46L/min Hydrostatic Pump
  • Boom Length: 2980mm Telescopic

Specifications

  • Engine: Kubota D 1305
  • Power: 26 Hp / 18.6 Kw
  • Hydrostatic transmission - 4WD: Standard
  • Electric differential lock: Standard
  • Water cooling: Standard
  • Self Levelling: Standard
  • Hydraulic system: 46 L/min
  • Joystick: 11 - function ergonomic joystick
  • 12 V power outlet + front auxiliary electric outlet (165 W): Standard
  • Working LED lights (2 front + 1 rear): Standard
  • Comfort heated seat: Standard
  • “UNIVERSAL” coupling plate: Standard
  • Metal hoods: Standard
  • ROPS+FOPS protection: Standard
  • Telescopic boom: Standard
  • Silent block: Standard
  • Tractor wheels: 26x12.00-12
  • Rear counterweights (100 kg): Standard
  • Weight: 1380 kg
  • Special finishing with sablè paint: Standard
  • Carbon Look dashboard: Standard
  • Tipping load in transport position: 950 kg
  • Max pulling force: 800 kg (@ 23x8.50-12)
  • Breakout force with boom down: 980 kg
  • Average sound power level: 99 dB/LwA
  • Guaranteed sound power level: 101 dB/LwA
  • Speed: 16 km/h
  • Engine oil tank capacity: 5.7 L
  • Hydraulic oil tank capacity: 29 L
