The 840D is the newest evolution of Cast Group's 800 series,

implementing every technical trick suggested to make this multifunctional vehicle even more versatile and efficient.

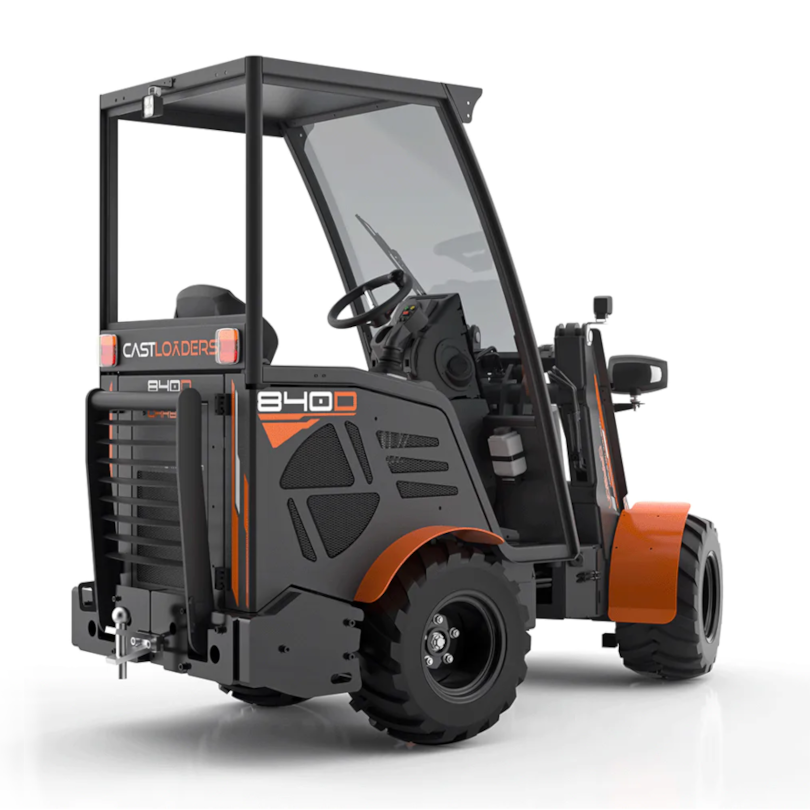

Improved tyres and a wider track width provide greater stability and superior grip, but also require adequate protection from mud splashes. For this reason, Cast Group has introduced new mud guards at the rear of the vehicle, ensuring optimal protection in all working conditions.

In line with the excellence of the 800 Series, every component has been made from high-quality materials and designed to last, offering reliability even in the most demanding situations

Features
  • Lifting with Ballasts: 1300 kg
  • Engine Power (Kubota D1305): 26HP
  • Hydraulic System: 46 L/min
  • Boom Height: 2980mm
Specifications
  • Engine: Kubota D 1305
  • Power: 26 Hp / 18.6 Kw
  • Hydrostatic transmission - 4WD: PoClain Dual Speed and anti-skid standard
  • Electric differential lock: Standard
  • Water cooling: Standard
  • Self Levelling: Standard
  • Hydraulic system: 46 L/min
  • Joystick: 11 - function joystick
  • 12 V power outlet + front auxiliary electric outlet (165 W): Standard
  • Working LED lights (2 front + 1 rear): Standard
  • Comfort seat: Standard
  • “UNIVERSAL” coupling plate: Standard
  • Metal hoods side opening: Standard
  • ROPS+FOPS protection: Standard
  • Telescopic boom: Standard
  • Silent block: Standard
  • Tractor wheels: 26x12.00-12
  • Weight: 1280 kg
  • Tipping load in transport position with counterweights: 1100 kg
  • Max pulling force: 920 kg
  • Breakout force with boom down: 1200 kg
  • Average sound power level: 99 dB/LwA
  • Guaranteed sound power level: 101 dB/LwA
  • Speed: 20 km/h
  • Engine oil tank capacity: 5.7 L
  • Hydraulic oil tank capacity: 29 L
