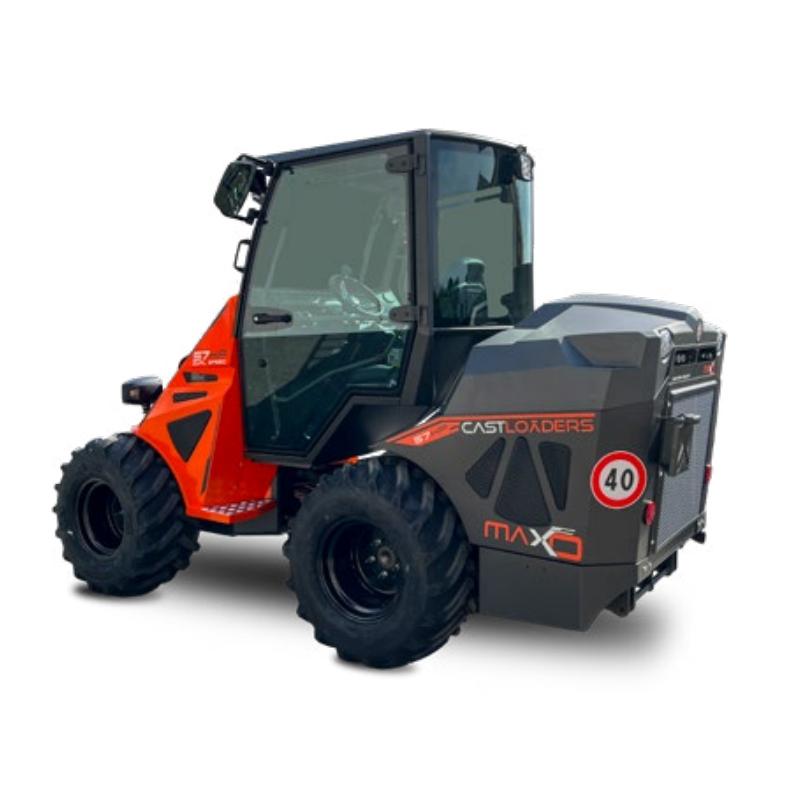

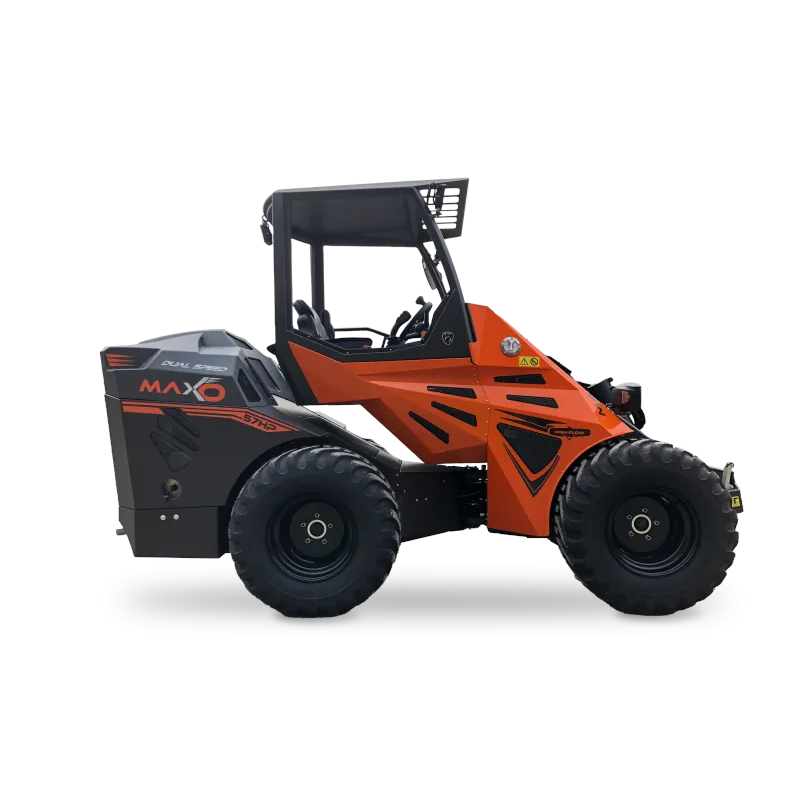

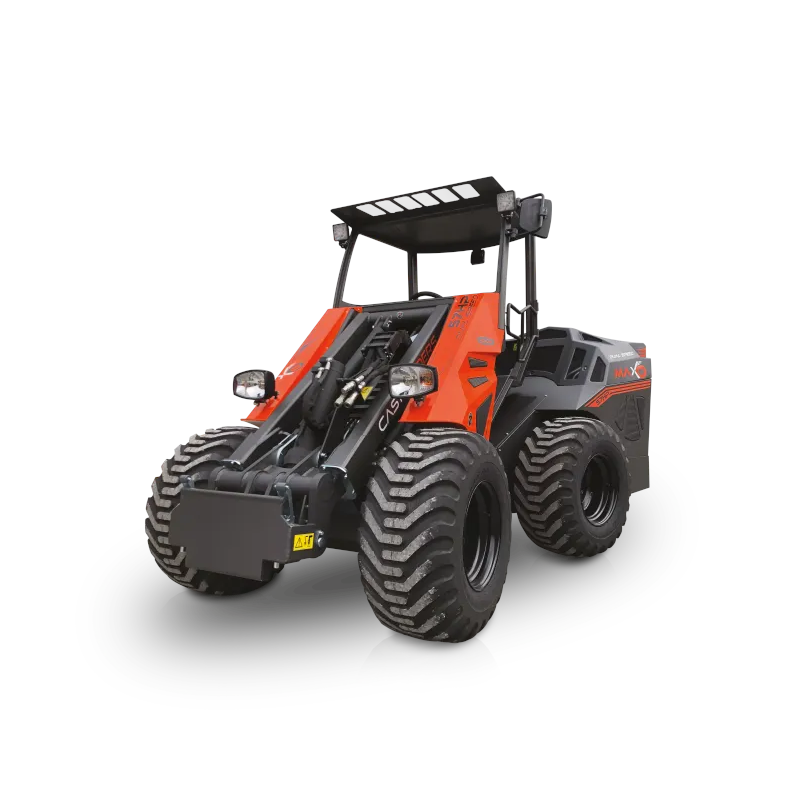

Castloaders Maxo 57HP Double Speed

Castloaders Maxo 57HP Double Speed

£45,905.00 + VAT (£55,086.00)
+ VAT (£0.00) £45,905.00 + VAT (£55,086.00)
Special Offer Sold out
Shipping calculated at checkout.

P571200002

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

Oversized Shipping Rates Apply

View our shipping policy here

Castloaders Maxo 57HP Dual Speed represents the top model of Cast Group's production today.

A very powerful and robust machine, suitable for many applications, especially in agriculture and construction. All models can be supplied with a heated cab and air conditioner.

Features

  • Lifting with counterweights: 2100 kg
  • Engine Power (Kohler KDI 1903TCR STAGE V): 57HP
  • Hydraulic System: 80 L/min
  • Boom Height: 3300 mm

Specifications

  • Engine: Kohler KDI 1903TCR / STAGE V
  • Power: 42 kW @ 2600 RPM
  • Hydrostatic transmission - 4WD: Standard
  • Electric differential lock: Standard
  • Water cooling: Standard
  • Double Cylinder Hydraulic Self Levelling: Standard
  • Hydraulic system: 80 L/min
  • Joystick: 11 - function
  • 12 V power outlet + 165 W front auxiliary electric outlet: Standard
  • Working LED lights (2 front + 1 rear): Standard
  • Digital dashboard: Standard
  • Adjustable ergonomic seat with belts and armrest: Standard
  • Poclain single speed wheel motors: Standard
  • Metal hood (front): Standard
  • Integrated counterweights 185kg: Standard
  • Tractor wheels: 31x15.50-15
  • Dimensions: 3153 x 1500 x 2138 mm
  • Weight: 2730 kg
  • Tipping load in transport position: 1800 kg
  • Max pulling force: 1500-1800 kg @ 31x15.50-15
  • Breakout force with boom down: 2600 kg
  • Average sound power level: 99 dB/LwA
  • Guaranteed sound power level: 101 dB/LwA
  • Speed: 10 - 30 km/h
  • Engine oil tank capacity: 8.9 L
  • Hydraulic oil tank capacity: 80 L
