SPIDER Cross Liner Remote Controlled Mower (Ex-Demo)
SPIDER Cross Liner Remote Controlled Mower (Ex-Demo)
SKU:XLINER
Low stock: 1 left
View our shipping policy here
Couldn't load pickup availability
The Latest and Most Compact Spider
The latest and smallest model from Spider, the Cross Liner has been developed specifically for professional use.
With integrated winch and ability to mow on slopes up to 55 degrees, the Cross Liner represents a unique combination of high performance and user-friendliness, just like the other professional Spider mowers, in a more compact size.

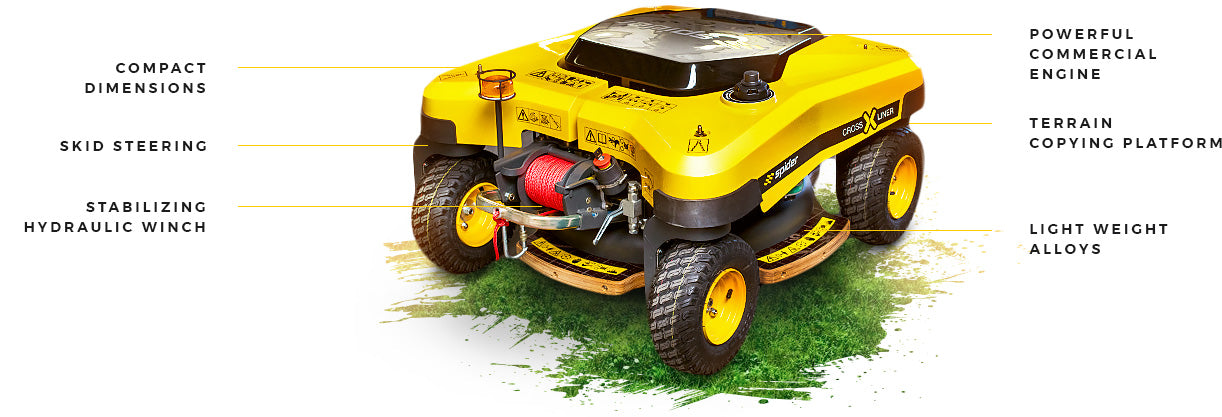

Unique Design
Main parts are made of high-quality material that gives the mower the ideal weight for mowing both frequently maintained areas and unkempt terrains.
CROSS LINER can easily cope with difficult terrains and turns around its vertical axis due to the skid steering function and unique wheel drive system. It is not necessary to turn the mower around, the unique drive system allows for all directions mowing and it is so simple to guide the mower into the next mowing line.
The sophisticated design allows you to easily tilt the mower into the service position on the side and save space during winter storage. You can also quickly and easily access the mowing deck and engine.
Universal Use
Ideal for mowing both sloping and flat terrains.
CROSS LINER perfectly follows the terrain thanks to the terrain copying platform and is very manoeuvrable. It always leaves a perfectly trimmed lawn, even in places where there are many obstacles. Its size allows it to easily pass under solar panels.
The mower is gentle on the terrain, and the low weight and unique steering system do not cause soil erosion. With the help of the stabilising winch, the mower can mow slopes of at least 55 degrees depending on the terrain.
Safety First
CROSS LINER has been designed with maximum operator safety in mind. It is equipped with a brand new clutch system with our own design, which is the only one on the market to ensure that the blade stops within 2 seconds.
The integrated stabilising winch increases stability even on the most extreme slopes.
Thanks to the remote control, the operator is not exposed to harmful vibrations, noise and exhaust emissions from the mower.
Drive System
The Honda GXV 390 is a powerful and proven engine in all working conditions and reliable while being used on extreme inclines. The engine has a four-stroke petrol single cylinder system with OHV distribution.
Max. power: 10.2 HP
Number of cylinders: 1
Cylinder capacity: 389 cm³
Starting: Electric
REMOTE CONTROL
The remote control allows the operator to always operate the machine from a safe place. In addition, the operator is not exposed to any vibrations, noise or exhaust fumes.
With the remote control you can easily control:
- engine start and stop
- change of direction and speed of travel
- engine rpm
- switching on and off the cutting blade
- emergency shutdown of the entire system
- skid steering function
Drive Unit
The hydrostatic wheel drive system ensures a smooth change in travelling speed while maintaining optimum combustion engine´s performance.
The combination of sensitive speed and direction change guarantees a precise control, high operational efficiency and, last but not least, high safety.
Dancing Step
The patent-pending machine travel design allows omni-directional mowing without the need for complicated manoeuvring.
We call this kind of movement a “dancing step” and it can simply be described as a four-wheel drive forwards and backwards, combined with unlimited wheels rotation. On a land with a rapidly changing slope and where other machines move with great difficulty, the SPIDER with its original dancing step is absolutely unbeatable.
Skid Steering
The SPIDER CROSS LINER is also equipped with the skid steering function. This type of control allows the machine to rotate around its vertical axis to simplify the machine´s handling.
Transportation
To transport the CROSS LINER you can simply use your car, truck, van or a conventional trailer.
