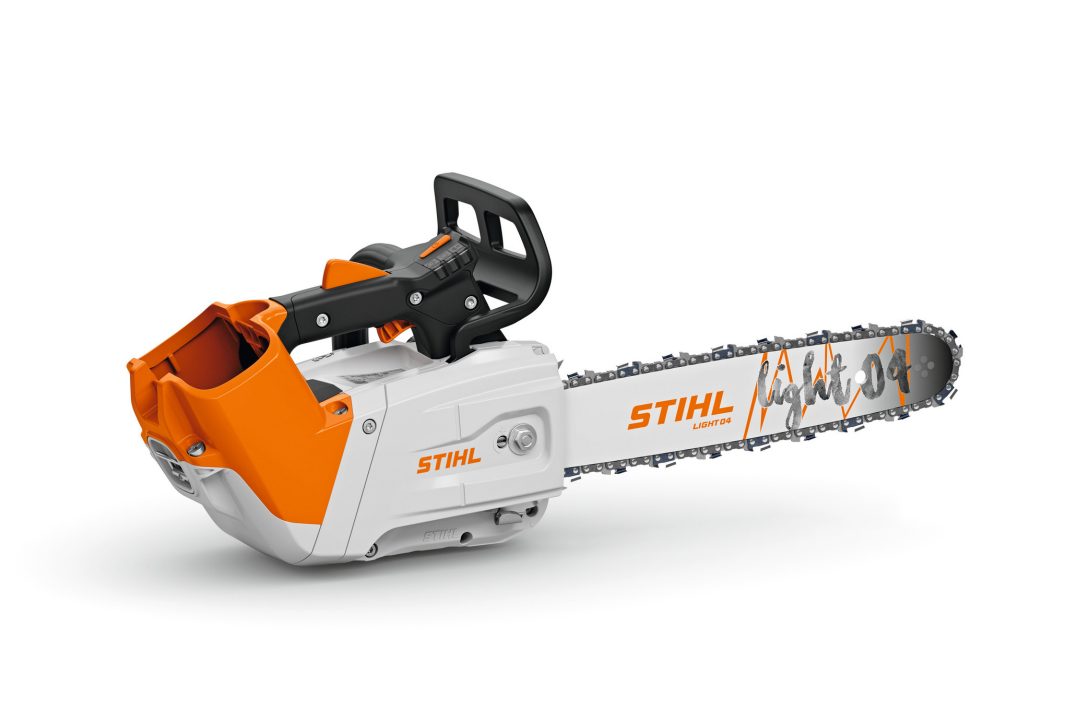

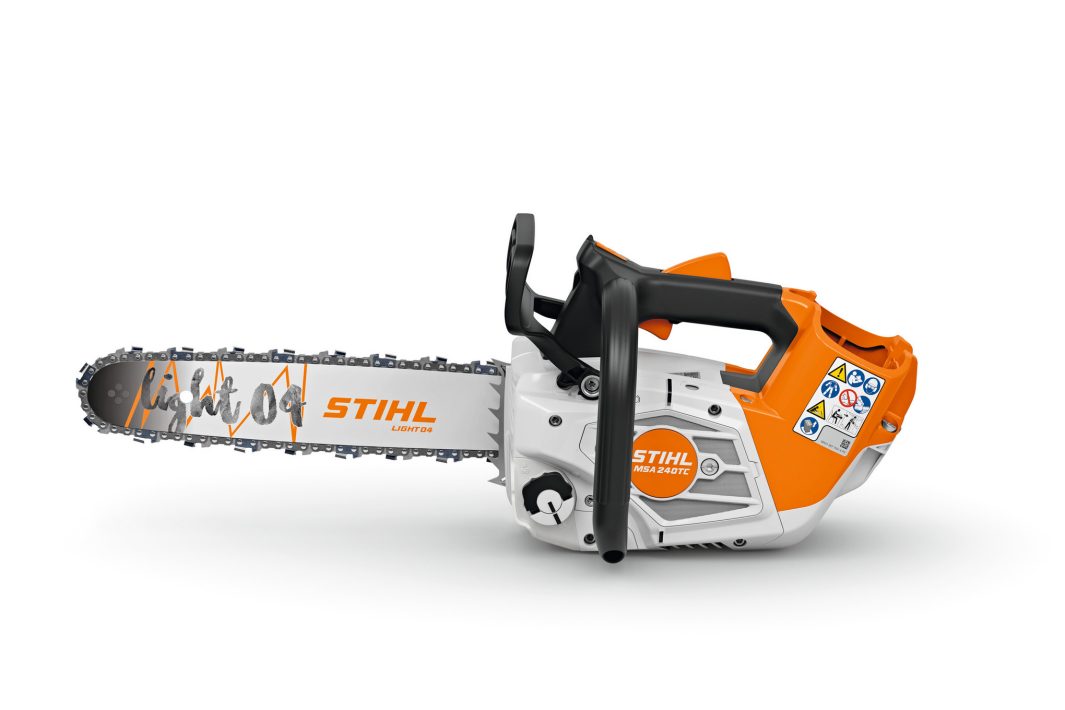

STIHL MSA 240 TC-O Chainsaw

STIHL MSA 240 TC-O Chainsaw

£587.50 + VAT (£705.00)
(Exc. VAT) £587.50 (Exc. VAT)
Special Offer Sold out
Shipping calculated at checkout.

MA012000119

Out of stock

View our shipping policy here

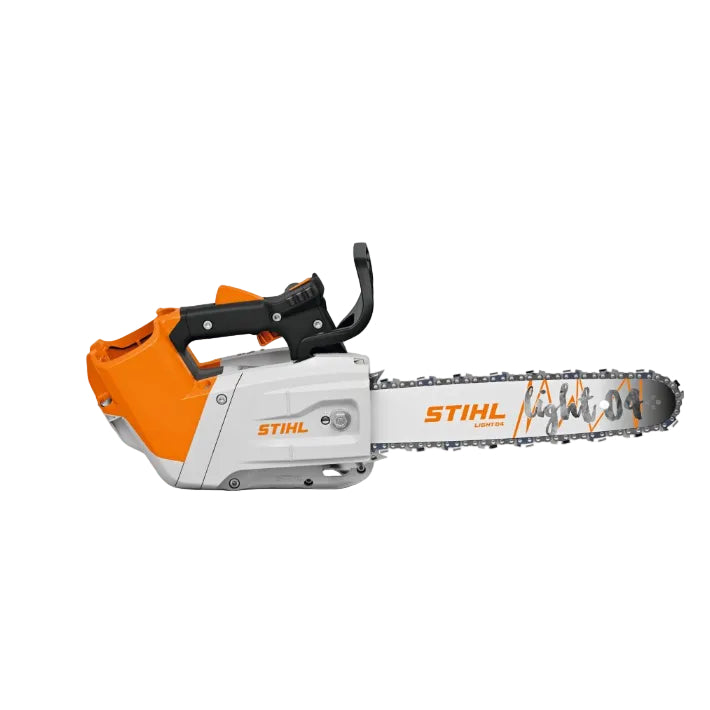

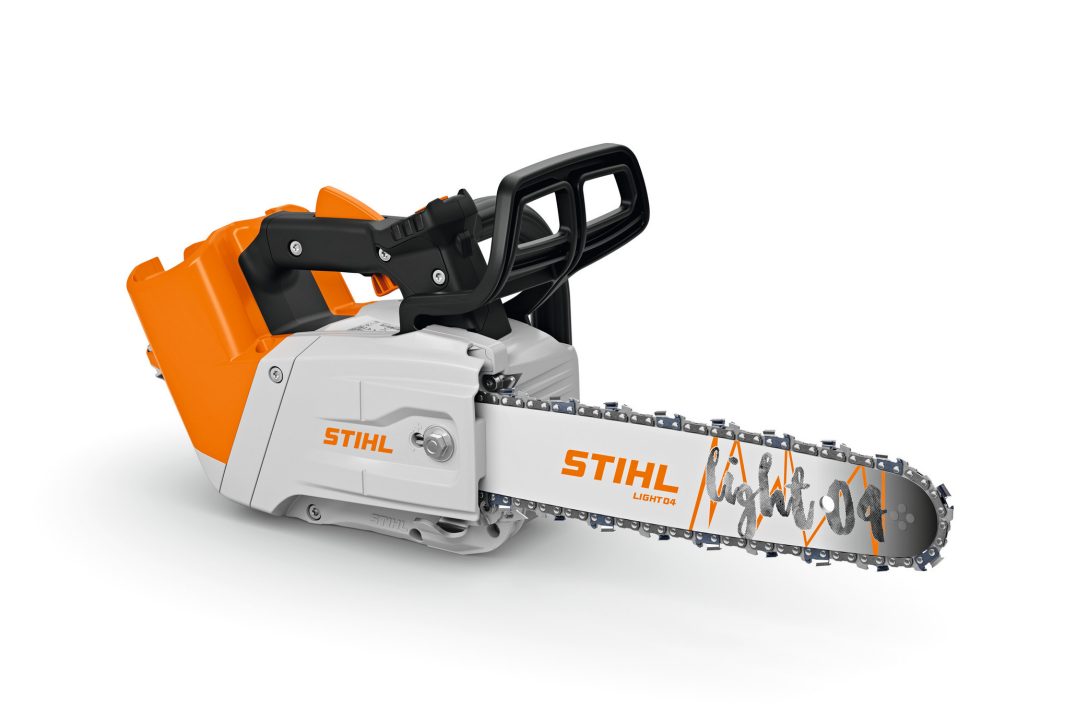

MSA 240.0 TC-O Cordless Chainsaw tool only: Lightweight top-handle cordless chainsaw with oil sensor and high-cutting performance for professional use.

The MSA 240.0 TC-O is STIHL’s most powerful cordless top-handle chainsaw and the ideal choice for removing pieces of trunk, crown correction, or removing dead wood. Part of the STIHL ALLPRO/AP System, this chainsaw has exceptional cutting performance - the highest of all STIHL top-handle chainsaws - and other features including more torque, a lighter weight and Power Boost technology.

The MSA 240.0 TC-O has 18% more torque compared to the MSA 220/220.1, which is thanks to a new STIHL motor which provides more cutting power and a lower weight. It can be used with the ALLPRO AP 200 P, which provides a lighter weight of 4.6kg vs the MSA 220/220.1 weight of 5.3kg, which greatly improves the user experience whilst working. Power Boost technology allows the chainsaw to draw from the battery's peak electrical output (1.8 kW) whilst offering a standard output of 1.25 kW.

The chainsaw has an oil sensor on an LED display which gives the user a warning when the chain oil level is low. It also has an electronic trigger system with an unlock button for simple saw activation, which leads to easy operation and the LED display on the top handle also shows information on the operating status of the chainsaw, as well as the chain brake position. It is compact and perfectly balanced in its design – when used with the ALLPRO AP 200 P battery, it counterbalances the guide bar for effortless control and reduced wrist strain.

The MSA 240.0 TC-O has an easy-to-clean air filter for long service life which has one-screw-access. For cleaning, the mesh side cover is easy to brush off.

Optimum engine cooling, excellent cutting performance, side-mounted chain tensioning, tool-free oil tank cap and a captive nut on the sprocket cover are all other features of the MSA 240.0 TC-O that make it the optimal choice for professional arborists.

Fitted as standard with the 1.3mm 3/8” P PS3 saw chain and Light P04 guide bar for increased performance. Like most ALLPRO/AP System tools, the MSA 240.0 TC-O is IPX4 rated meaning it can be used in all types of weather conditions.

The ALLPRO AP 200 P battery provides the best balance to weight ratio for the MSA 240.0 TC-O. For longer working times, you can use the ALLPRO AP 300 P battery - although this will affect the balance.

Recommended for use with the ALLPRO AP 200 P battery. Working time with the recommended battery is around 28 minutes.

NOTE: For purchase by certified arborists only.

Features

POWER BOOST

MAXIMUM PERFORMANCE INCREASE. Thanks to intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.

CONSTANT POWER

CONSTANT POWER, REGARDLESS OF BATTERY CHARGE STATUS. With other brands of battery tools, the performance usually decreases during work as the battery discharges. This is not the case with STIHL cordless power tools with CONSTANT POWER. Thanks to the intelligent electronics, your STIHL power tool works with consistently high power.

COLD START FUNCTION

RELIABLE STARTING IN COLD TEMPERATURES. Our cold start feature protects the cells by warming them up in a controlled way before delivering full power and allows them to work down to -20 degrees. This AP battery has an improved cold start feature and can deliver full power within as little as 2 minutes at -20° Celsius.

SIDE-MOUNTED CHAIN TENSIONING

FOR SIMPLE AND SECURE RE-TENSIONING. Side-mounted chain tensioning allows for protected, easy and quick chain tensioning and replacement. The tensioning screw is inserted laterally through the sprocket cover.

OIL SENSOR

FOR CONTROL AND MONITORING OF THE OIL SUPPLY. The LED display on the oil sensor shows you your oil levels. If the LED is red, there is not enough chain oil reaching the chain. When the oil supply is correct, the LED does not display.

SCABBARD

PREVENTS INJURY AND DAMAGE TO MATERIAL. The chain guard engages directly on the sprocket cover in such a way that it is firmly connected to the chainsaw. The chain guard is equipped with two eyelets so that you can easily attach it to your harness with a rope during work. This means you have your hands free and your chainsaw is always close at hand. In addition to the saw chain, the chain guard also covers the bumper spikes, to prevent injuries and material damage.

VARIABLE-DISPLACEMENT OIL PUMP

OIL CONSUMPTION BASED ON NEED. The controlled-delivery oil pump reduces your chainsaw’s oil consumption by up to 50%. To use it, simply select the E position. For very long cutting attachments or very dry wood, an additional oil volume can be set by the user.

TOOL-FREE OIL TANK

QUICK AND EASY TO USE. Thanks to the bayonet closure, you can open and close the tool-free fuel cap in just a few simple steps.

SOFT GRIP CONTROL HANDLE

FOR COMFORTABLE HANDLING. The control lever with potentiometer function allows you to control the speed of your battery-powered chainsaw on an infinitely variable basis, and in this way easily control and adjust its performance as needed. On consumer chainsaws, the potentiometer function is integrated into the throttle lever.

CAPTIVE NUTS

PROTECTION AGAINST LOSS The nuts are attached to the sprocket cover in a captive manner. This makes it impossible for the nuts to fall off and get lost when the cover is removed.

STURDY BUMPER SPIKES

FOR PRECISE CUTS. The sturdy metal bumper spikes provide chainsaws with a hold on wood, so that you can guide your cuts safely and precisely.

FOLD-OUT HOOK

SECURE HANDLING. Thanks to the fold-out hook, you can attach the tool to a suspension rope, then pull it up into the treetop or lower it down from there. You can also use it to secure the power tool. When folded away, the hook does not interfere with work or storage.

REMOVABLE BATTERY FOR EASY CLEANING

FOR EASY CLEANING. When cleaning your cordless power tool, you can simply remove the battery slot in just a few simple steps.

FELLING GUIDE

FOR ACCURATE AIMING. The chainsaw includes a raised felling guide so that you have a better sense of the direction trees will fall when felling. This enables you to precisely aim the direction of fall.

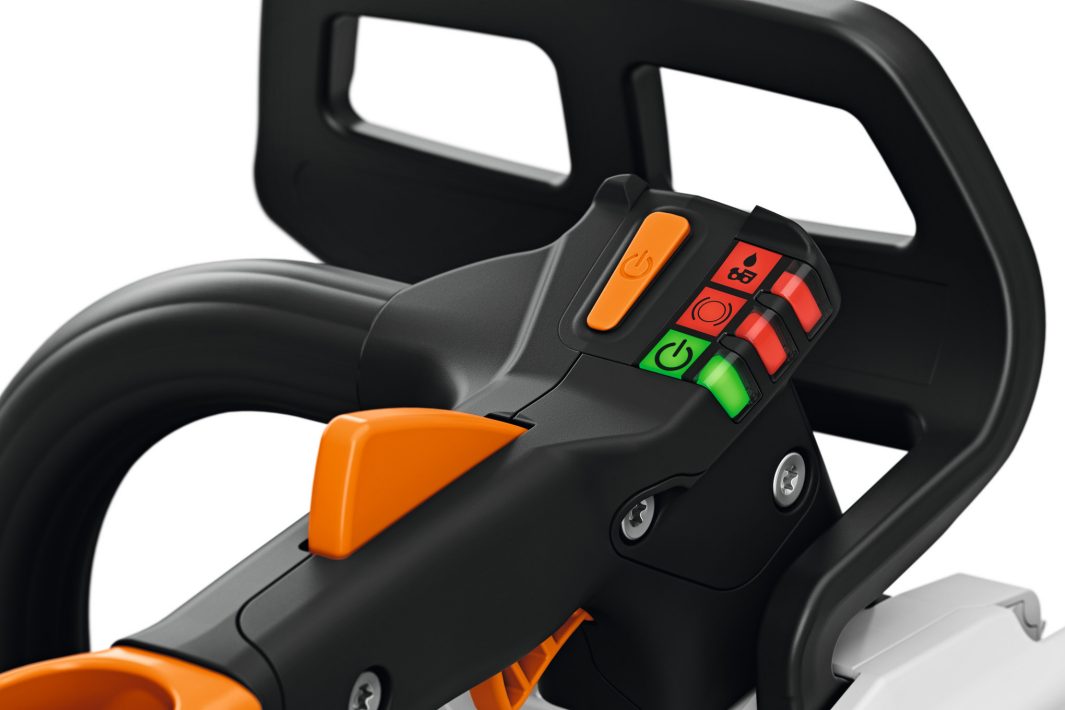

INTUITIVE CONTROLS AND A BRIGHT LED DISPLAY

IMPORTANT STATUS INFORMATION AT A GLANCE. The large LED display provides feedback on the status of important chainsaw components.

PERFORMANCE ELECTRONICS WITH DERATING FUNCTION

EFFECTIVE PERFORMANCE MONITORING. The derating function offers you two advantages in your work: first, this function protects your chainsaw against possible overheating by reducing the current. Additionally, it notifies you by means of a reduction in power if you only have very little battery power remaining. In both cases, the function allows you to finish cuts that have already started without the engine switching off.

TWO-HANDED OPERATION

ENSURES COMFORTABLE WORK. Your STIHL chainsaw has an ergonomically shaped handle and a comfortable rear control handle with soft components. Thanks to this two-handed operation, you can work comfortably, effortlessly and safely in all positions.

METAL MESH AIR FILTER

OPTIMAL ENGINE COOLING. The air filter with fine metal mesh cleans the air and in this way ensures optimum engine cooling. As it is itself easy to clean, it also offers a long service life.

EC MOTOR

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.

IPX4 CERTIFIED

SPLASHWATER PROTECTION. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splashwater from all sides. Battery-powered tools with this certification are therefore designed for daily use, even in rainy conditions.

Specifications

  • Rated voltage: 36 V
  • Max. voltage: 40 V
  • Power: 2 kW 1)
  • Battery system: ALLPRO/AP
  • Recommended battery: AP 200.0 P
  • Device weight without battery: 2.6 kg 2)
  • System weight without battery: 3.10 / 3.18 kg 3)
  • Bar length: 30 / 35 cm 4)
  • Bar length: 12 / 14 in 4)
  • Groove width: 1.10 mm
  • Groove width: 0.043 in
  • Saw chain pitch: 3/8"P
  • Max. battery working time: AP 100.0 P 21 min 5)
  • Max. battery working time: AP 20 29 min 5)
  • Min. battery working time: AP 20.1 29 min 5)
  • Max. battery working time: AP 20.1 29 min 5)
  • Max. battery working time: AP 200 S 24 min 5)
  • Max. battery working time: AP 200.0 P 25 min 5)
  • Max. battery working time: AP 30 34 min 5)
  • Min. battery working time: AP 30.1 34 min 5)
  • Max. battery working time: AP 30.1 34 min 5)
  • Max. battery working time: AP 300 32 min 5)
  • Max. battery working time: AP 300 S 26 min 5)
  • Max. battery working time: AP 300.0 P 37 min 5)
  • Max. battery working time: AP 500 S 36 min 5)
  • Device length with bumper spike: 315 mm 2)
  • Sound pressure level: 92 dB(A) 6)
  • Sound power level: 100 dB(A) 6)
  • Vibration level left: 2.4 m/s² 7)
  • Vibration level right: 2.5 m/s² 7)

1) Mechanical power as comparative value to petrol appliance
2) Without guide bar and saw chain
3) With guide bar and saw chain
4) The actual cutting length is shorter than the specified bar length
5) The indicated working times per battery charge are indicative and may vary depending on the application and operating mode
6) K-value according to Directive 2006/42/EC = 2.0 dB(A)
7) K-value according to RL 2006/42/EG = 2 m/s²
