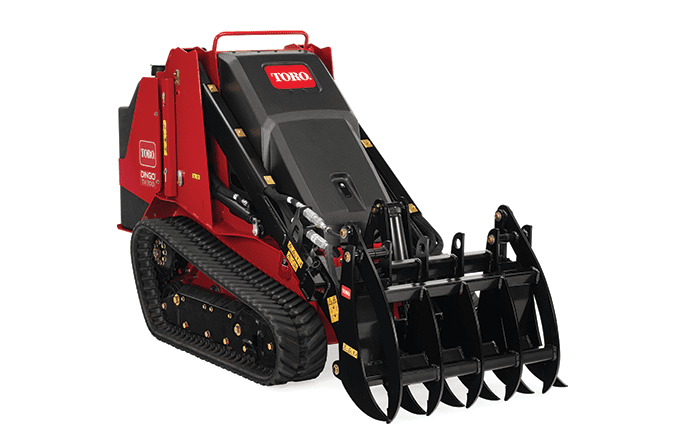

TORO Dingo TX 700 Narrow Track Loader

The Toro TX700 Overview

Designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just homeowner projects. This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where homeowners and contractors are working in confined spaces.

More details

Smaller Footprint

Thsi machine packs 700 lbs. of rated operating capacity in a smaller footprint, making it ideal for projects where homeowners and contractors need to reach tight areas or work in confined spaces.

Easy Operation

Featuring patented Dingo TX 1000 traction controls and a dedicated stand-on platform, the Dingo TX 700 is easy to use and offers increased comfort and visibility to the operator.

Job Versatility

This machine is compatible with dozens of attachments, including multiple types of buckets, adjustable forks, a grapple, leveler, utility blade and more, the Dingo TX 700 can be used for a wide range of jobs.

Specifications

• Air Filter Remote single element
  Dump Angle 42 degrees
  Dump Height (cm) 134.4
  Dump Height (inches) 52.9
  Engine Make Yanmar
  Engine Model 3TNV80F
  Fuel Tank (gallons) 5.5
  Fuel Tank (liters) 20.8
  Fuel Type Gasoline
  Ground Clearance (cm) 13.3
  Ground Clearance (inches) 5.25
  Ground Pressure 13 psi
  Ground Speed Forward (mph) 4
  Ground Speed Foward (km/h) 6.4
  Ground Speed Reverse (km/h) 6.4
  Ground Speed Reverse (mph) 4
  Hinge Pin Height (cm) 186.7
  Hinge Pin Height (inches) 73.5
  Hydraulic Flow Auxilary 13.7 gpm
  Hydraulic Flow Traction 14.5 gpm (each pump)
  Hydraulic Pressure 3,000 psi
  Loader Arms Radial
  Manufacturer’s Gross HP Rating (HP) 24.5
  Manufacturer’s Gross HP Rating (kW) 18
  Max Operating Height (cm) 246.4
  Max Operating Height (inches) 97
  Oil Capacity (liters) 3.4
  Oil Capacity (quarts) 3.6
  Overall Height (cm) 140.5
  Overall Height (inches) 55.3
  Overall Length w/bucket (cm) 261.1
  Overall Length w/bucket (inches) 102.8
  Overall Length w/o bucket (cm) 208.3
  Overall Length w/o bucket (inches) 82
  Overall Width (cm) 86.9
  Overall Width (inches) 34.2
  Rated Operating Capacity – 35% of Tip Capacity (kg) 318
  Rated Operating Capacity – 35% of Tip Capacity (lbs) 700
  Reach – Fully Raised (cm) 78.7
  Reach – Fully Raised (inches) 31
  Reservoir Capacity (gallons) 10
  Reservoir Capacity (liters) 37.9
  Tip Capacity (kg) 907
  Tip Capacity (lbs) 2000
  Track Length (inches) 126.6
  Track Length(cm) 321.6
  Track Width (cm) 13.7
  Track Width (inches) 5.4
  Tracks Camso B-Tread
  Traction Dual Hydrostatic Pump
  Weight (kg) 1250
  Weight (lbs) 2756
  Wheelbase (inches) 39
