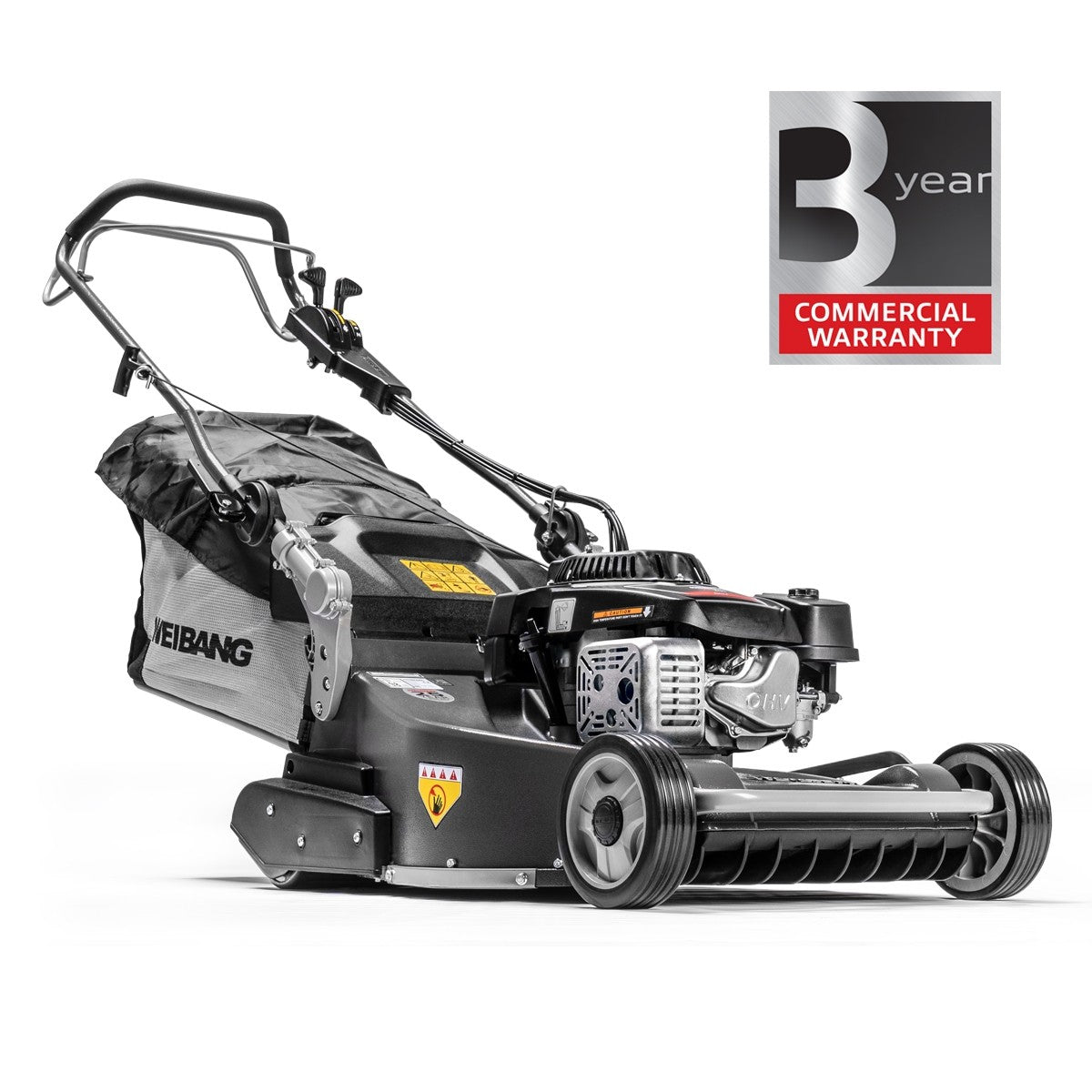

WEIBANG LEGACY 56 PRO LV

High Collection Performance:

• The large 85 litre grass collector is designed to provide optimum airflow ensuring maximum collection capabilities. The integrated air-flow fabric on the top of the collector indicates when the collector is full and requires emptying

VCT - Vibration Control Technology:

• The WEIBANG XCV200 offers an exceptionally reliable engine with professional performance. With 196cc and 3.5kW power output, the XCV200 has all the power and torque required to offer a consistently high quality cutting finish in any conditions. Thanks to vibration control technology, the engine dramatically reduces vibration levels for all day use.

Central Cutting Height Adjustment:

• The central height adjustment is supported by a heavy duty spring for assistance. With a choice of 11 positions between 13 and 67mm the Legacy is capable of tackling anything from a short formal lawn to more natural areas. The height of cut can be adjusted in 5/6 mm increments allowing for the perfect finish and stripe on any lawn.

Heavy Duty Rear Roller:

• The rear roller of the Legacy range has a unique design unlike any other roller mower. The split steel ribbed roller is connected with an industrial grade roller ratchet which is encased in a vacuum locked seal to prevent grass, dirt and water from entering. For additional durability the roller chain cover has been specially heat treated and reinforced to avoid wear during use.

PRO 3 Speed Gearbox:

• The Legacy range features our flagship PRO 3 speed gearbox, offering the ultimate in performance and reliability for the professional user. Engineered to the highest standards, the gearbox is nearly double the size of other models on the market with 3 solid gears and features a full 3 year commercial warranty.

Aluminium Cutter Deck:

• All Legacy rear roller mowers feature a high performance aluminium cutter deck in either 48 or 56cm cutting width. Designed for optimum airflow to ensure high collection performance in all conditions, the deck also features a durable hammered paint finish and a 25 year guarantee.

Innovative Energy Transfer System (E.T.S.):

• The Weibang Legacy PRO rear rollers feature an Energy Transfer System which absorbs shock through the drivetrain upon engagement ensuring a long life

5 Year Domestic / 3 Year Commercial Warranties:

• For peace of mind, this commercial quality Weibang petrol lawnmower features a 5 year domestic and 3 year commercial warranty subject to being serviced annually by a Weibang approved service dealer

• Engine: WEIBANG XCV200
• Power: 3.5kW @ 3600rpm
• Displacement: 196 cc
• Fuel Tank Capacity: 1.0 Litre
• Cutter Deck: Aluminium
• Cutting Width: 56cm / 22"
• Stripe Effect: Yes
• Work Area: up to 3000m²
• Front Bumper: Yes
• Inner Deck Protection: Removable Steel Skirt
• Outer Deck Protection: Removable Aluminium Bumper
• Quick Attach Collector: Yes
• Crankshaft Protection: Yes
• Transmission: PRO 3-Speed
• Drive Speed: 0.86 - 0.98 - 1.29 m/s
• Drive Speed: 3.00 - 3.50 - 4.6 km/h
• Collector capacity: 85 Litres
• Folding Handles: Yes
• Handle height adjustment: Yes
• Service / Storage Position: Yes
• Handle Bar Controls: Throttle & Drive Speed
• Blade Brake Clutch: Yes
• Cutting Height: 13 - 67 mm
• Cutting Height Adjustment: Central, Spring Assisted
• Number of Positions for Adjustment: 11
• Wheel / Roller Diameter: 178 / 127 mm
• Wheel Type: HD Nylon / Polyurethane
• Roller Ratchet: Yes, Heavy Duty
• Vibration Level: 3.5m/s²
• Weight: 68.5 kg
• Warranty Domestic: 5 Years*
• Warranty Commercial: 3 Years*
