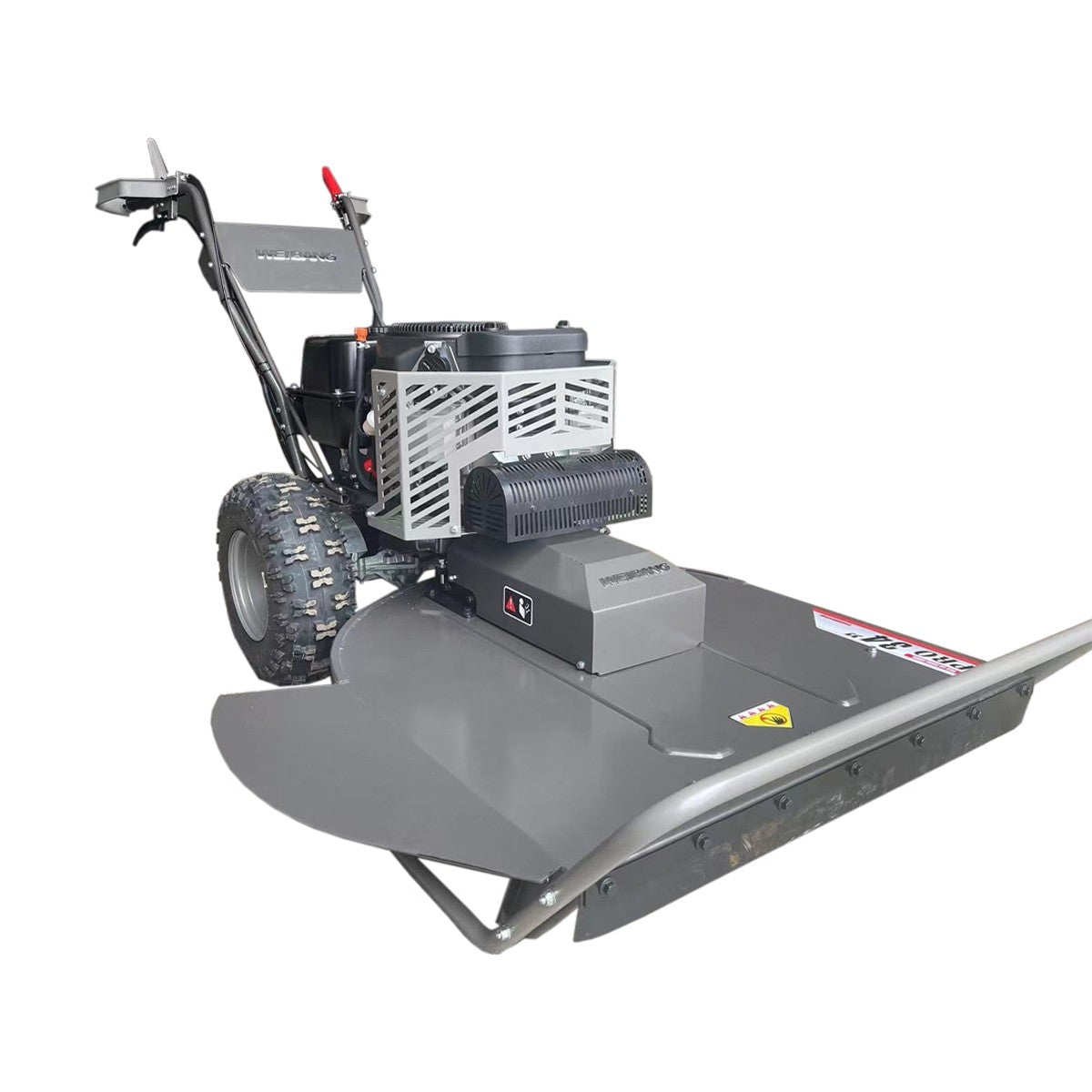

Weibang VELOCITY 86 FBM

Powered By WEIBANG:

Tall grass and brush cutting requires strong power and torque output. To ensure a consistent delivery and the highest levels of performance we chose the commercial grade WEIBANG X760 Twin cylinder engine, giving up to 17 kW of power output. To protect the engine we created a steel guard to prevent damage during use.

Heavy Duty Blade & Spindle:

The heavy duty blades offer a 86cm cutting path to clear large overgrown paths, fields and woodland with ease. The 86cm side discharge deck allows cut material to be quickly ejected and is ideal for the most demanding conditions. Fitted with a heavy duty blade and blade spindle with dual bearings to protect the crankshaft.

Pivoting Cutter Deck:

The mower deck is capable of pivoting a maximum 12.5% up and 12.5% down to cope with uneven ground and avoid scalping as well as being removable for cleaning and maintenance. Another feature of the deck is the adjustable deck skid rails* which can raise or lower the cutting height to suit conditions.

*Please Note 86 FBM features side discharge and no height of cut adjustment.

Commercial Transmission:

The Velocity Field and Brush Mowers are fitted with a commercial Peerless MST manual transmission to cope with the demands required when working in tough overgrown uneven terrain.

Powered Steering:

The Velocity Field and Brush Mowers feature powered steering for easy turning over any terrain. Thanks to the integrated drum wheel brakes, simply pull the left lever to turn left, and the right lever to turn right, with near zero-turn ability.

Independent Drum Brakes:

Each wheel features independent drum brakes which are enclosed to prevent material from entering. The brakes act as part of the power steering system, and also to safely stop the machine, with a switch to engage as a parking brake.

Large 15L Long Range Fuel Tank:

To increase productivity the Velocity Field and Brush Mowers are fitted with an extra large 15L fuel tank, allowing extended mowing times when covering large remote overgrown areas. To ensure reliability we also fitted an oversized high capacity AGM battery.

Puncture Proof Tyres:

Featuring large 18” off road wheels with a high traction tread for any conditions, the tyres are filled with a sealant to eliminate punctures when working over harsh terrain.

• Engine: WEIBANG X760 V-Twin (Loncin)
• Power: 17.0 kW
• Displacement: 764 cc
• Number of Cylinders: 2
• Fuel Tank Capacity: 15 Litre
• Wheel Drive: 3 Speed + Reverse
• Clutch: Electromagnetic
• Cutting Width: 86 cm / 34 inch
• Cutting Height Adjustment: Manual Skids
• Deck Material: 47
• Work Area: up to 6000 m²
• Drive Speed: 1.8 / 3.5 / 5.2 km/h
• Steering: Individual Wheel - Sealed Drum Brakes
• Cutting Height: 92 mm
• Wheel Diameter: 46 cm / 18"
• Wheel Type: Steel/Pneumatic
• Vibration Level: 4.5 m/s²
• Noise Level: 89 Lwa
• Weight: 198 kg
• Dimensions (LxHxW): 2200mm x 1150mm x 1215mm
• Max Working Angle: 15 Degrees
• Warranty Domestic: 5 Years (Terms Apply)
• Warranty Commercial: 1 Year Terms Apply)
