EASY PETROL POST DRIVER

EASY Easy Petrol Post Driver – with Multi Adapter Kit

EASY Easy Petrol Post Driver – with Multi Adapter Kit

£1,825.00 + VAT (£2,190.00)
+ VAT (£0.00) £1,825.00 + VAT (£2,190.00)
Special Offer Sold out

CHPD78-MULTIUKA

Available to Order (2-7 day delay)

? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

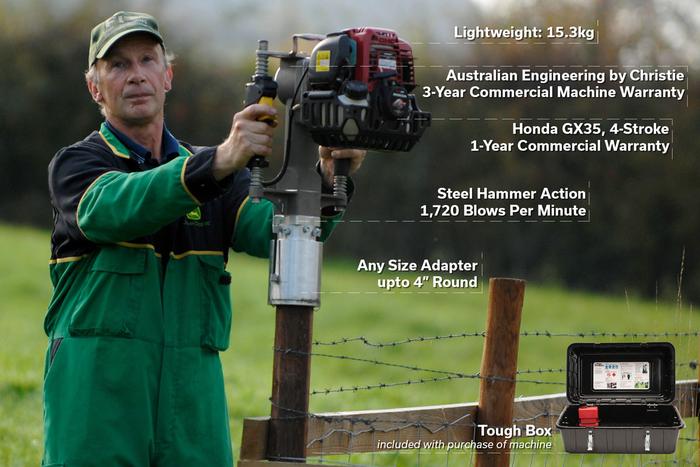

Designed to enable one man to knock any size stake, peg or post into the ground, up to a 100mm (4") diameter.

Manufactured in Australia, the high impact hammer action of 1720 BPM will drive a post into the ground in less than a minute. The power pack is the ultra-reliable Honda GX35T 4-Stroke Engine.

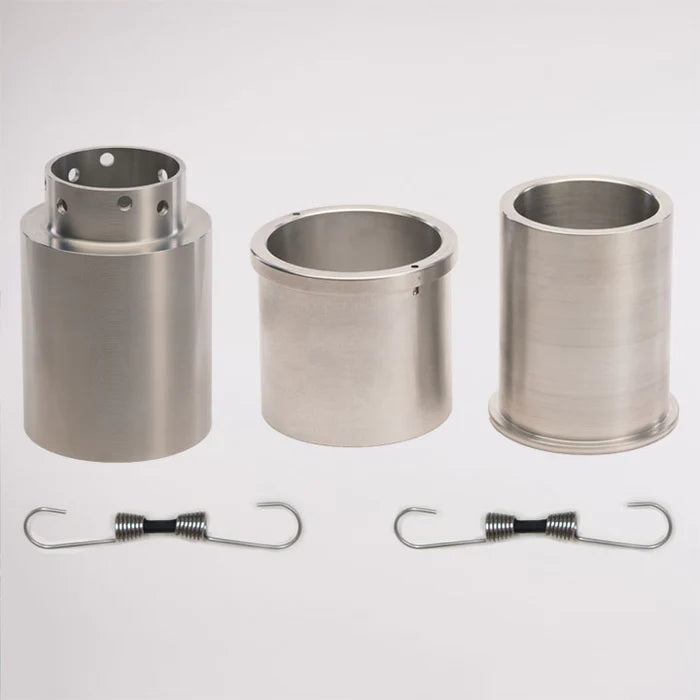

This Multi Kit version comes with 3 round adapters which slide into each other. The adapters fix to the machine with quick change bungees - a super easy tool-less system. There are 6 different size combinations to choose from.

Features

BENEFITS

  • Portable – No pipes and generators needed
  • Lightweight, only 15.3kg
  • Ideal for Steep ground and inaccessible locations
  • Physically less demanding than traditional methods
  • Can be used all day without operator fatigue

APPLICATIONS

  • Any shape from 10mm – 100mm Ø
  • Fencing – Timber and Angle Iron Posts
  • Landscaping – Tree Stakes
  • Nurseries – Tree and plant support
  • Vineyards – Especially steep hillsides
  • Farming – Sheep and cattle fencing
  • Construction – Temporary fencing/shuttering/ground pinning
  • Contractors – Tent Stakes/Ground Anchors/Signage
  • Festival/Fair Organisers – Signage/Temporary fencing

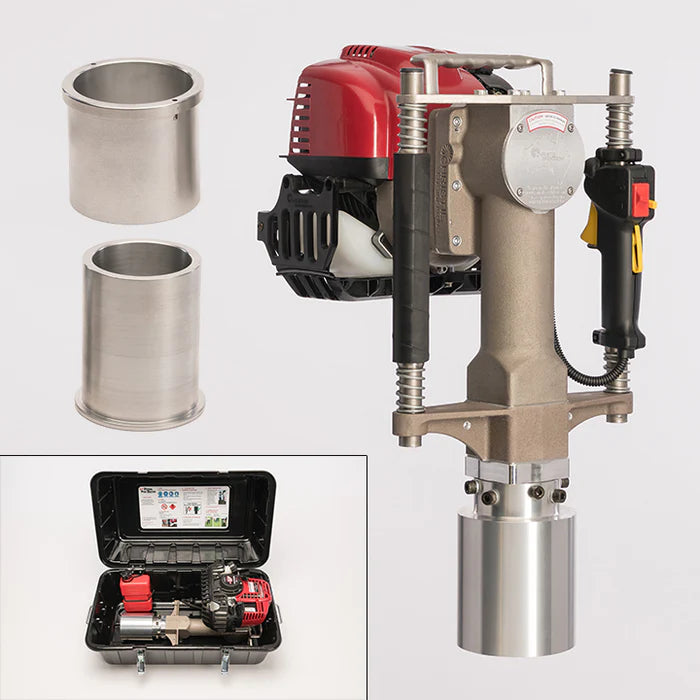

WHAT IS INCLUDED?

  • Easy Petrol Post Driver with Honda Engine
  • A Multi Adapter with 3 round adapters which slide into each other (sizes options below)
  • Tough Box and 1 litre Fuel Can.
  • Instruction and Servicing Manual
  • 6mm and 3mm Hex Key
  • 5ml Loctite
  • 50ml Crank Grease

WHAT IS THE BIGGEST POST IT CAN DRIVE?

The maximum capacity of the machine is 4” round diameter.
Our largest adapter is 107mm internal diameter.
When the ground is very dry, compacted or stony, you will need to make a pilot hole for posts larger than 78mm. This can be either by hand using a Pilot-Bar, or mechanically using either our Pilot Core Tool or a mechanical earth Auger. Posts smaller than 78mm should not need a pilot hole. Ground conditions of Clay or Chalk may also require this method.

WHAT ADAPTERS DO I NEED?

To get the most effective use from the Post Driver, the Adapter size must be a snug fit for your Posts. We recommend the Adapter must be no more than 5-10mm larger than your Post. For shaped posts; squares / t-shapes etc the outer corners need to be within this tolerance.

Specifications

Country of Manufacture: Australia

Blows per minute: 1720

Engine: Honda GX35T

Fuel consumption: 0.71 L/h at 7,000 rpm

Fuel Tank Capacity: 0.63 litres

Horsepower: 1.3 hp

Joules: 26

KW: 1.0

Net Weight: 15.3kg

Noise level: >100dB Hearing protection required

Oil Tank Capacity: 0.1 litre

Starting system: Recoil (pull start)

Vibration levels: 9.24m/s/s (100mm dia wooden post)
