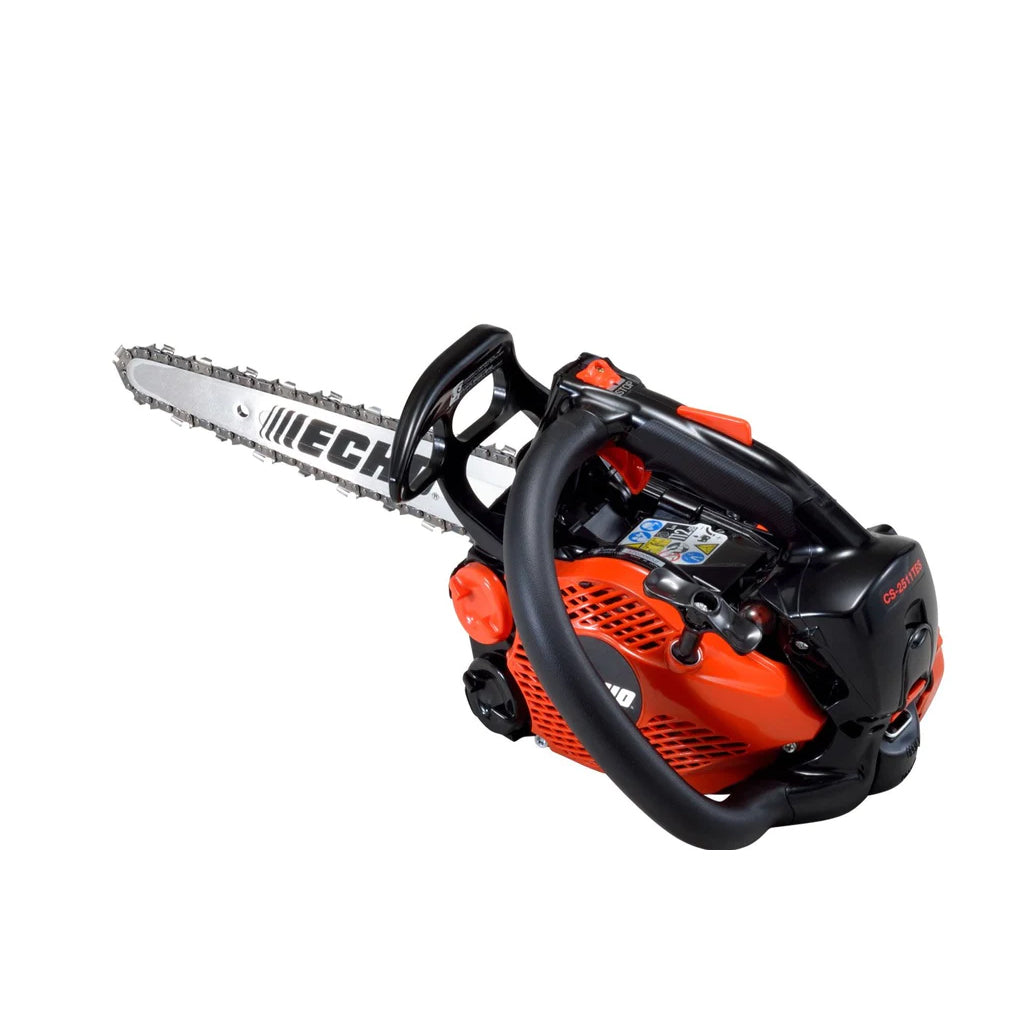

ECHO CS-2511TESC Chainsaw
ECHO CS-2511TESC Chainsaw
SKU:CS-2511TESC/25
Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.
View our shipping policy here
Couldn't load pickup availability
Due to its industry leading power to weight ration and ergonomics, the CS-2511TES has become a favourite with arborists, carvers and foresters around the world. The CS-2511TES C features a carving bar, making it ideal for pruning.
The CS-2511TES top handle arborist chainsaw is ECHO’s lightest and most compact saw. Weighing just 2.3kg (dry weight w/o bar and chain) and with an ergonomic compact design, the saw is both highly manoeuvrable and can be used for long periods with little fatigue. At the same time, the engine produces 1.10kW giving the CS-2511TES a superior power-to-weight ratio.
Innovation is the essence of ECHO and although small, the CS-2511TES is packed with innovative features. Grouped controls and a new ergonomic top handle makes the CS-2511TES a great climbing saw. A swing-out lanyard ring is positioned for superior balance and easy climbing.
Specification
| Engine displacement (cm³) | 25.0 |
|---|---|
| Output (kw) | 1.11 |
| Output (ps) | 1.51 |
| Dry Weight (kg) (undefined) | 2.3 |
| Fuel Tank Capacity (ml) | 190 |
| Chain Oil Tank Capacity (ml) | 140 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.68 |
| Priming Pump | Yes |
| Ignition System | CDI |
| Start Assist System | ES-start |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 1/4 |
| Guide Bar Gauge (inch) | 0.050 (0.043) |
| Applicable Bar Length (cm/inch) | 25 / 10 |
| Sound pressure level (dB(A)) | 99.7 |
| Sound power level (dB(A)) | 110.3 |
| Vibration Front handle/Rear handle (m/s²) | 3.5/4.0 |
