GreenMech EVO 165D

GreenMech EVO 165D

£22,335.00 + VAT (£26,802.00)
+ VAT (£0.00) £22,335.00 + VAT (£26,802.00)
Special Offer Sold out
Shipping calculated at checkout.

EVO165D

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

Oversized Shipping Rates Apply

View our shipping policy here

The EVO 165D represents everything that’s evolutionary in a chipper. We’ve listened to the industry and used all our design and manufacturing experience to develop the new 165mm capacity machine that will deliver exactly what you’ve been looking for.

Features

NO-STRESS IN-FEED SYSTEM

  • Self manages and retains a required material flow rate through the processor without blocking or stalling the machine.

COMPLIANT DIESEL ENGINE

  • The Stage V compliant diesel engine provides useable power, matched to operational needs, while retaining fuel economy.

FLOW REDUCTION VALVE

  • Allows the operator to regulate the flow of material fed into the machine and to adjust the chip size if required.

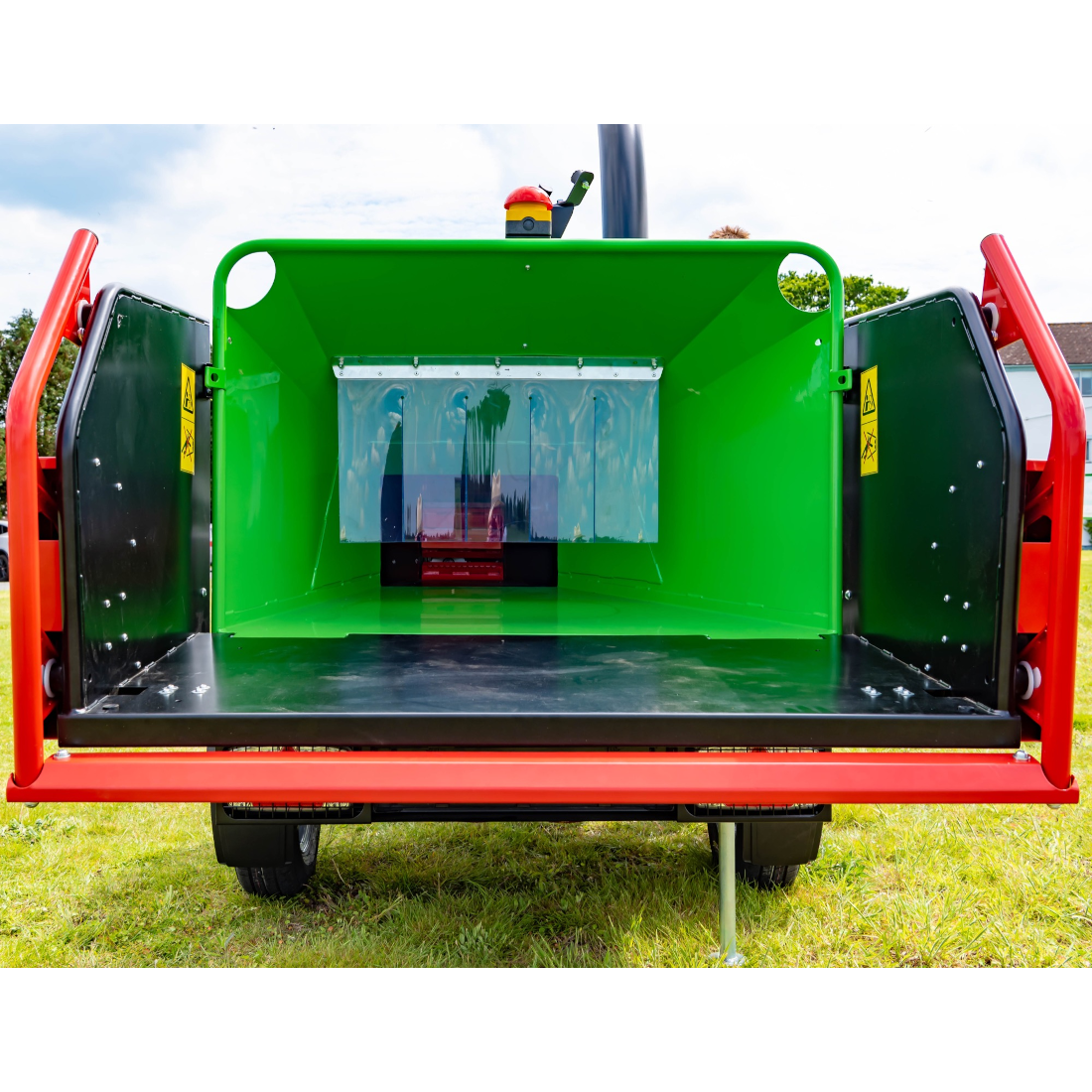

WIDE IN-FEED CHUTE

  • Reduces the time needed with the saw and helps prevent inadvertent triggering of the safety bar when feeding in wide branches.

HORIZONTAL ROLLERS

  • Gather and grip the material while offering a smooth flow into the processor with reduced lateral movement.

114 DB POWER / 91 DB PRESSURE

  • The hinged steel bonnet is lined with noise reduction material which, in combination with the disc blade system, offers one of the quietest wood chippers on the market.

Specifications

  • CAPACITY: 165mm
  • ENGINE MAKE: Kubota D 1505 18.5 kw
  • ENGINE OUTPUT: 25hp
  • FUEL: Diesel
  • CHIPPING FLYWHEEL: Disc Type
  • BLADES: 4
  • HYDRAULIC FEED ROLLERS: Twin Horizontal
  • POWER CONTROL: No Stress
  • FUEL CAPACITY (ENGINE): 33 Litres
  • HYDRAULIC OIL CAPACITY: 33 Litres
  • SPARE WHEEL: N/A
  • TONNES PER HOUR: 4.25
  • INFEED CHUTE APERTURE: 1110mm x 700mm
  • INFEED THROAT SIZE: 165mm x 220mm
  • DISCHARGE CHUTE: 280 Degrees Rotation
  • HOUR METRE: Standard
  • LENGTH (TRANSPORT): 3500mm
  • WIDTH (TRANSPORT): 1515mm
  • HEIGHT (DISCHARGE CHUTE UP): 2600mm
  • WEIGHT: 1000 kg
  • SOUND POWER LWA: 114 dB(A)
  • SOUND PRESSURE LPA: 94 dB(A)
