GreenMech EVO 205DT

GreenMech EVO 205DT

£43,980.00 + VAT (£52,776.00)
+ VAT (£0.00) £43,980.00 + VAT (£52,776.00)
Special Offer Sold out
Shipping calculated at checkout.

EVO205DT

Available to Order (2-4 day delay)? Available to Order items are ordered directly from the manufacturer. If there are additional delays we will notify you via email.

Oversized Shipping Rates Apply

View our shipping policy here

EVO 205DT features GreenMech’s tried and tested fixed track system giving 260mm of ground clearance. Each track has its own drive motor, providing a tracking speed of 3.2kph and a “Track or Chip” switch and folding platform caters for maximum operator security and comfort.

The backbone of the EVO 205D’s design is based on a deep beam, high tensile steel chassis which creates tremendous strength and ensures a robust performance. A new, generous in-feed hopper measuring 1250mm x 700mm, means that free-flow of bulky material can be handled without having to trim to a more manageable size. As the material passes through twin, horizontal feed rollers, GreenMech’s Smart Sense No-Stress system automatically manages the throughput of material to maximise chipping efficiency.

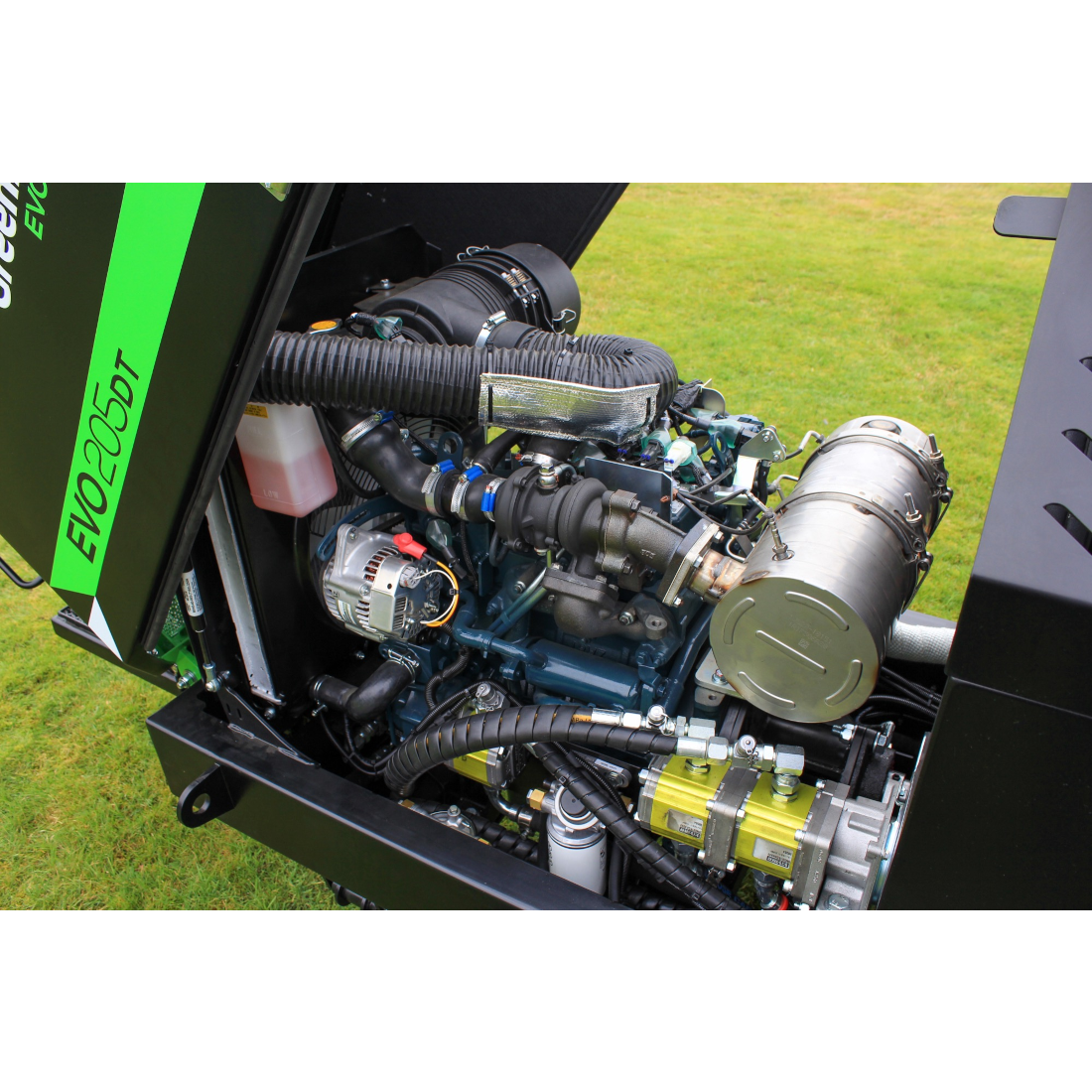

The Kubota Stage V–compliant 50hp diesel engine powers the chipping system, the heavy-duty flywheel featuring 2 banks of 3 discs. GreenMech’s renowned Disc Blade System allows rotation of each disc’s cutting edge and extends the sharpening period to only once in approximately 150 hours. This is a feature that reduces downtime, cuts maintenance and maximises working performance.

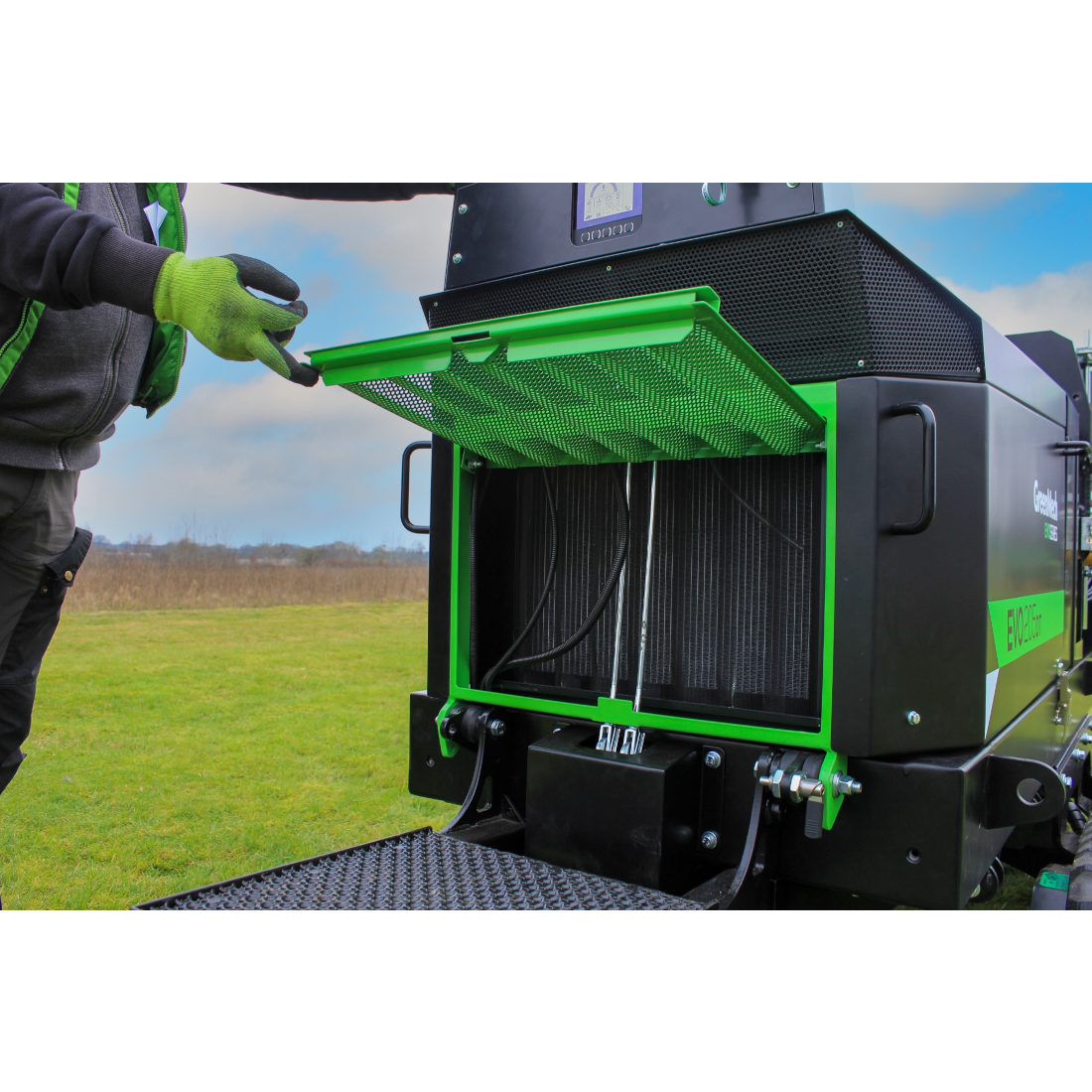

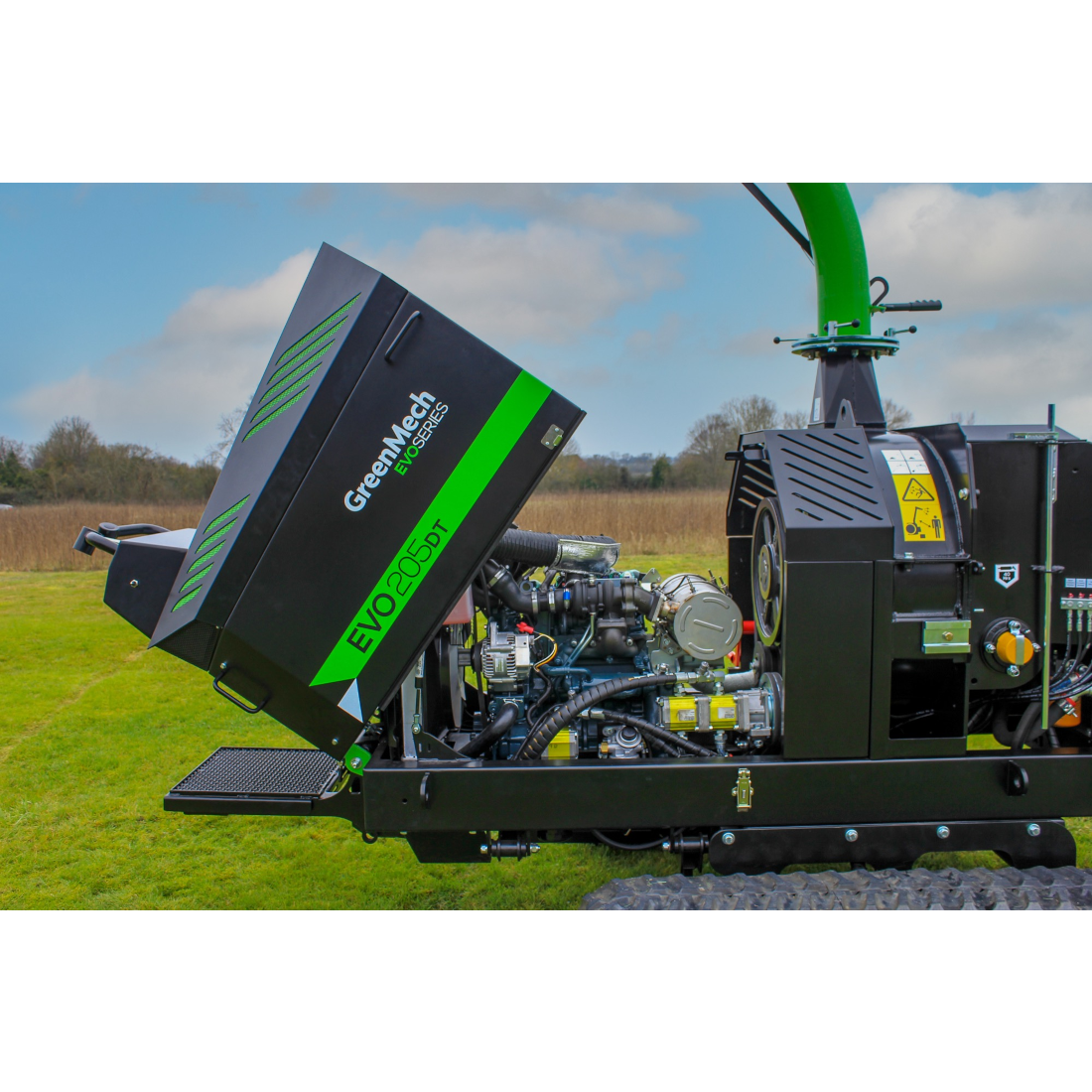

Maintenance is simple via the hinged steel bonnet, along with a centralised grease point and easy-to-remove shear bars.

Features

NEW "SMART SENSE" CONTROLLER

  • Provides “no-stress” overload protection, automatic load detection and a range of engine and chipper data to ensure optimum performance.

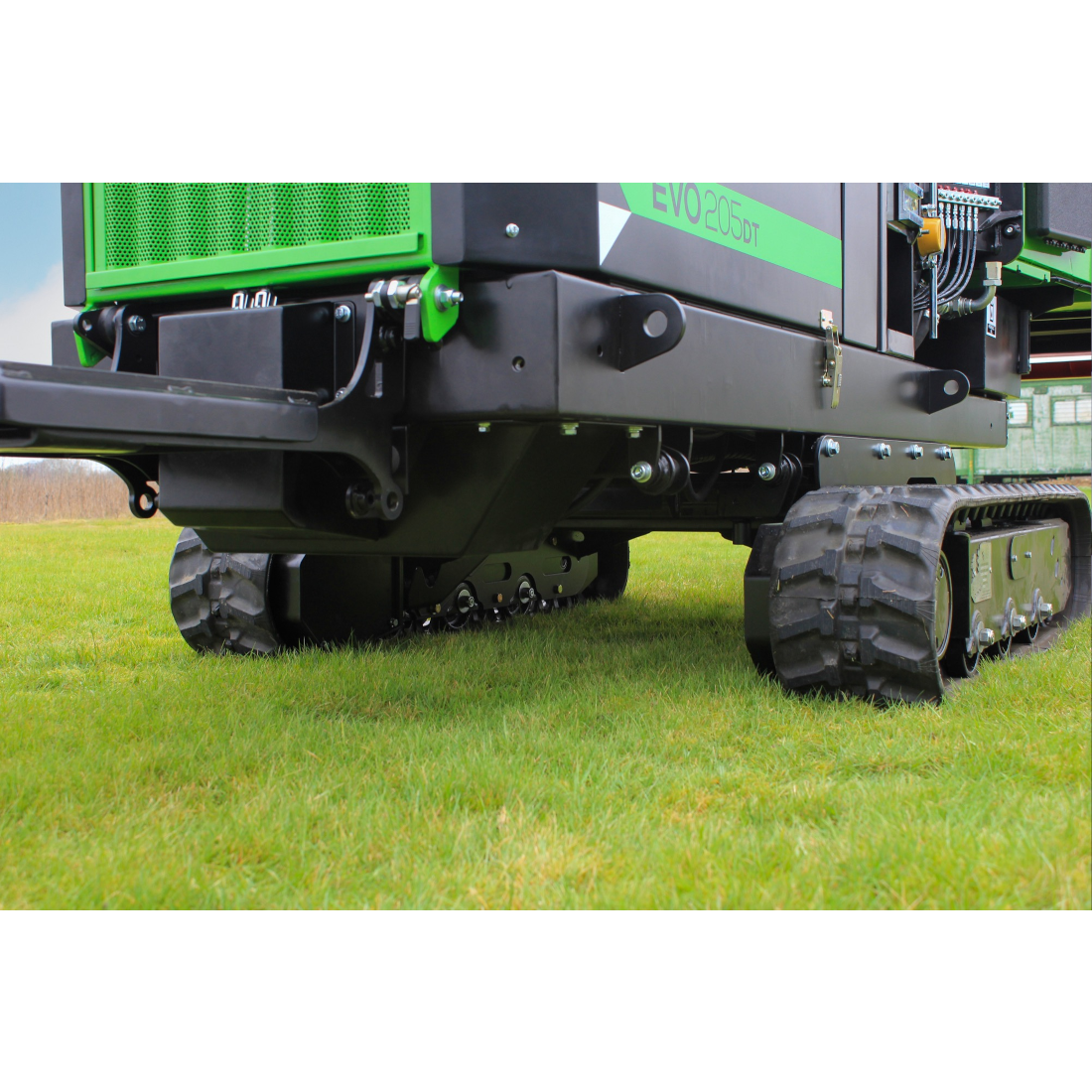

FIXED TRACK SYSTEM

  • Provides the operator with optimal manoeuvrability and stability over rough ground.

GROUND CLEARANCE

  • Clearance of 260mm helps access to sites over demanding terrain.

TRACK OR CHIP

  • Console switch ensures machine is either tracking or chipping, so minimising the risk of any accidental operation.

HORIZONTAL ROLLERS

  • Gather and grip the material while offering a smooth flow into the processor with reduced lateral movement.

TWIN TRACK DRIVE

  • Each track has its own drive motor for improved security and reliability and together provide a tracking speed of 3kph.

Specifications

  • CAPACITY: 205mm
  • ENGINE MAKE: Kubota D 1803-CR-TE4B
  • ENGINE OUTPUT: 50hp
  • FUEL: Diesel
  • CHIPPING FLYWHEEL: Disc Type
  • BLADES: 6
  • GROUND CLEARANCE: 260mm
  • TRACK SPEED: 3kph
  • HYDRAULIC FEED ROLLERS: Twin Horizontal
  • POWER CONTROL: No Stress
  • FUEL CAPACITY (ENGINE): 50 Litres
  • HYDRAULIC OIL CAPACITY: 50 Litres
  • SPARE WHEEL: N/A
  • TONNES PER HOUR: 7
  • INFEED CHUTE APERTURE: 1250mm x 700mm
  • INFEED THROAT SIZE: 205mm x 270mm
  • DISCHARGE CHUTE: 280 Degrees Rotation
  • HOUR METRE: Standard
  • LENGTH (TRANSPORT): 3770mm Platform & Flap Down
  • WIDTH (TRANSPORT): 1450mm Max
  • HEIGHT (DISCHARGE CHUTE UP): 2730mm Max
  • WEIGHT: 1700 kg
  • SOUND POWER LWA: 118 dB(A)
  • SOUND PRESSURE LPA: 91 dB(A)
