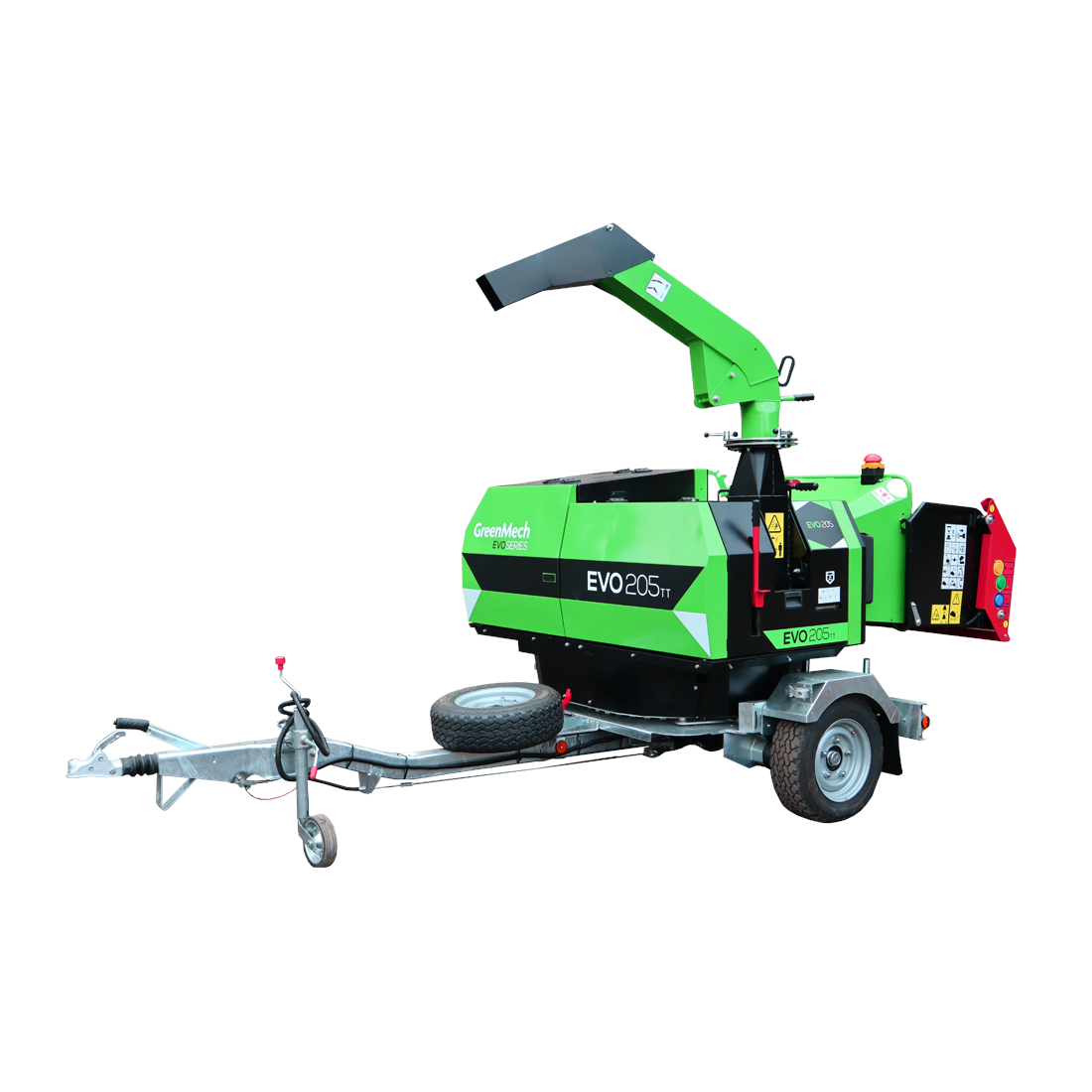

GreenMech EVO 205TT

NEW “SMART SENSE” CONTROLLER

• Provides “no-stress” overload protection, automatic load detection and a range of engine and chipper data to ensure optimum performance.

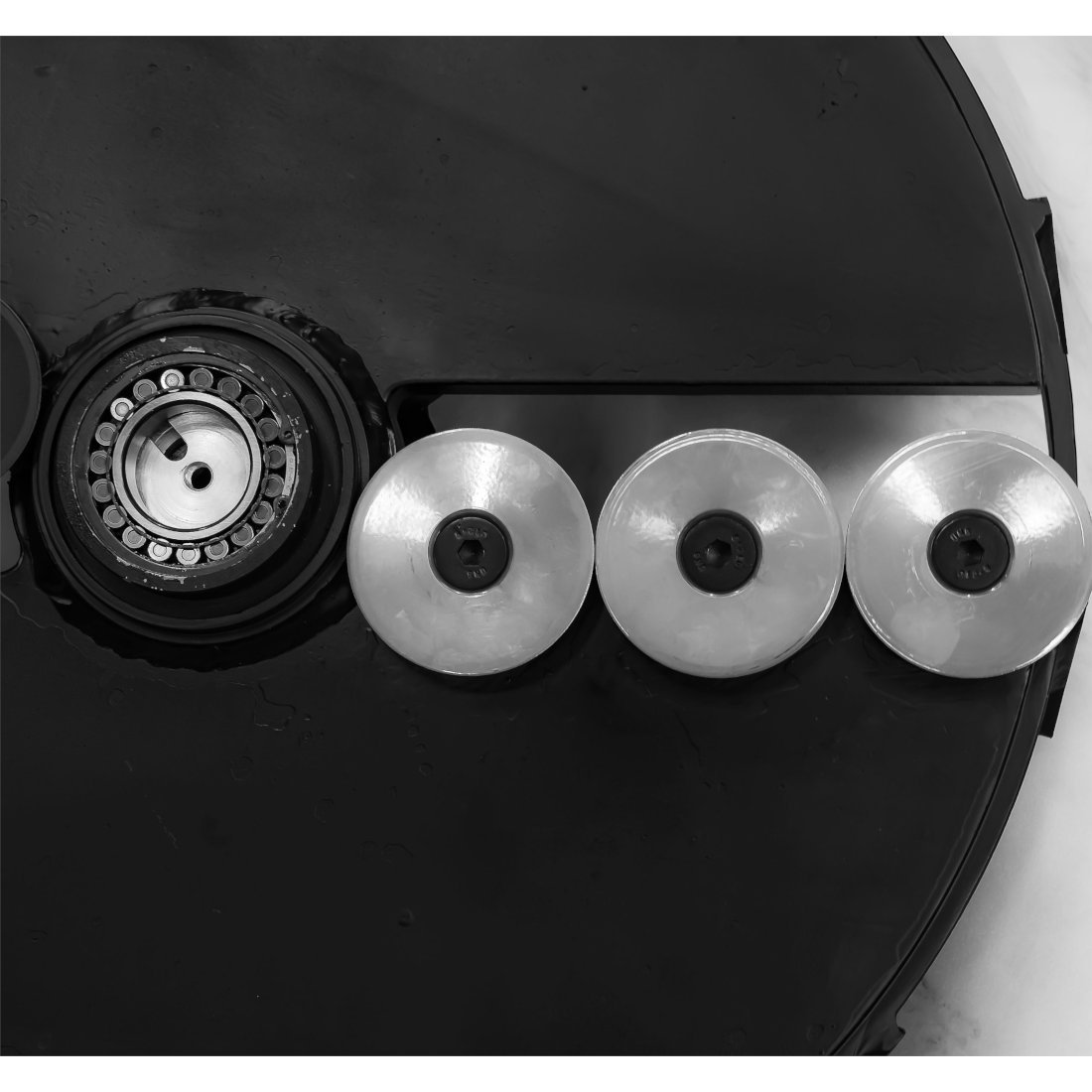

6 BLADE HEAVY DUTY FLYWHEEL

• Installed on a 126kg flywheel, The 6 Disc-Blades allow rotation of the cutting edge and extend the sharpening period to only once in approximately 150 hours.

360 DEGREE ROTATION

• Allows the operator to find the safest position for the machine infeed with up to 44 different positions throughout the 360 degrees of rotation.

WIDE IN-FEED CHUTE

• Reduces the time needed with the saw and helps prevent inadvertent triggering of the safety bar when feeding in wide branches.

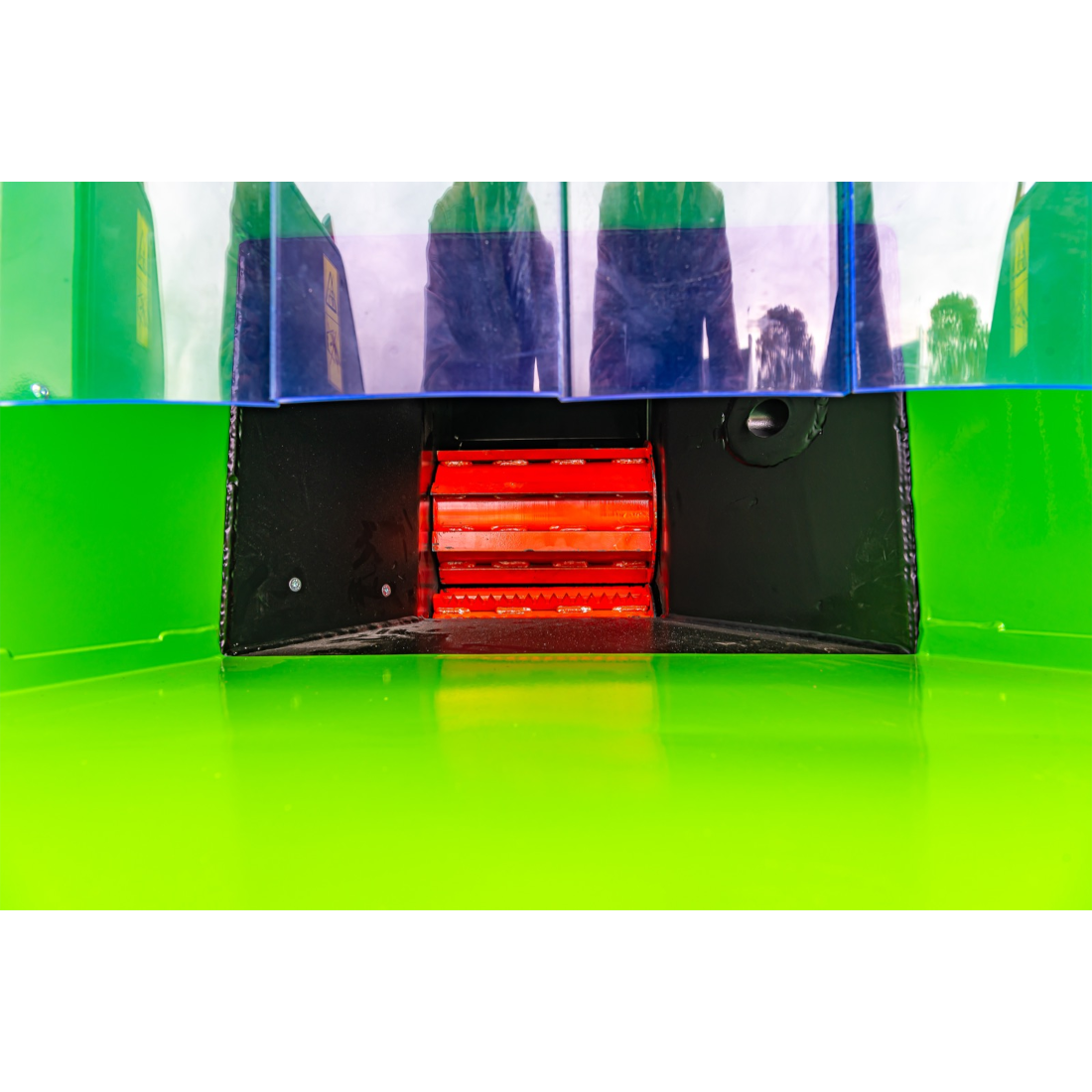

HORIZONTAL ROLLERS

• Gather and grip the material while offering a smooth flow into the processor with reduced lateral movement.

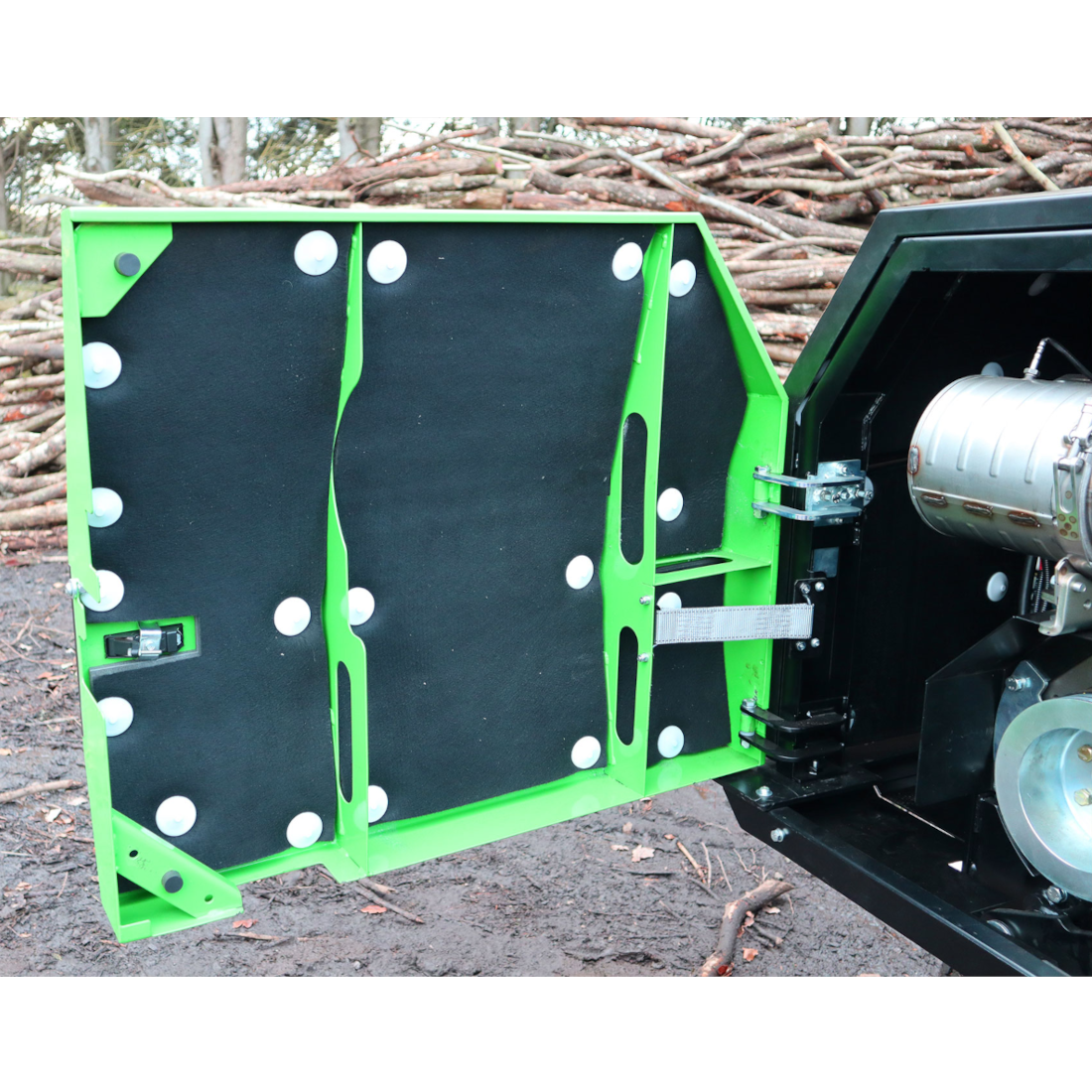

120 DB POWER / 91 DB PRESSURE

• The hinged steel bonnet is lined with noise reduction material which, in combination with the disc blade system, offers one of the quietest wood chippers on the market.

• CAPACITY: 205mm
• ENGINE MAKE: Kubota D 1803-CR-TE4B
• ENGINE OUTPUT: 50hp
• FUEL: Diesel
• CHIPPING FLYWHEEL: Disc Type
• BLADES: 6
• Turntable: Yes (360 degrees)
• HYDRAULIC FEED ROLLERS: Twin Horizontal
• POWER CONTROL: No Stress
• FUEL CAPACITY (ENGINE): 50 Litres
• HYDRAULIC OIL CAPACITY: 50 Litres
• SPARE WHEEL: Standard
• TONNES PER HOUR: 7
• INFEED CHUTE APERTURE: 1250mm x 700mm
• INFEED THROAT SIZE: 205mm x 270mm
• DISCHARGE CHUTE: 280 Degrees Rotation
• HOUR METRE: Standard
• LENGTH (TRANSPORT): 3545mm
• WIDTH (TRANSPORT): 1960mm
• HEIGHT (DISCHARGE CHUTE UP): 2715mm
• WEIGHT: 1760 kg
• SOUND POWER LWA: 120 dB(A)
• SOUND PRESSURE LPA: 91 dB(A)
