GreenMech QuadChip 160D

GreenMech QuadChip 160D

£20,895.25 + VAT (£25,074.30)
+ VAT (£0.00) £20,895.25 + VAT (£25,074.30)
Special Offer Sold out
Shipping calculated at checkout.

QC_160D

Available to Order (Subject to Manufacturer Availability)

Oversized Shipping Rates Apply

View our shipping policy here

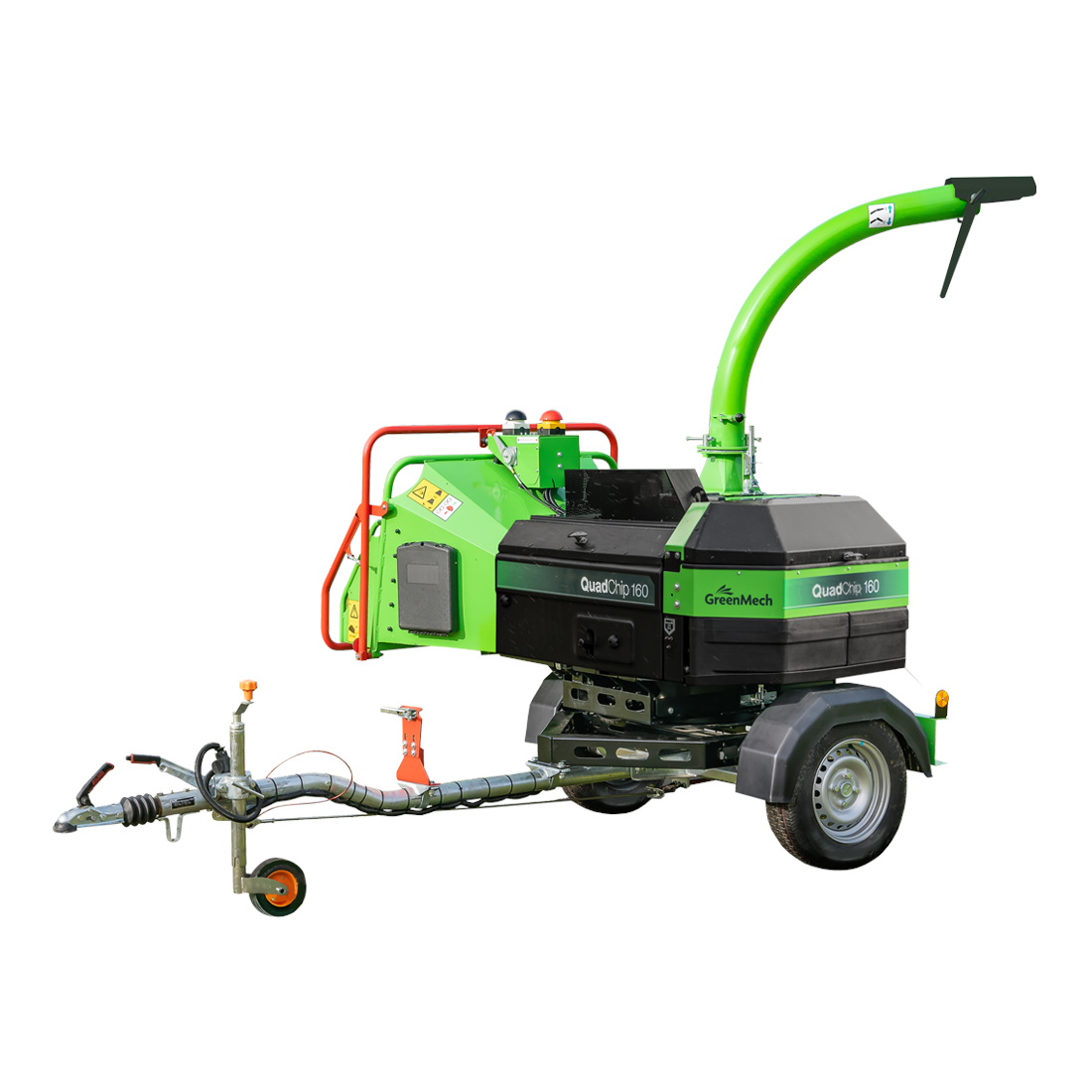

This specialist, road-tow chipper is designed specifically for roadside and highway maintenance contractors. The entire chipper unit can swivel 360 degrees on the chassis, allowing operators to position the in-feed chute away from the roadside, increasing both road and operator safety.

Features

NO-STRESS IN-FEED SYSTEM

  • Provides “no-stress” overload protection, automatic load detection and a range of engine and chipper data to ensure optimum performance.

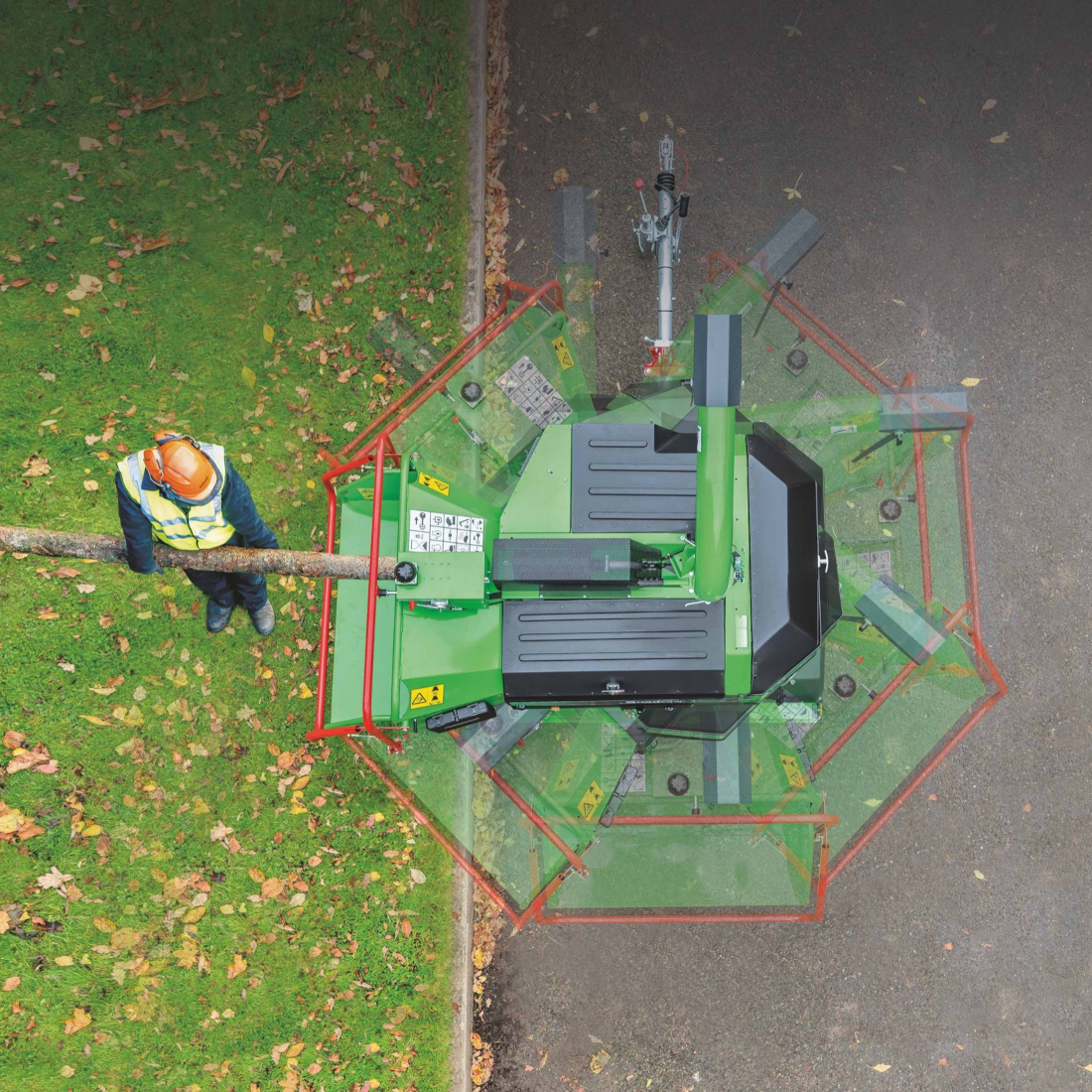

360 DEGREE TURNTABLE

  • No matter what the site restrictions, the entire in-feed and flywheel head can be rotated 360 degrees without moving the wheeled chassis.

DISC-BLADE SYSTEM

  • Comes with the renowned ‘Disc-Blade’ configuration which allows rotation of the cutting edge and extends the sharpening period to only once in approximately 150 hours.

WIDE IN-FEED CHUTE

  • Reduces the time needed with the saw and helps prevent inadvertent triggering of the safety bar when feeding in wide branches.

TWIN VERTICAL HYDRAULIC ROLLERS

  • The twin vertical hydraulic rollers efficiently crush woody material with minimal lateral movement.

116 DB POWER / 92 DB PRESSURE

  • Hinged plastic bonnets lined with noise reduction material, in combination with the disc blade system, offers one of the quietest wood chippers on the market.

Specifications

  • CAPACITY: 160mm
  • ENGINE MAKE: Kubota
  • ENGINE OUTPUT: 25hp
  • FUEL: Diesel
  • TURNTABLE: 360˚ locking at 45˚ increments
  • CHIPPING FLYWHEEL: Disc Type
  • BLADES: 4
  • HYDRAULIC FEED ROLLERS: Twin Horizontal
  • POWER CONTROL: No Stress
  • FUEL CAPACITY (ENGINE): 32 Litres
  • HYDRAULIC OIL CAPACITY: 32 Litres
  • SPARE WHEEL: N/A
  • TONNES PER HOUR: 3.5
  • INFEED CHUTE APERTURE: 1100mm x 800mm
  • INFEED THROAT SIZE: 160mm x 230mm
  • DISCHARGE CHUTE: 280 Degrees Rotation
  • HOUR METRE: Standard
  • LENGTH (TRANSPORT): 3211mm
  • WIDTH (TRANSPORT): 1502mm
  • HEIGHT (DISCHARGE CHUTE UP): 2545mm
  • WEIGHT: 749 kg
  • SOUND POWER LWA: 116 dB(A)
  • SOUND PRESSURE LPA: 92 dB(A)
