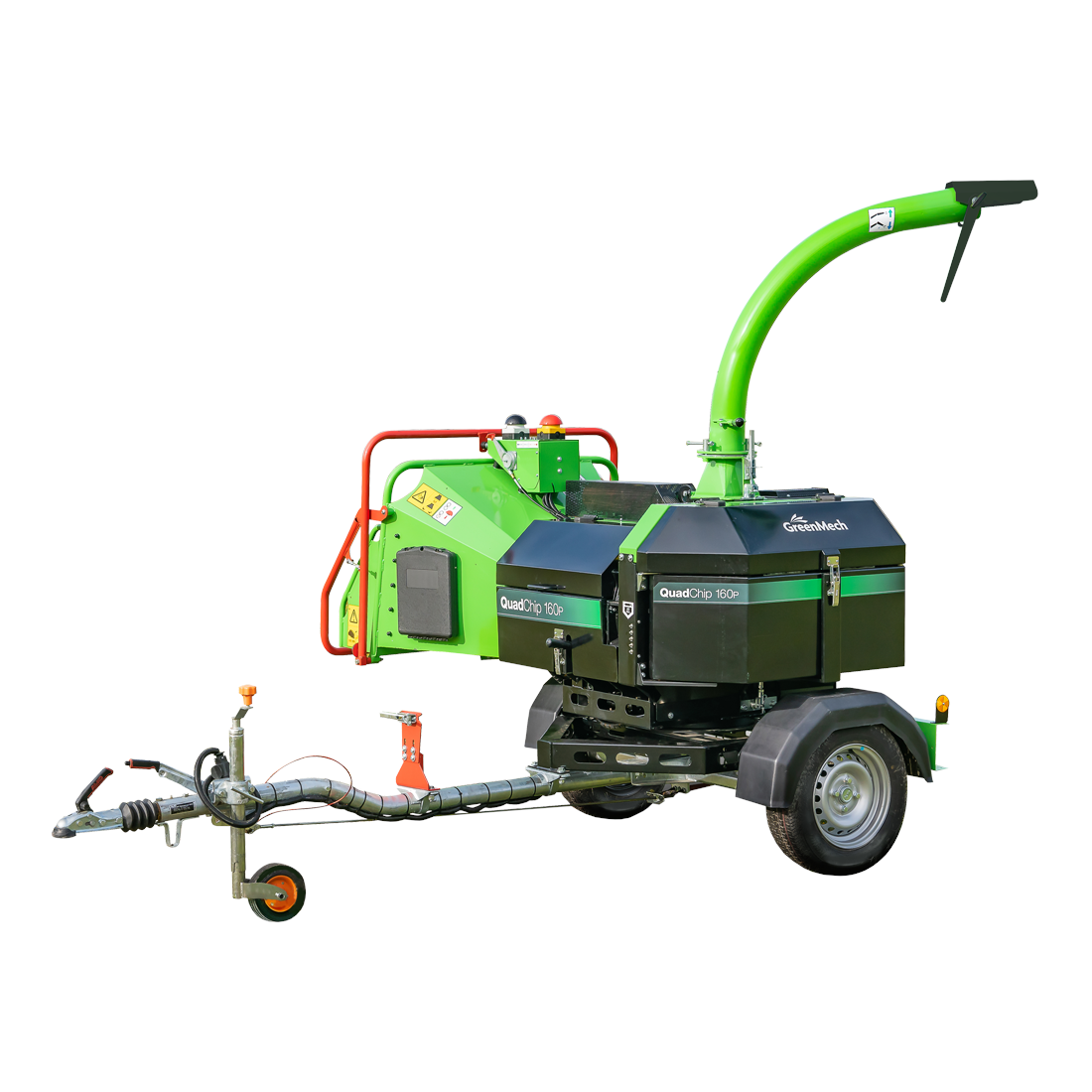

GreenMech QuadChip 160P

NO-STRESS IN-FEED SYSTEM

• Provides “no-stress” overload protection, automatic load detection and a range of engine and chipper data to ensure optimum performance.

360 DEGREE TURNTABLE

• No matter what the site restrictions, the entire in-feed and flywheel head can be rotated 360 degrees without moving the wheeled chassis.

DISC-BLADE SYSTEM

• Comes with the renowned ‘Disc-Blade’ configuration which allows rotation of the cutting edge and extends the sharpening period to only once in approximately 150 hours.

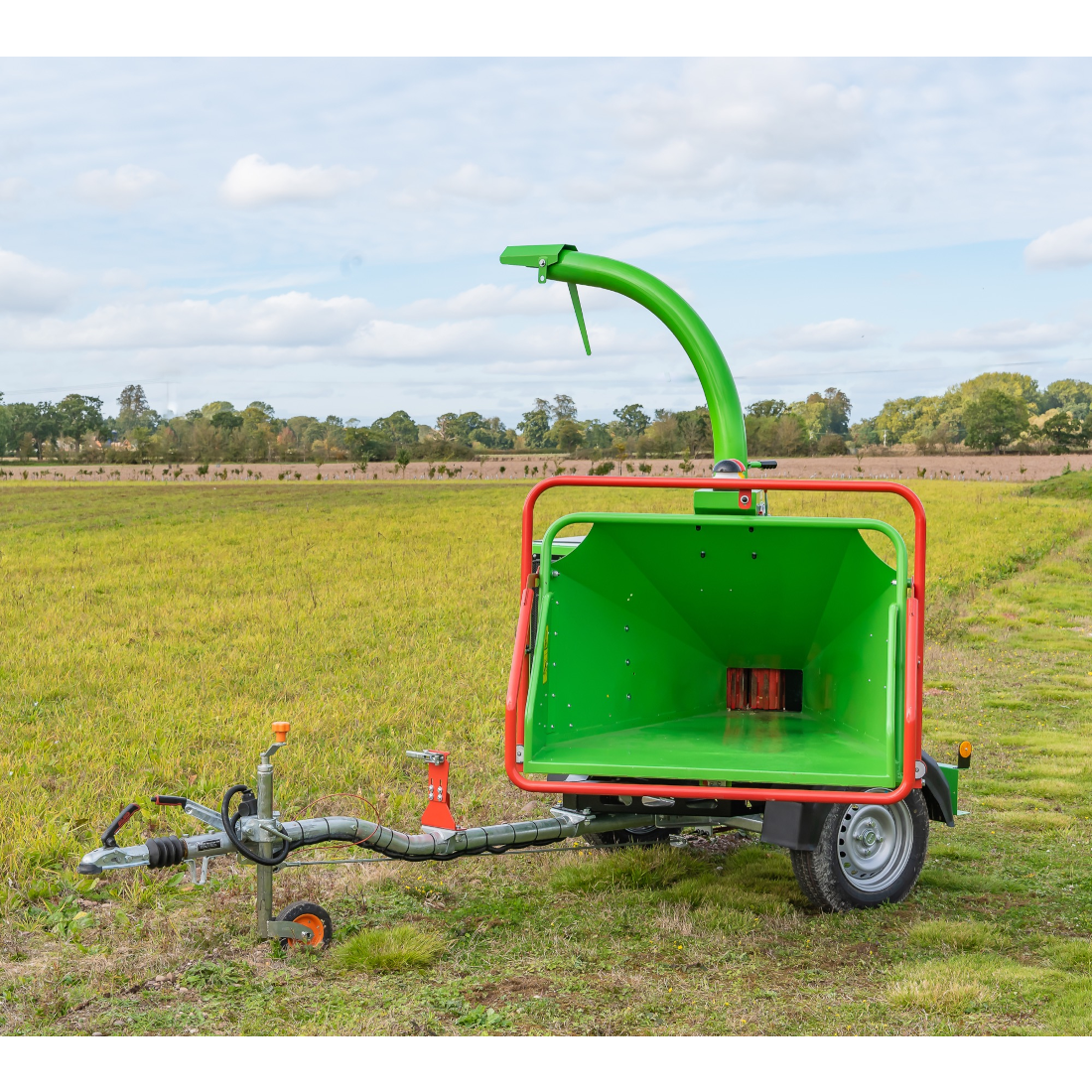

WIDE IN-FEED CHUTE

• Reduces the time needed with the saw and helps prevent inadvertent triggering of the safety bar when feeding in wide branches.

TWIN VERTICAL HYDRAULIC ROLLERS

• The twin vertical hydraulic rollers efficiently crush woody material with minimal lateral movement.

117 DB POWER / 93 DB PRESSURE

• The hinged steel bonnet in combination with the disc blade system, offers one of the quietest wood chippers on the market.

• CAPACITY: 160mm
• ENGINE MAKE: Vanguard
• ENGINE OUTPUT: 37hp
• FUEL: Petrol
• TURNTABLE: 360˚ locking at 45˚ increments
• CHIPPING FLYWHEEL: Disc Type
• BLADES: 4
• HYDRAULIC FEED ROLLERS: Twin Horizontal
• POWER CONTROL: No Stress
• FUEL CAPACITY (ENGINE): 32 Litres
• HYDRAULIC OIL CAPACITY: 32 Litres
• SPARE WHEEL: N/A
• TONNES PER HOUR: 3.5
• INFEED CHUTE APERTURE: 1100mm x 800mm
• INFEED THROAT SIZE: 160mm x 230mm
• DISCHARGE CHUTE: 280 Degrees Rotation
• HOUR METRE: Standard
• LENGTH (TRANSPORT): 3211mm
• WIDTH (TRANSPORT): 1502mm
• HEIGHT (DISCHARGE CHUTE UP): 2545mm
• WEIGHT: 749 kg
• SOUND POWER LWA: 117 dB(A)
• SOUND PRESSURE LPA: 93 dB(A)
