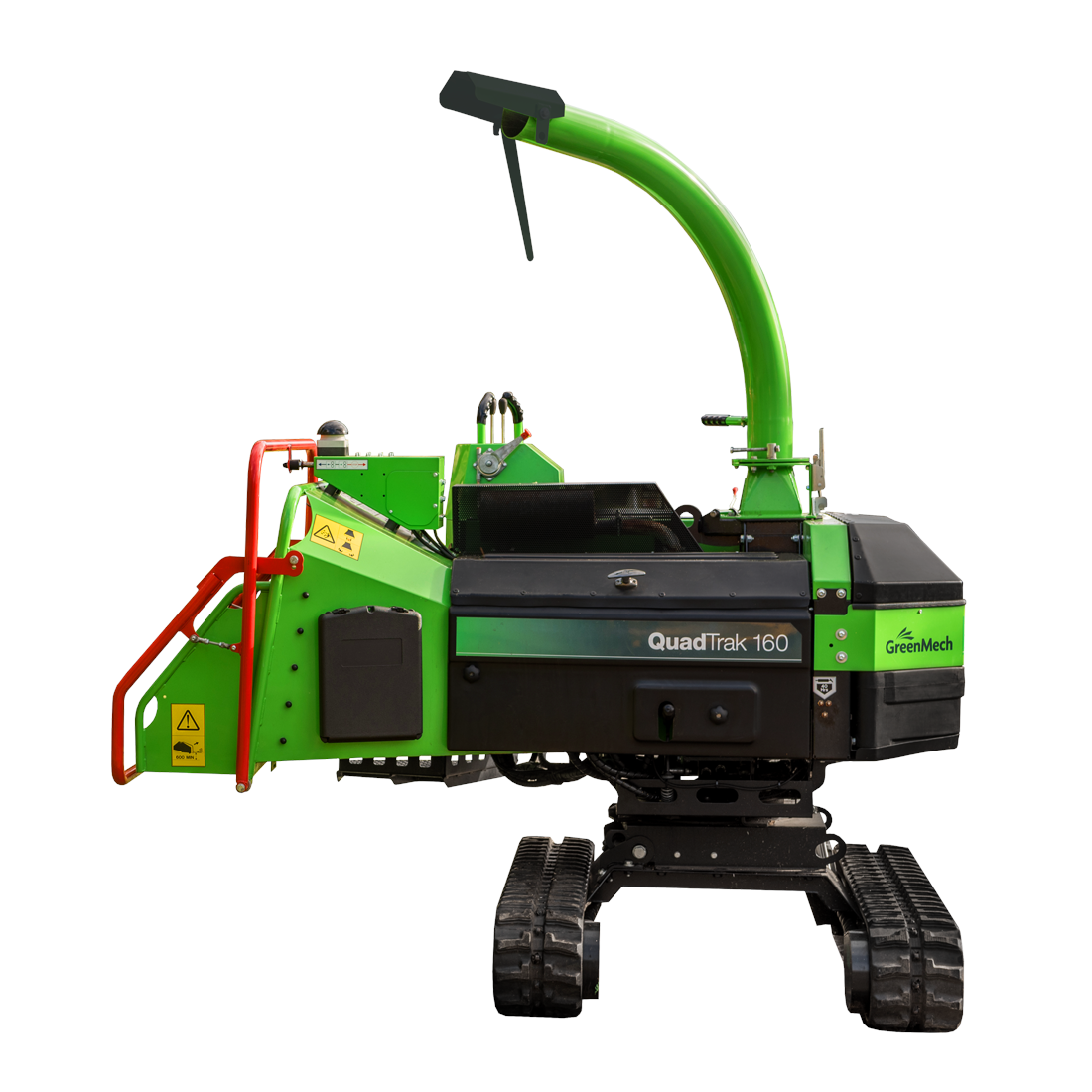

GreenMech QuadTrak 160D

GreenMech QuadTrak 160D

£31,972.25 + VAT (£38,366.70)
+ VAT (£0.00) £31,972.25 + VAT (£38,366.70)
Special Offer Sold out
Shipping calculated at checkout.

QT_160D

Available to Order (Subject to Manufacturer Availability)

Oversized Shipping Rates Apply

View our shipping policy here

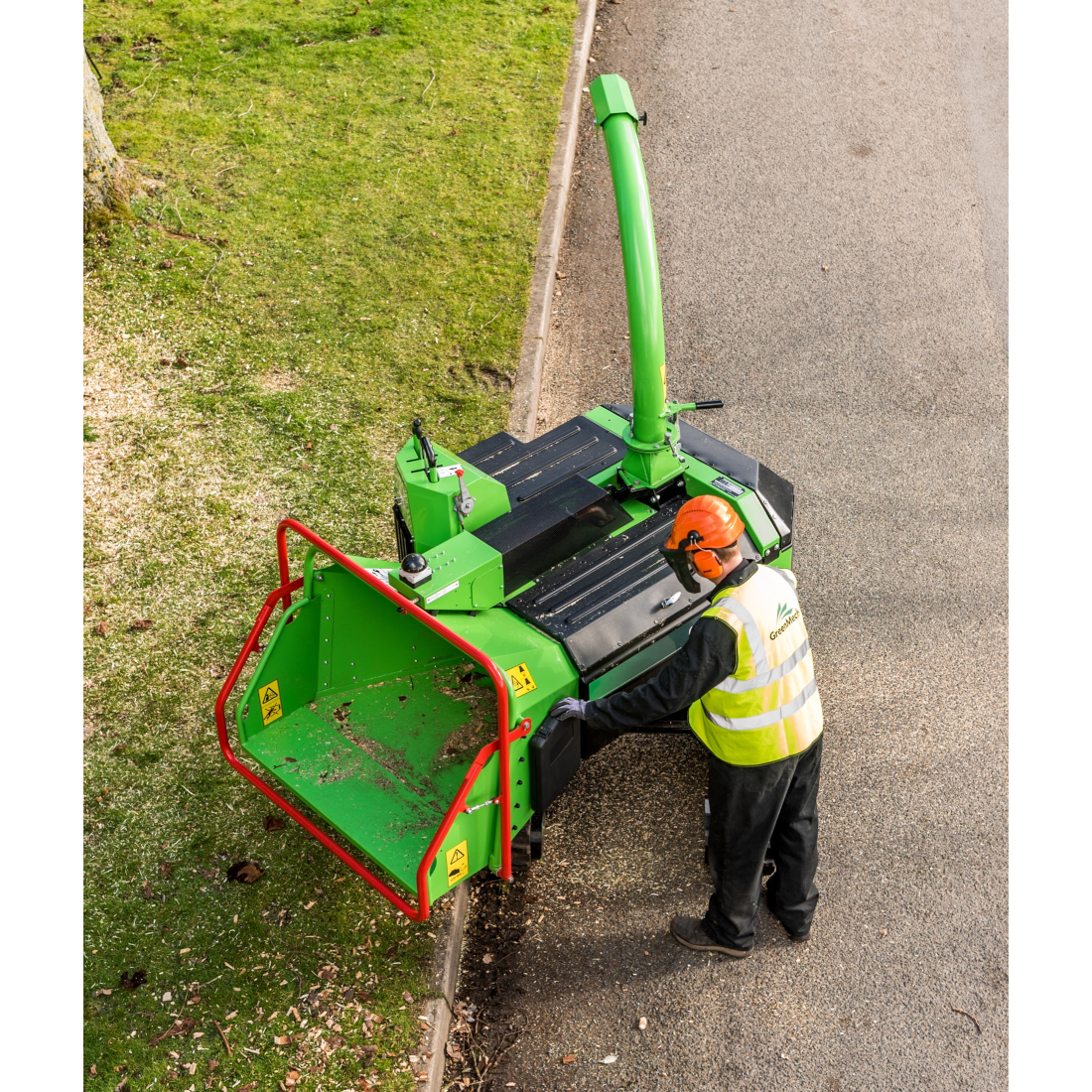

This specialist, tracked chipper, like the road-tow QuadChip 160D, is designed specifically for roadside and highway maintenance contractors. As the entire chipper unit can swivel 270 degrees on the chassis, operators can position the in-feed chute away from the roadside, so improving road and operator safety.

Features

NO-STRESS IN-FEED SYSTEM

  • Provides “no-stress” overload protection, automatic load detection and a range of engine and chipper data to ensure optimum performance.

270 DEGREE TURNTABLE

  • No matter what the site restrictions are, the entire in-feed and flywheel head can be rotated 270 degrees without moving the track base.

TILT SYSTEM

  • Able to tilt the track underbelly to make it more usable when working on banks, side-lands and cuttings up to 30 degrees..

WIDE IN-FEED CHUTE

  • Reduces the time needed with the saw and helps prevent inadvertent triggering of the safety bar when feeding in wide branches.

TWIN VERTICAL HYDRAULIC ROLLERS

  • The twin vertical hydraulic rollers efficiently crush woody material with minimal lateral movement.

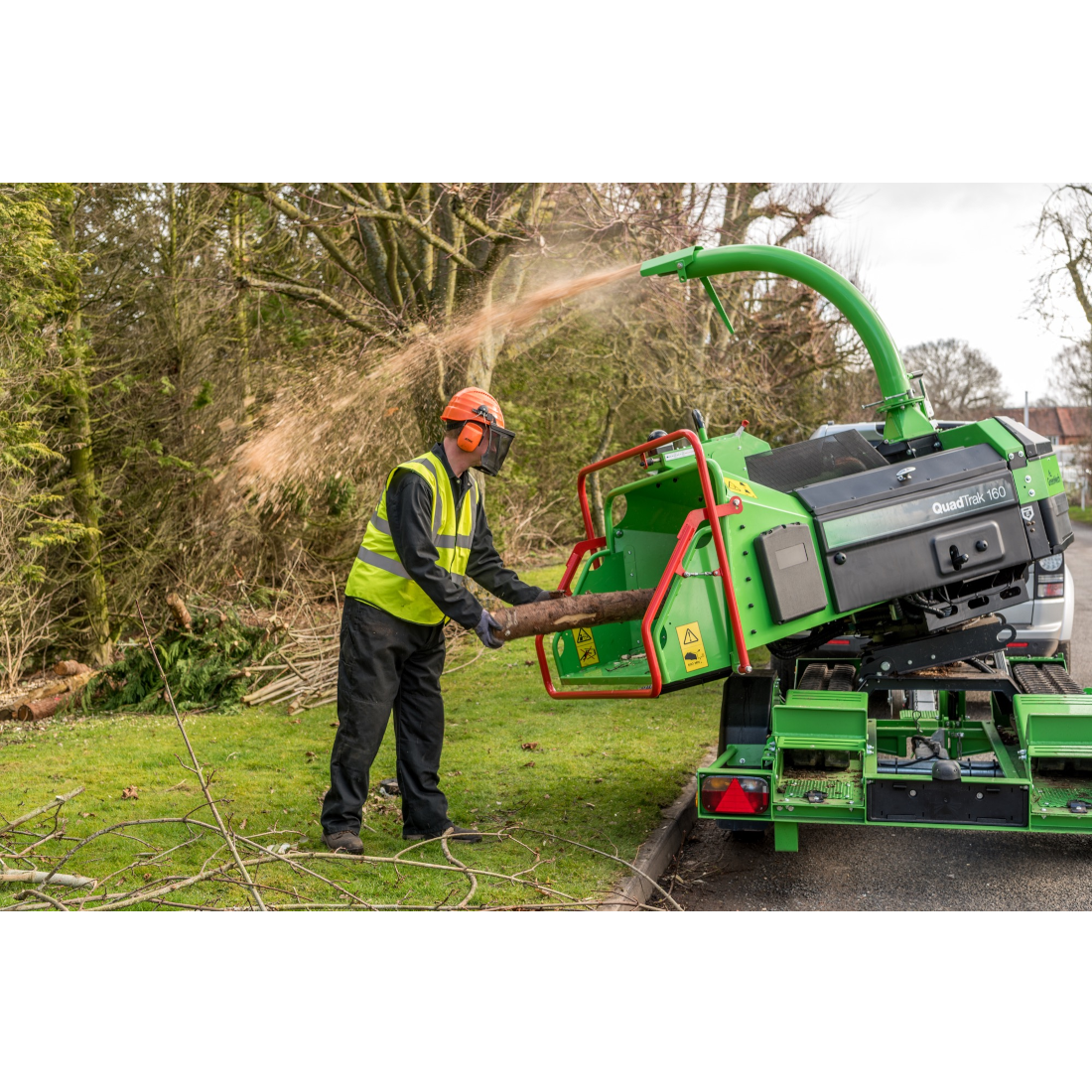

OPTIONAL DEDICATED TRAILER

  • Optional integrated trailer for safe and simple loading and it’s possible to use the machine whilst still mounted on the trailer.

Specifications

  • CAPACITY: 160mm
  • ENGINE MAKE: Kubota
  • ENGINE OUTPUT: 25hp
  • FUEL: Diesel
  • TURNTABLE: 270˚ locking at 45˚ increments
  • GROUND CLEARANCE: 240mm
  • TRACK SPEED: 3kph
  • CHIPPING FLYWHEEL: Disc Type
  • BLADES: 4
  • HYDRAULIC FEED ROLLERS: Twin Horizontal
  • POWER CONTROL: No Stress
  • FUEL CAPACITY (ENGINE): 32 Litres
  • HYDRAULIC OIL CAPACITY: 32 Litres
  • SPARE WHEEL: N/A
  • TONNES PER HOUR: 3.5
  • INFEED CHUTE APERTURE: 1100mm x 800mm
  • INFEED THROAT SIZE: 160mm x 230mm
  • DISCHARGE CHUTE: 280 Degrees Rotation
  • HOUR METRE: Standard
  • LENGTH (TRANSPORT): 2368mm
  • WIDTH (TRANSPORT): 1366mm
  • HEIGHT (DISCHARGE CHUTE UP): 2487mm
  • CRAWLER/TRACK DRIVE (L x W x H): 1447mm (1146mm) x 230mm x 306mm
  • CRAWLER/TRACK DRIVE (WIDTH): Outside: 1171mm / Inside: 711mm
  • WEIGHT: 1100 kg
  • SOUND POWER LWA: 116 dB(A)
  • SOUND PRESSURE LPA: 92 dB(A)
