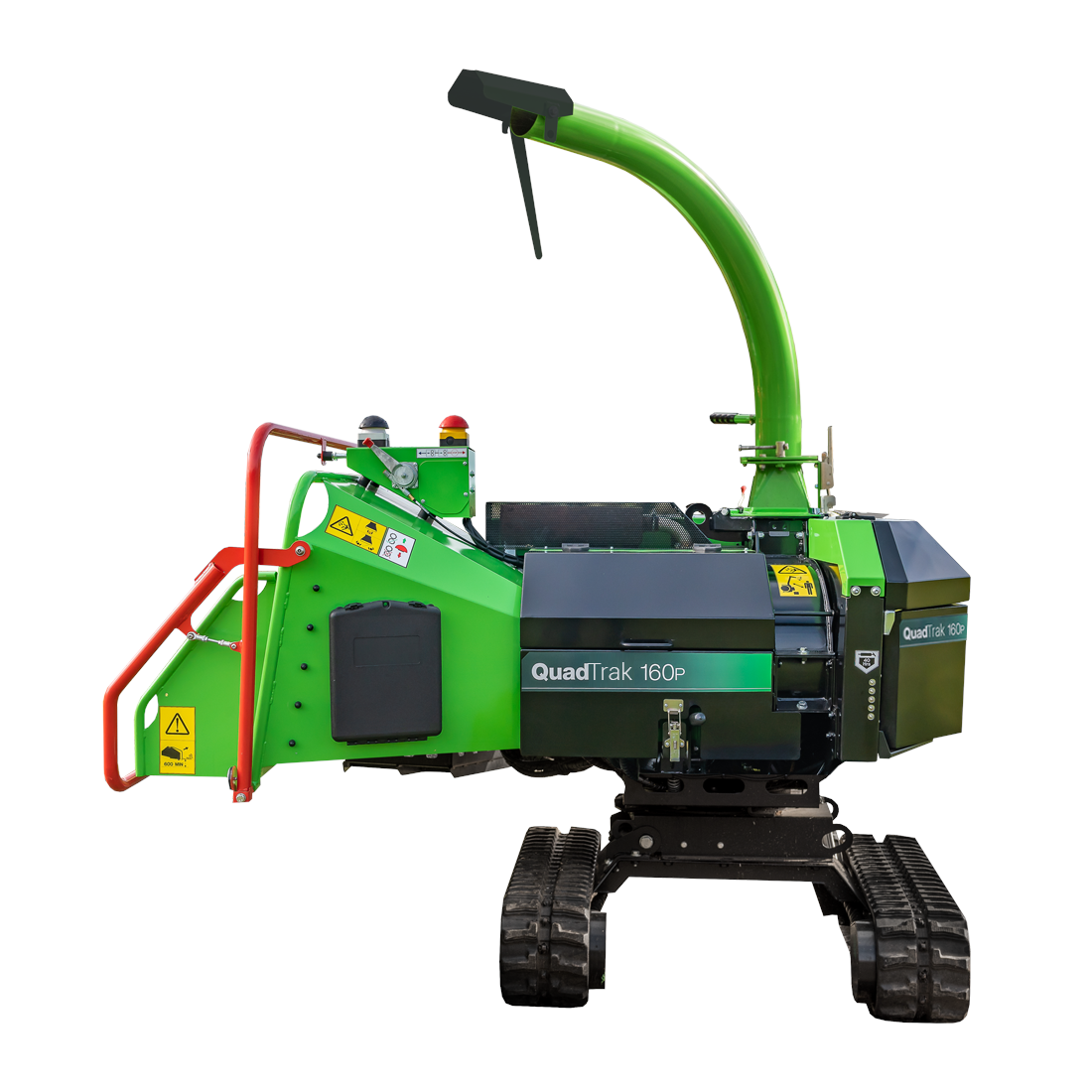

GreenMech QuadTrak 160P

This specialist, tracked chipper, like the road-tow QuadChip 160P, is designed specifically for roadside and highway maintenance contractors. As the entire chipper unit can swivel 270 degrees on the chassis, so that operators can position the in-feed chute away from the roadside, so improving road and operator safety. This is a hungry machine, powered by the 37hp B&S Vanguard petrol engine and has an additional feature of being able to tilt the track underbelly to make it more usable when working on banks, side-lands and cuttings up to 30 degrees. It also comes with its own integrated trailer for safe and simple loading and it’s possible to use the machine whilst still mounted on the trailer.

The backbone of the QuadTrak 160P design is based on a deep beam, high tensile steel chassis which creates tremendous strength and ensures a robust performance. A generous in-feed hopper, measuring 800mm x 700mm (31inch x 27inch), means that free-flow of bulky material can be handled without having to trim to a more manageable size. As the material passes through 160mm x 230mm twin, vertical feed rollers, the electronically controlled ‘No-Stress’ feed system varies the speed of throughput to ensure maximum chipping efficiency.

The chipping system comes with the renowned ‘Disc-Blade’ configuration which allows rotation of the cutting edge and extends the sharpening period to only once in approximately 150 hours. This is a feature that reduces downtime, cuts maintenance and maximises working performance.

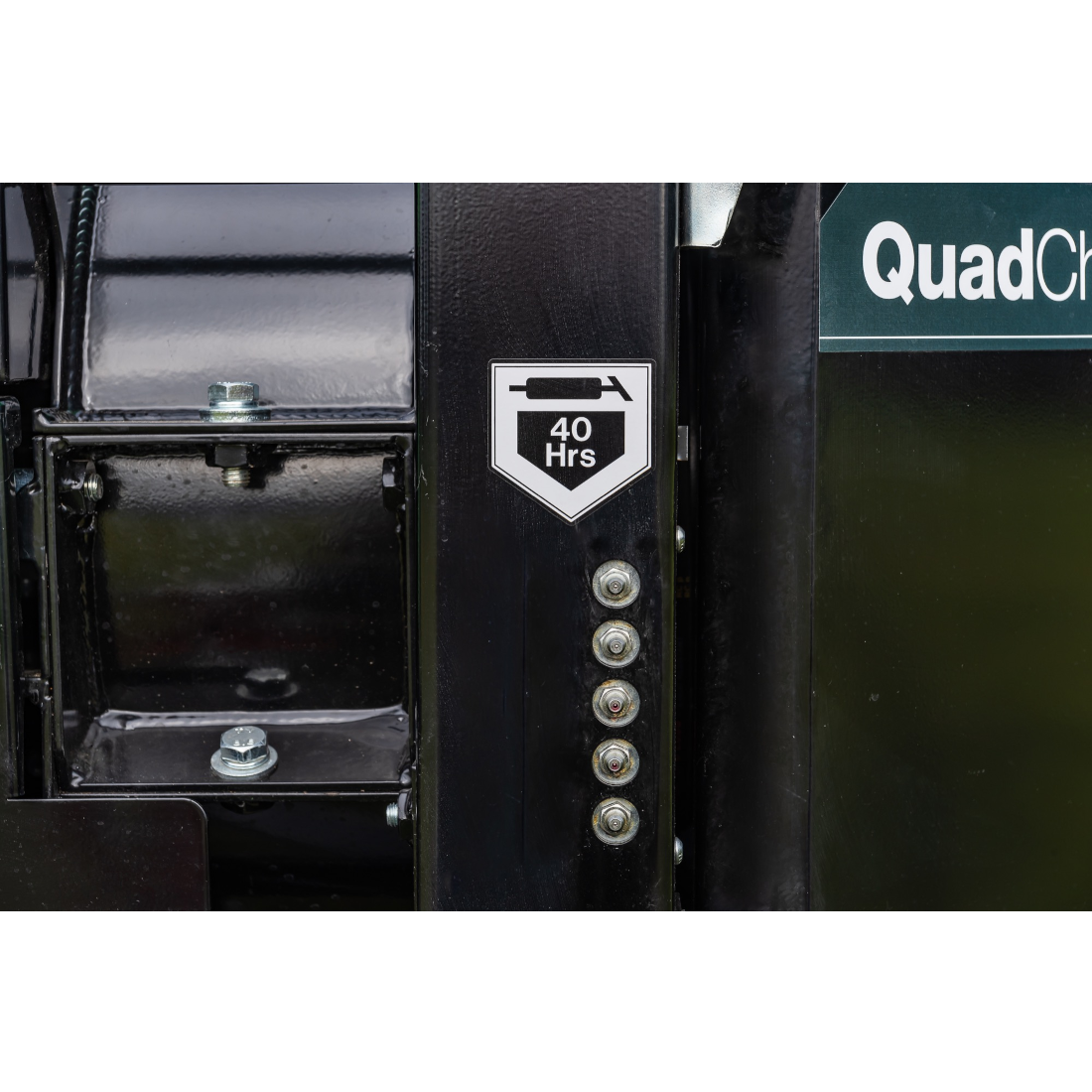

Maintenance is minimal, with centralised grease points and a daily check-over. Apart from that, your chipper is ready to go!
